Ricoh MP 2014AD - Exposure Glass Unit

Scanner Unit
SM 4-23 D245/D246/D247
Replacement
and Adjustment

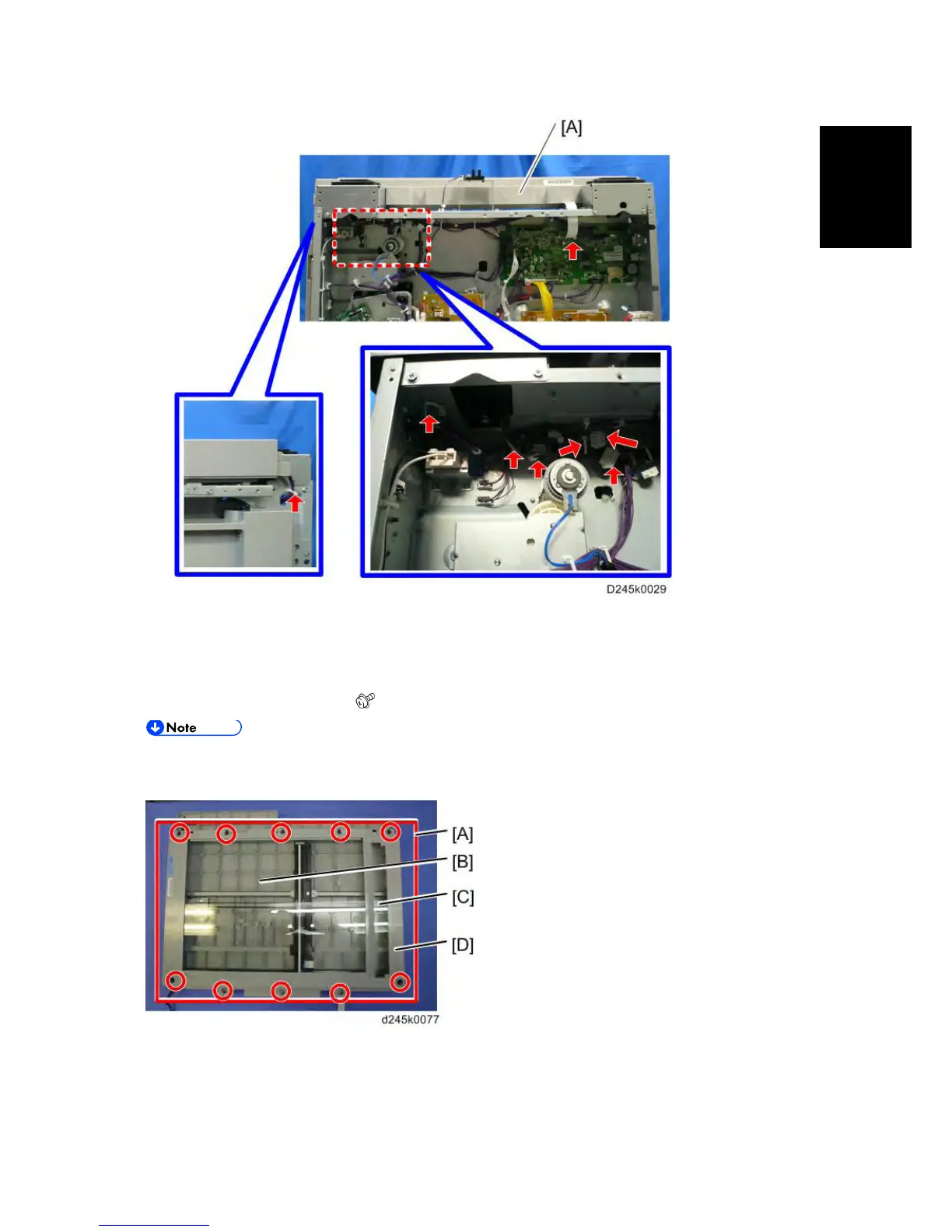

4.6.3 EXPOSURE GLASS UNIT
1. Top rear cover (page 4-21)
2. Exposure glass unit [A] (
x 10)
 Exposure glass [B], DF exposure glass [C] and cover [D] are all in one unit.
 Do not disassemble this unit into the individual parts.
