ADF Unit
SM 4-19 D245/D246/D247
Replacement
and Adjustment

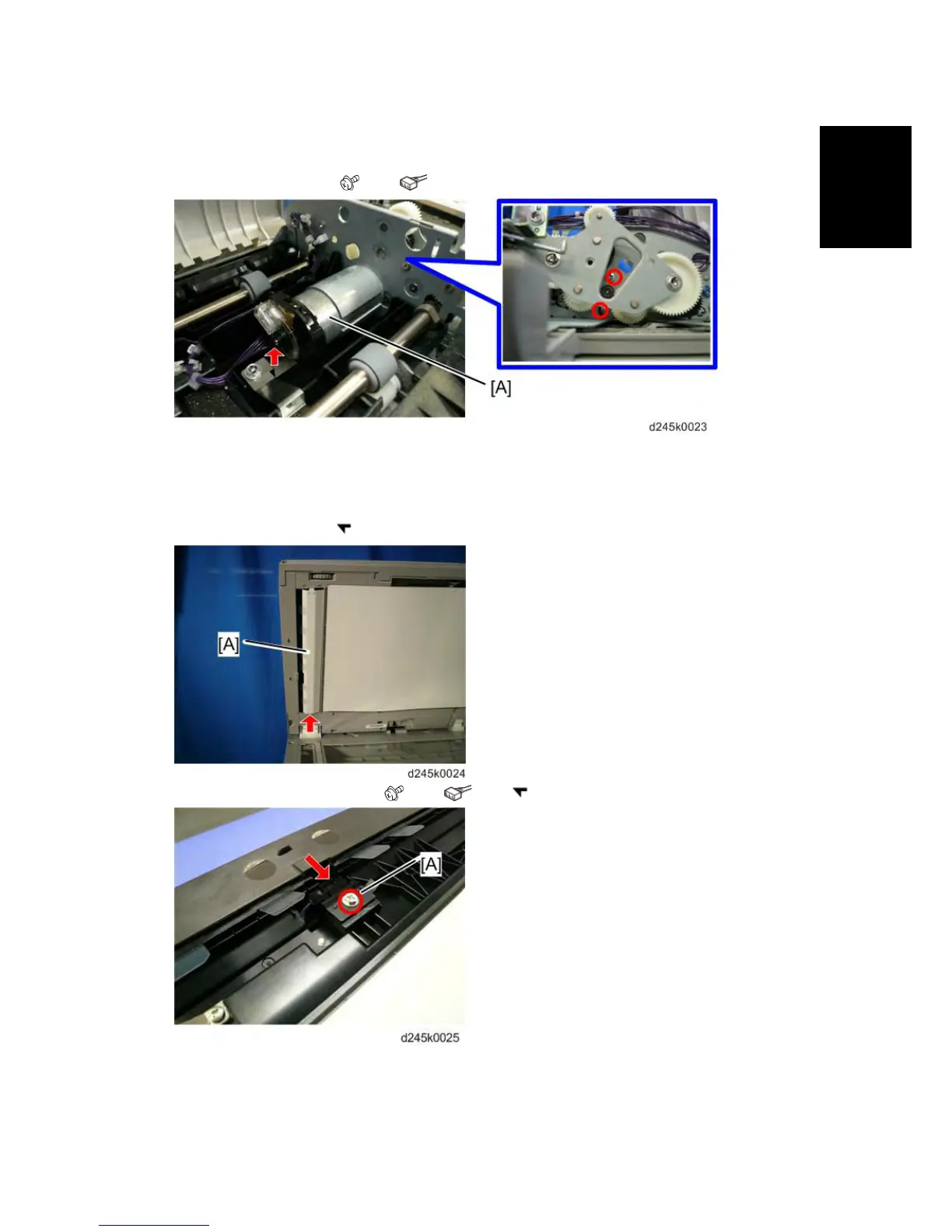

4.4.12 ADF MOTOR
1. ADF feed roller (page 4-17)
2. ADF main motor [A] (
x 2, x 1)
4.4.13 ADF REGISTRATION SENSOR
1. Open the ADF unit.
2. White plate guide [A] (
x 1)
3. ADF registration sensor [A] (
x 1, x 1, x 1)
