Ricoh MP 2014AD - By-Pass Paper Feed Roller and By-Pass Paper End Sensor

Paper Feed Section
SM 4-52 D245/D246/D247
4.12.8 BY-PASS PAPER FEED ROLLER AND BY-PASS PAPER END
SENSOR
1. Right rear cover (page 4-5)
2. By-pass tray (page 4-51)
3. Rear cover (page 4-6)
4. By-pass paper feed clutch (page 4-66)
5. Open the right door.

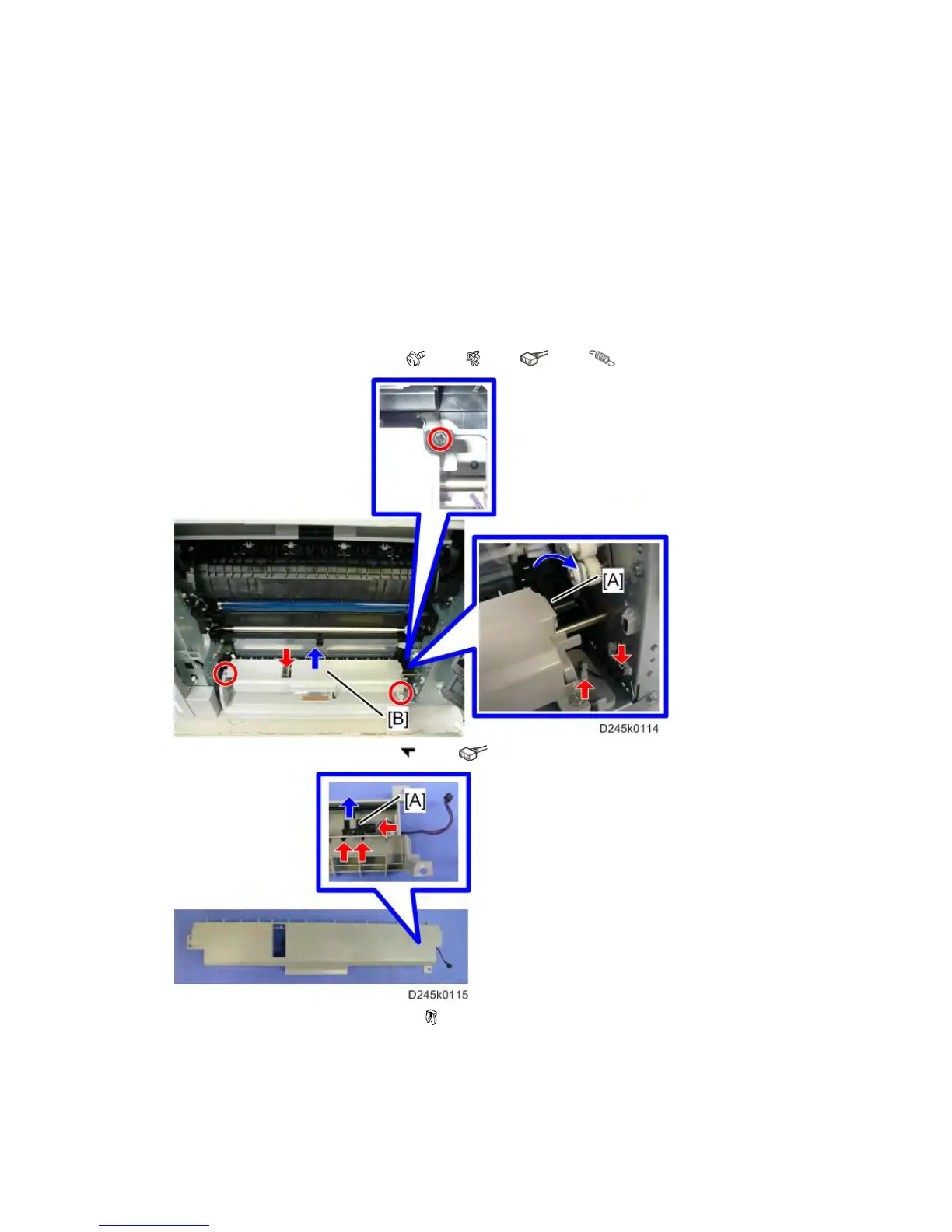

6. Arm [A]
7. By-pass tray upper section [B] (
x 3, x 1, x 1, x 1)
8. By-pass paper end sensor [A] ( x 2, x 1)
9. By-pass paper feed roller unit [A] (
x 2)
