Ricoh MP 2014AD - Registration: Platen Mode; Scanning

Adjustment after Replacement
SM 4-71 D245/D246/D247
Replacement
and Adjustment
4.15.2 SCANNING
 Before doing the following scanner adjustments, perform or check the printing registration
/side-to-side adjustment and the blank margin adjustment.
 Use an S5S test chart to perform the following adjustments.

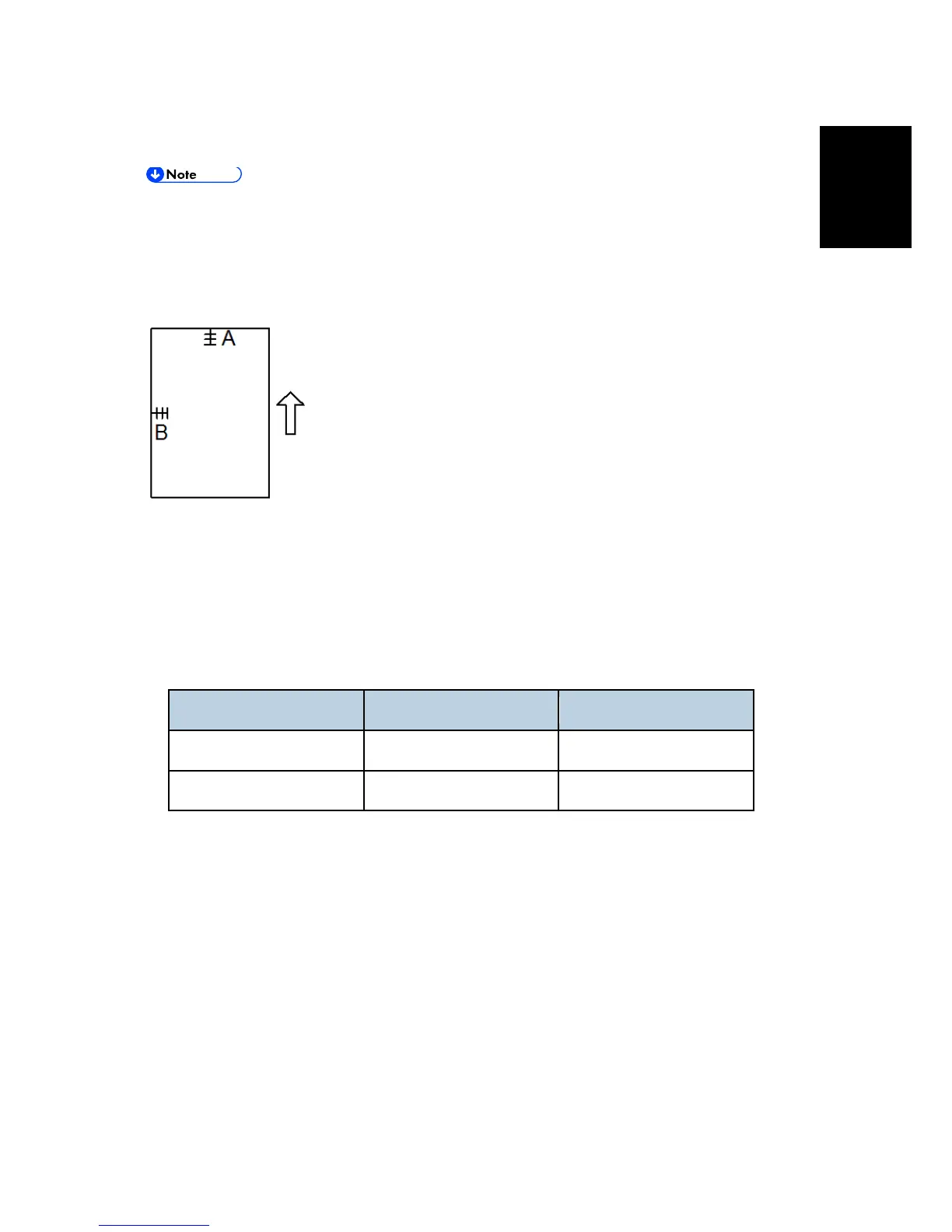

Registration: Platen Mode
A: Leading edge registration (L-Edge Regist Adj)
B: Side-to-side registration (S-Edge Regist Adj)
1. Place the test chart on the exposure glass and make a copy from one of the feed
stations.
2. Check the leading edge and side-to-side registration, and adjust them using the
following SP modes if necessary.
SP No. SP Name Adjustment Range
SP4-010-001 L-Edge Regist Adj ±2.0 mm
SP4-011-001 S-Edge Regist Adj ±2.0 mm
