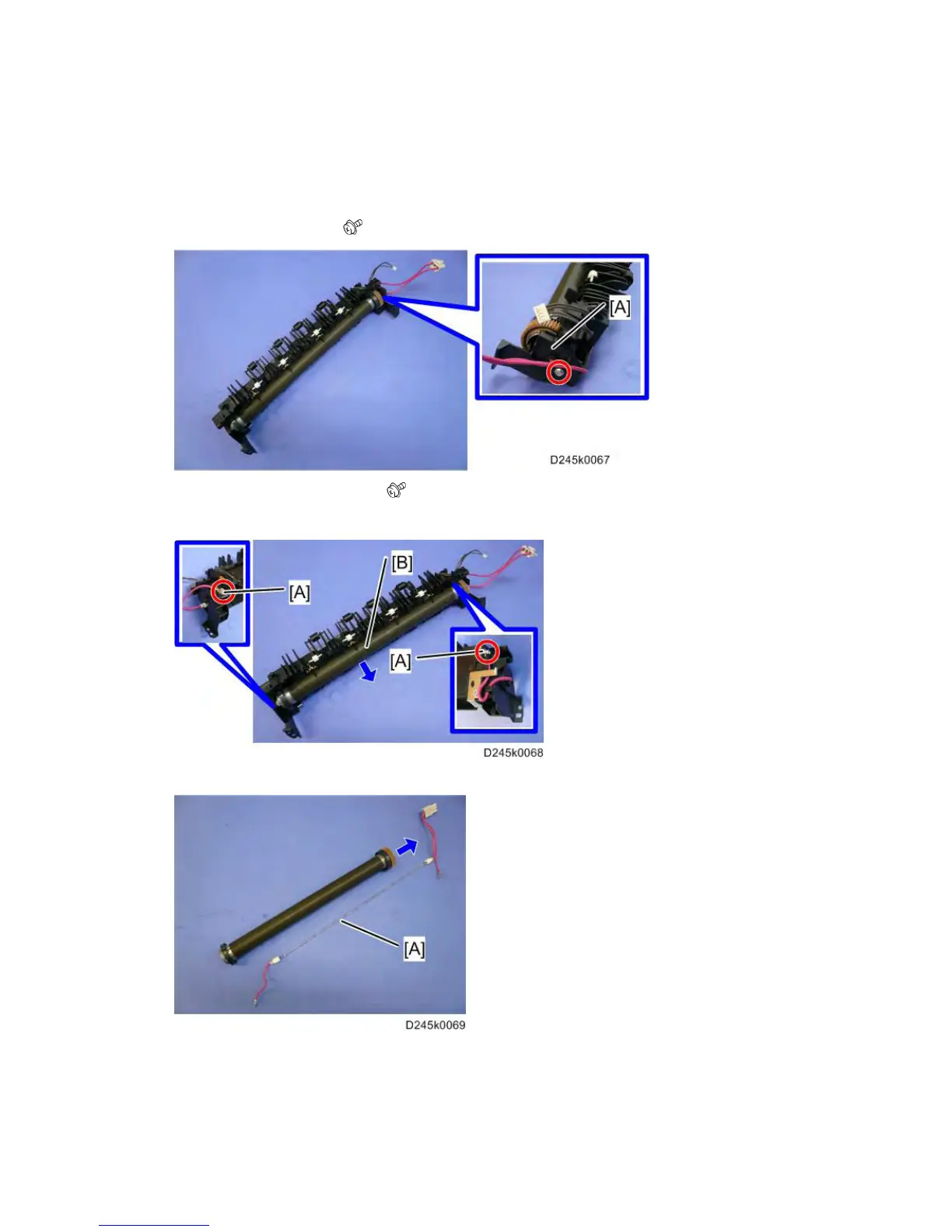

4.10.5 FUSING LAMP
1. Fusing unit (page 4-39)
2. Pressure roller section (page 4-40)
3. Rear holding plate [A] (
x 1)
4. Fusing lamp connectors [A] ( x 2)
5. Hot roller unit [B]
6. Pull out the fusing lamp [A] from hot roller unit.
