Ricoh MP 2014AD - Friction Pad

Paper Feed Section
SM 4-48 D245/D246/D247

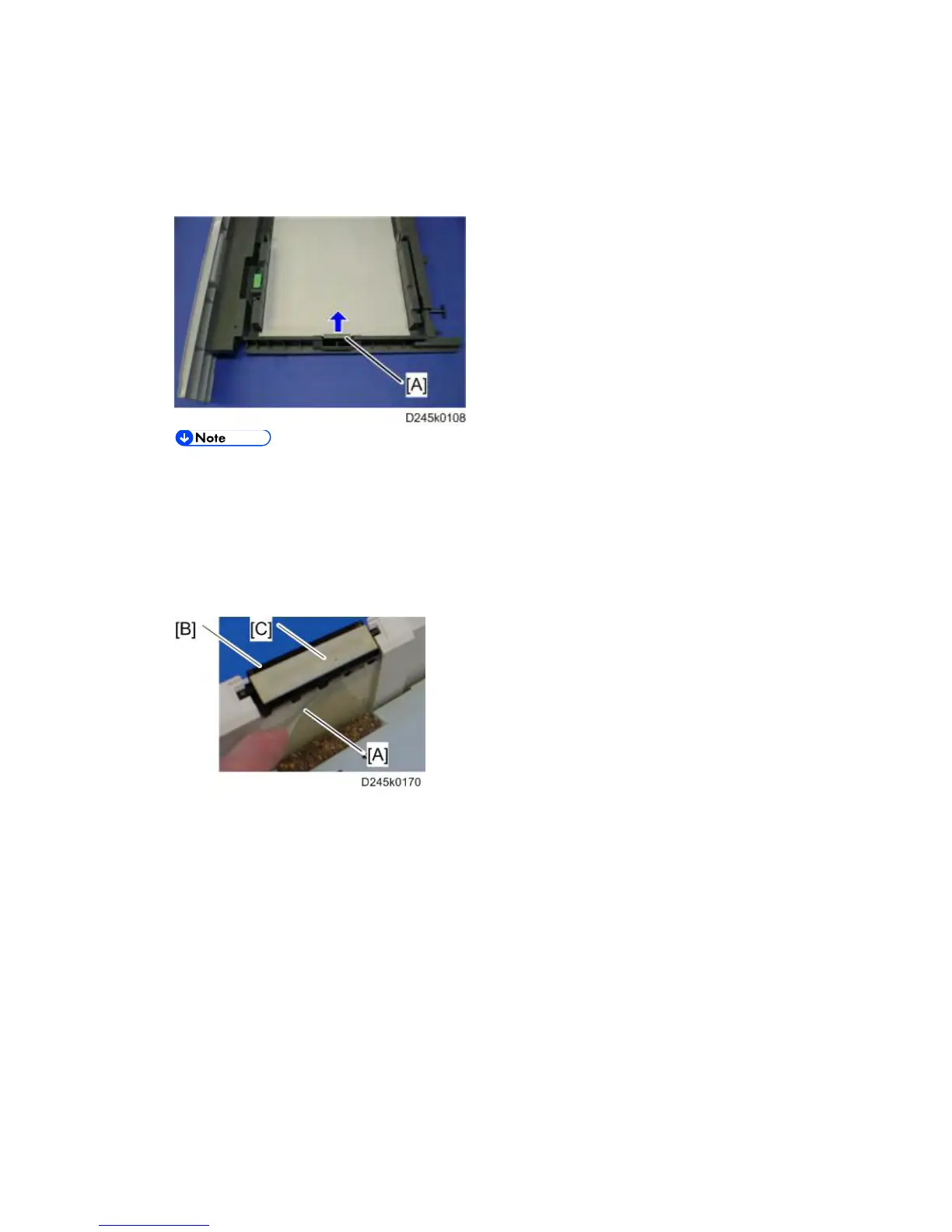

4.12.2 FRICTION PAD
1. Paper tray 1 (page 4-2)
2. Friction pad [A]
 When replacing the friction pad
 Make sure that the mylar [A] does not go under the friction pad [B] when reinstalling
the friction pad [B].
 Do not touch the upper surface [C] of the friction pad [B] with your bare hands when
replacing it. If you do, clean the upper surface [C] of the friction pad [B] with a damp
cloth or alcohol.
