Ricoh MP 2014AD - Transport Motor

Motors and Clutch
SM 9 D3B1
PAPER FEED
UNIT PB2020
(D3B1)
1.2.2 TRANSPORT MOTOR
1. Paper tray (page 1)
2. Rear cover (page 1)
3. Open the right door (page 5).

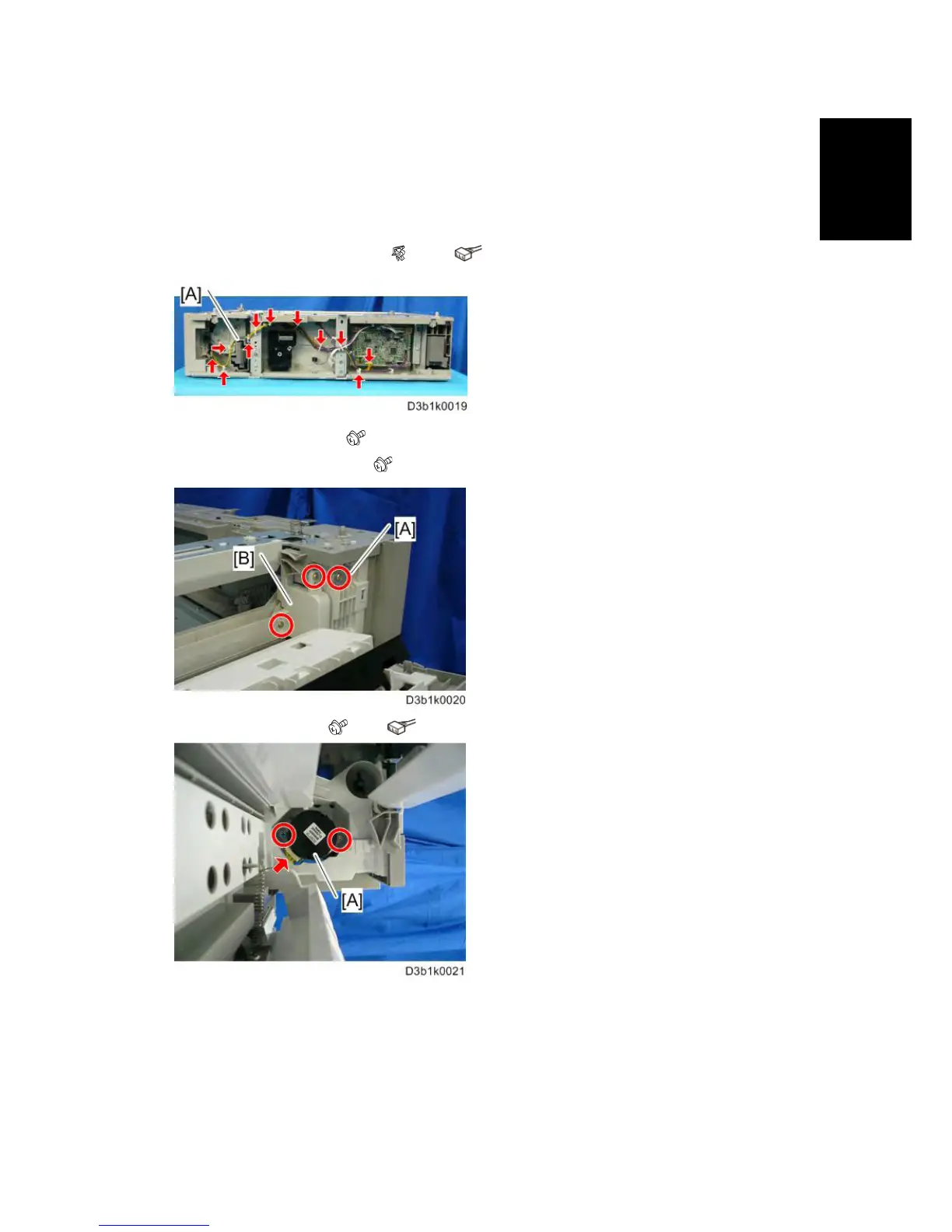

4. Transport motor harness [A] (
x 10, x 1)
5. Right door bracket [A] (
x 1)
6. Transport motor cover [B] (
x 2)
7. Transport motor [A] (
x 2, x 1)
