Ricoh MP 2014AD - Adf Feed Roller

ADF Unit
SM 4-17 D245/D246/D247
Replacement
and Adjustment
4.4.11 ADF FEED ROLLER
1. ADF unit (page 4-9)
2. ADF front cover (page 4-10)
3. ADF rear cover (page 4-11)
4. Document table (page 4-12)
5. Original feed unit (page 4-13)

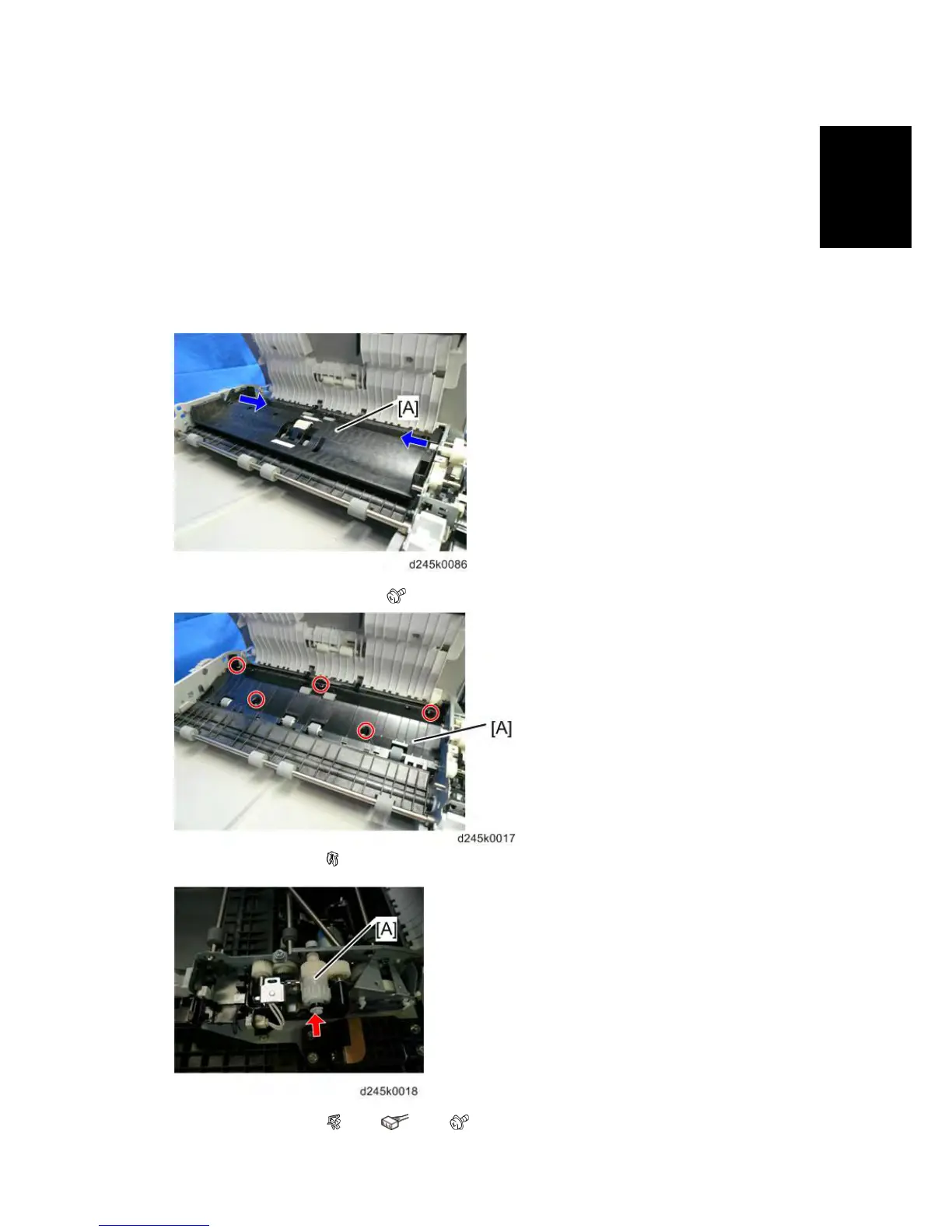

6. Original feed-in guide plate[A]
7. Original turn guide plate [A] (
x 5)
8. ADF feed clutch [A] (
x 1)
9. Harness guide [A] ( x 5, x 4, x1)
