Ricoh MP 2014AD - Charge Roller and Cleaning Brush

PCDU Section
SM 4-33 D245/D246/D247
Replacement
and Adjustment

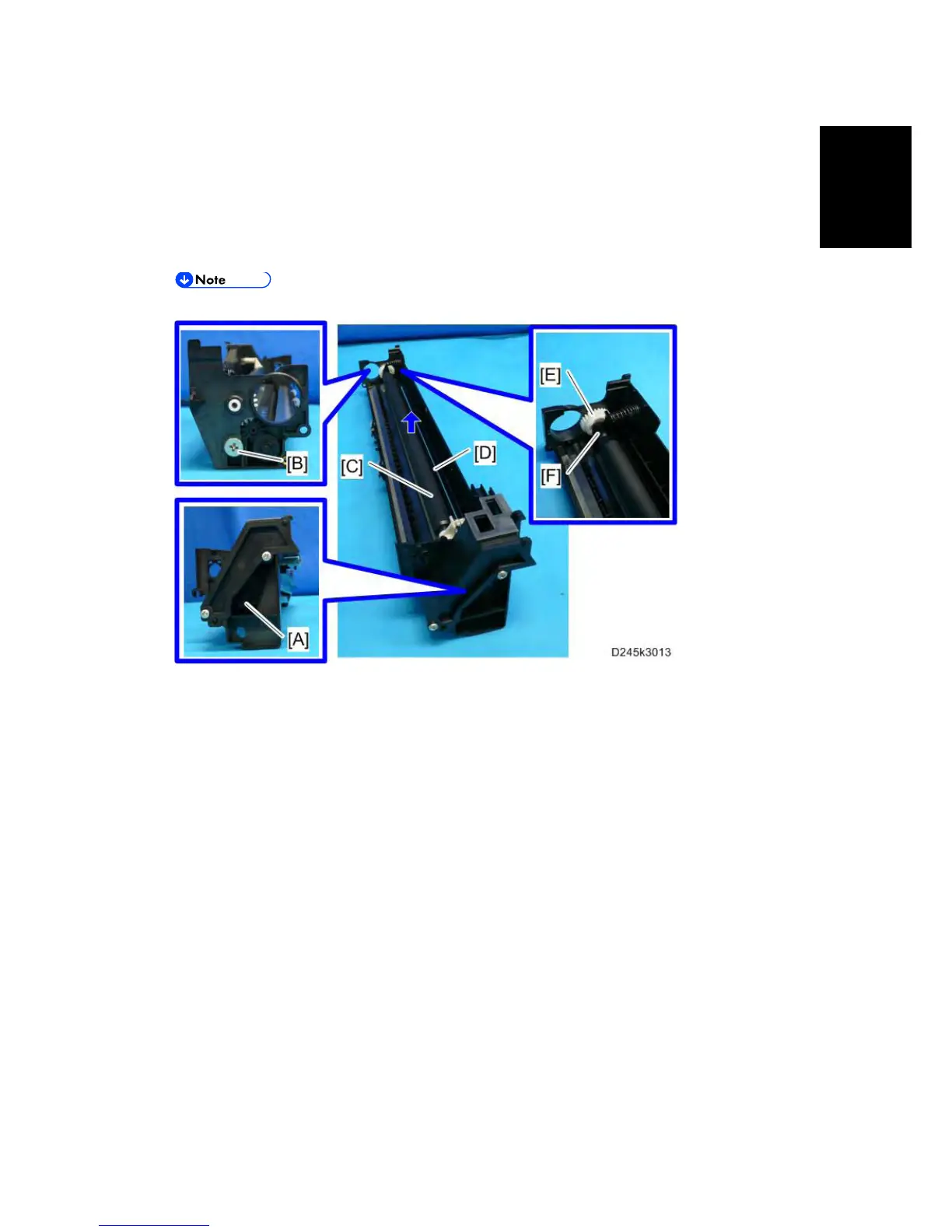

4.8.5 CHARGE ROLLER AND CLEANING BRUSH
1. OPC drum (page 4-31)
2. Holding pin [A]
3. Stepped screw [B]
4. Charge roller [C] and cleaning brush [D] (with the holders and springs)
 Turn the gear [E] (as necessary) so that the rear holder [F] comes out.
5. When reassembling, adjust the image quality (page 4-37).
