Ricoh MP 2014AD - ID Sensor

Duplex Unit
SM 4-57 D245/D246/D247
Replacement
and Adjustment

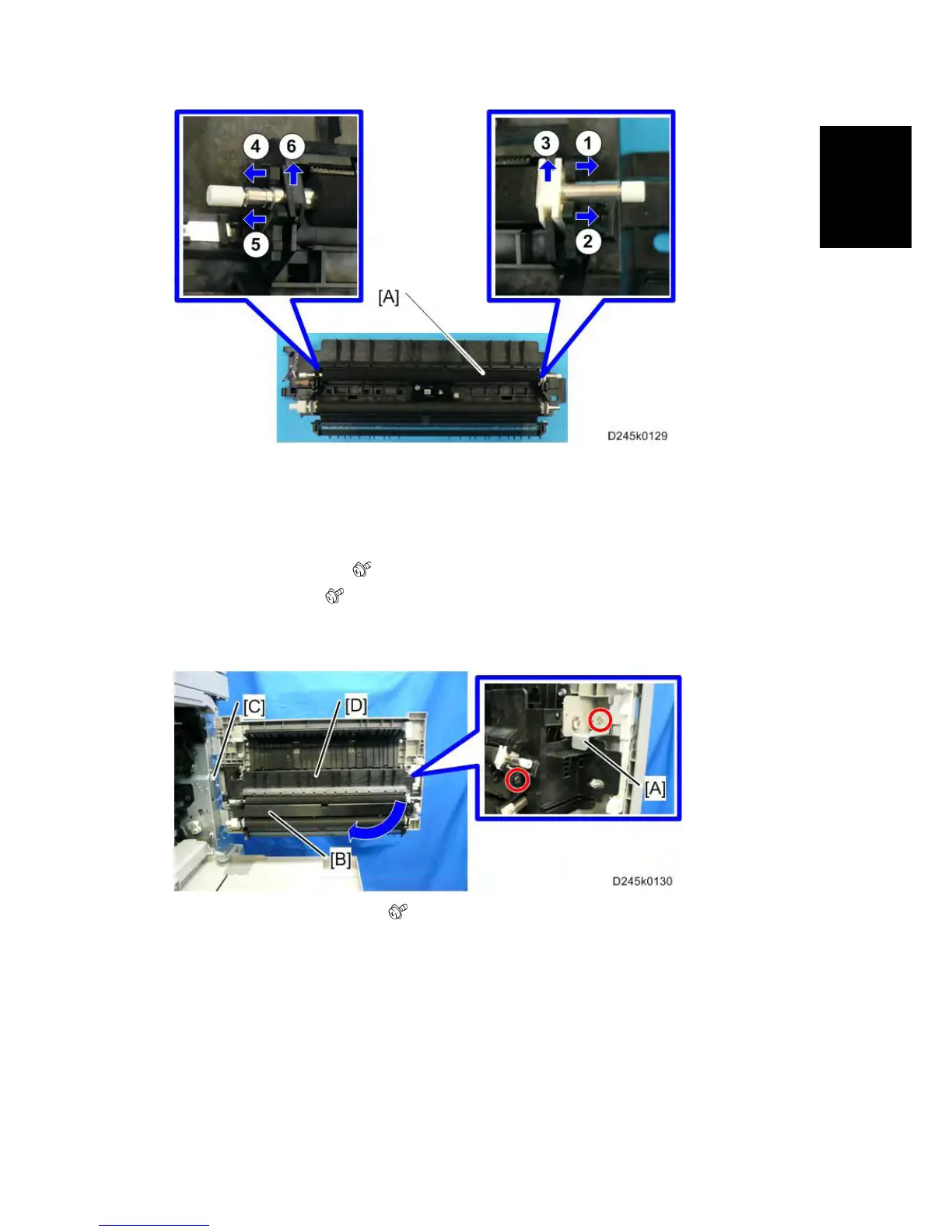

4.13.4 ID SENSOR
1. Right rear cover (page 4-5)
2. Open the right door.
3. Duplex unit bracket [A] (
x 1)
4. ID sensor cover [B] (
x 1)
5. Sensor connector [C]
6. Open the transfer guide unit [D].
7. ID sensor harness cover [A] ( x 1)
