and Adjustment

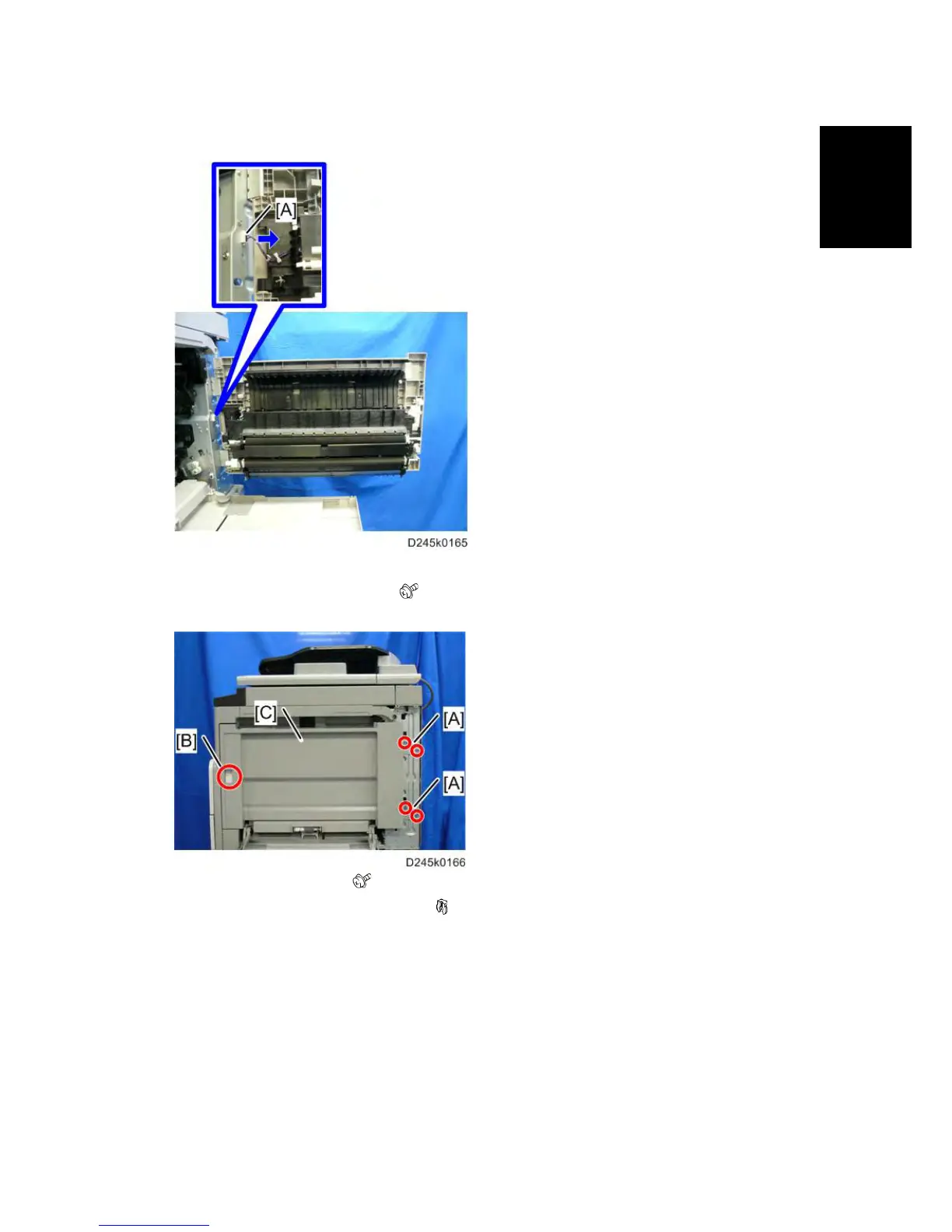

3. ID sensor connector [A]
4. Close the right door.
5. Right door hinge brackets [A] (
x 4)
6. Press the button [B] to remove the right door [C].
7. Duplex unit bracket [A] (
x 1)
8. Slide the right door hinge shaft [B] (
x 1).
9. Transfer guide unit [C]
To Next Page
