Covers and Roller
D3B1 6 SM

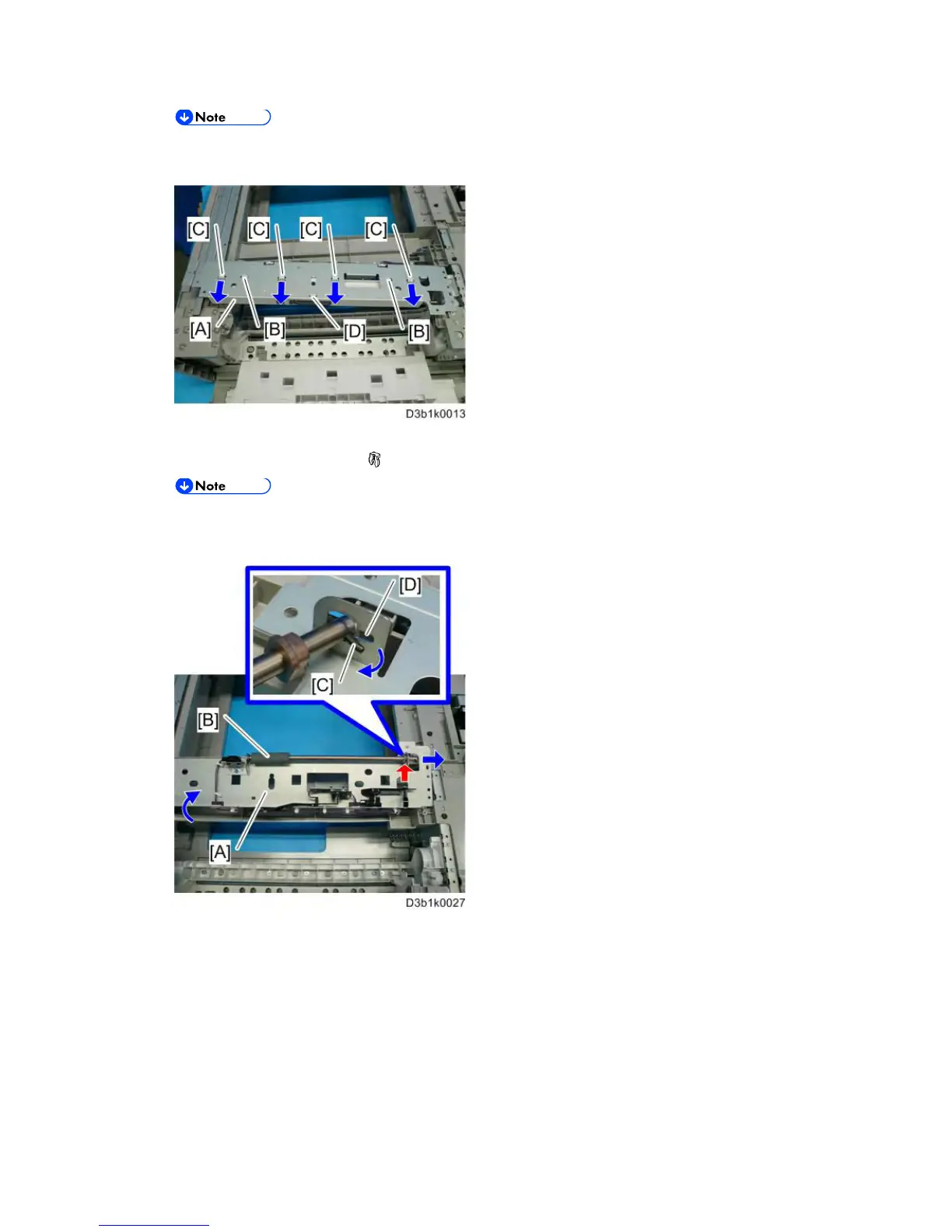

Slide the hooks [C] with the buttons [B] held pressed, and then release the hook [D]
to remove the vertical transfer roller cover [A].
8. Turn the vertical transfer roller unit [A] upside down.
9. Vertical transfer roller [B] ( x 1)
Slide the vertical transfer roller axis, and then pull out the vertical transfer roller [B]
from the bracket by aligning the pin [C] with the slot [D] of the bracket.
