Paper Feed Unit PB2020
SM 2-15 D245/D246/D247
Installation

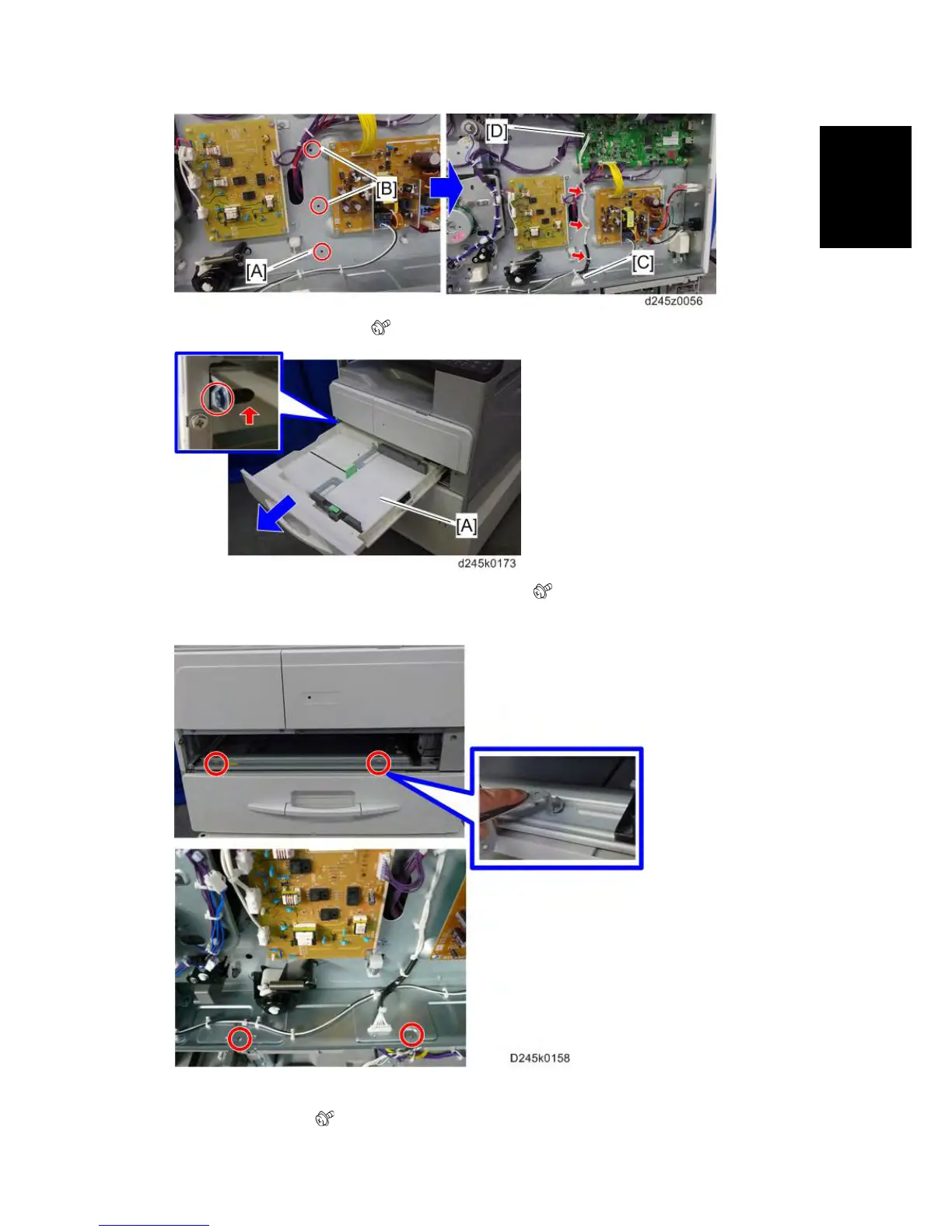

10. Pull out the paper tray [A] (
x 1, Cap x 1).
11. Tighten the main machine to the paper feed unit (
x 4; M4x6 provided with the paper
feed unit).
Use a stubby driver or bracket wrench [A] which is installed at the rear bottom of the
paper feed unit (
x 2).
