Ricoh MP 2014AD - Page 52

Paper Feed Unit PB2020
SM 2-18 D245/D246/D247

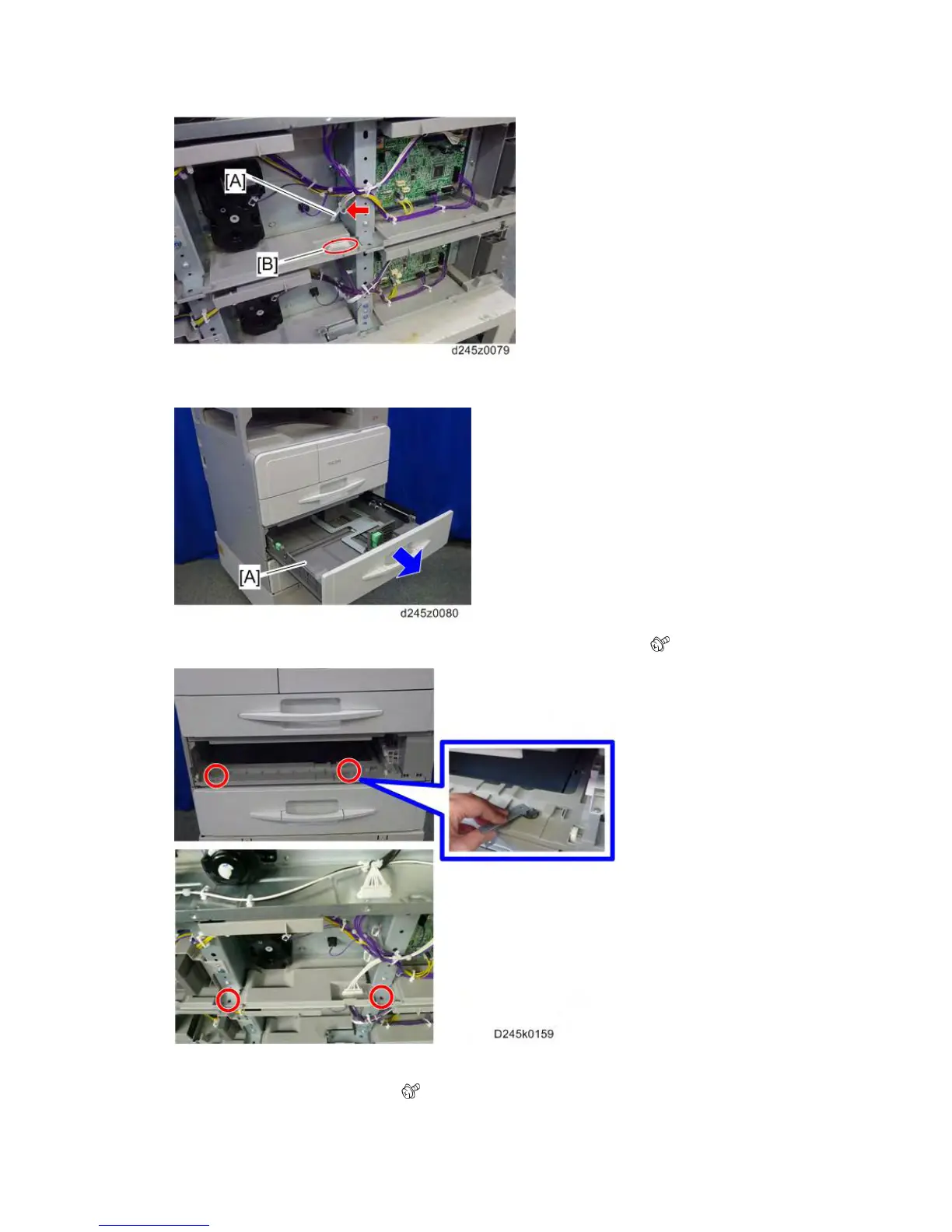

10. Pull out the paper tray [A] of the upper paper feed unit.
11. Tighten the upper paper feed to the lower paper feed unit (M4x6:
x 4).
 Use a stubby driver or bracket wrench which is removed in step 7.
12. Attach the bracket wrench [A] (
x 2).
