Ricoh MP 2014AD - Page 71

Exterior Covers
SM 4-3 D245/D246/D247
Replacement
and Adjustment
4.3.4 FRONT RIGHT COVER

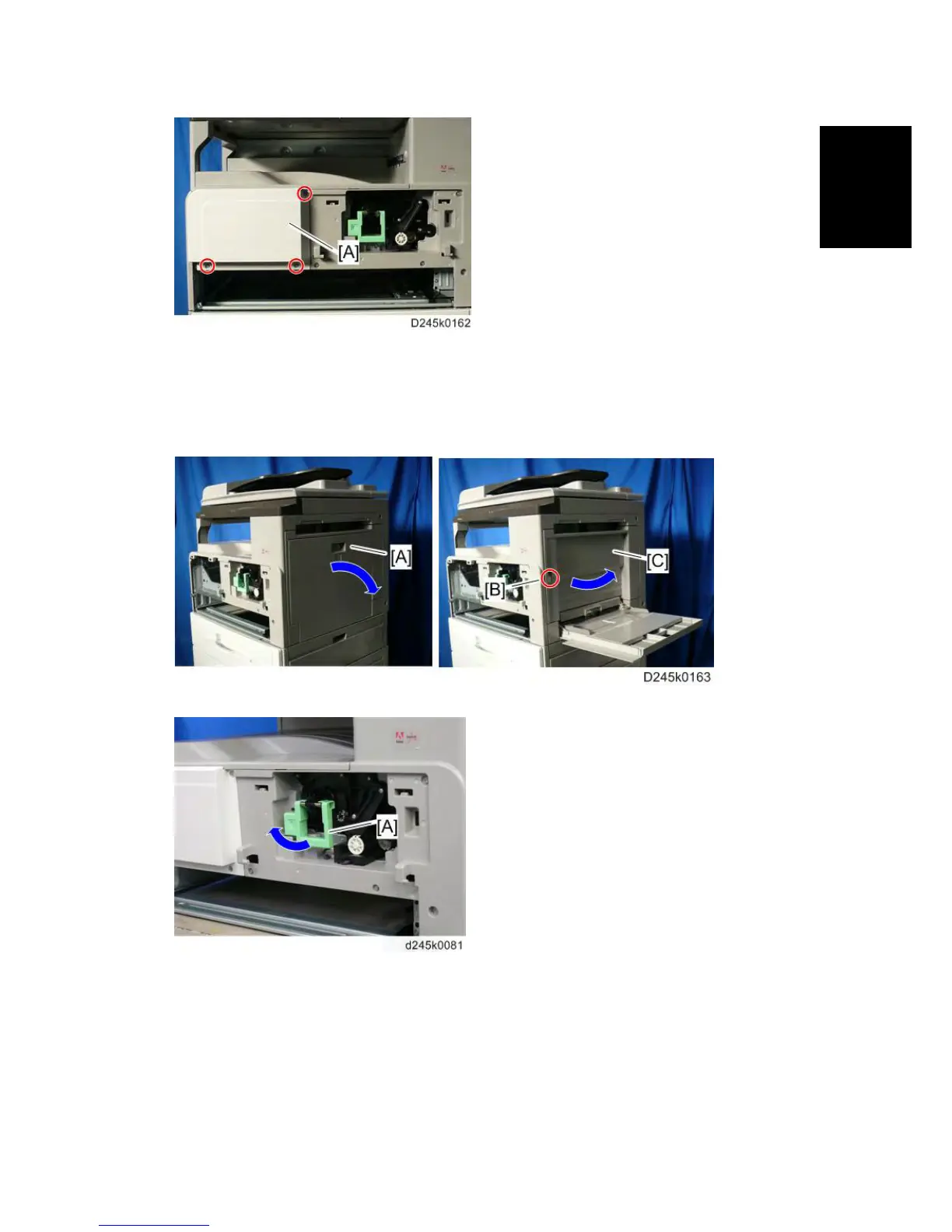

1. Front left cover (page 4-2)
2. Open the by-pass tray [A], and then press the button [B] to open the right door [C].
3. Pull the toner bottle holder lever [A] upward.
4. Release the lock lever [A], and then pull the toner bottle holder [B].
