Rigol DHO800 Series User Manual

- Cursor A is a horizontal solid line ( is displayed at the right section of
the screen), and Cursor B is a horizontal dotted line (
is displayed at the
right section of the screen).
- In XY cursor mode, Y cursor is used to measure the waveform amplitude of
Source Y.
You can enable cursor measurements in the following ways.
• Click or tap the function navigation icon
> Cursors to enable cursor
measurements.
• Click or tap the
Cursors button on the toolbar to enable cursor measurements.
• Press the front-panel
key to enable cursor measurements.

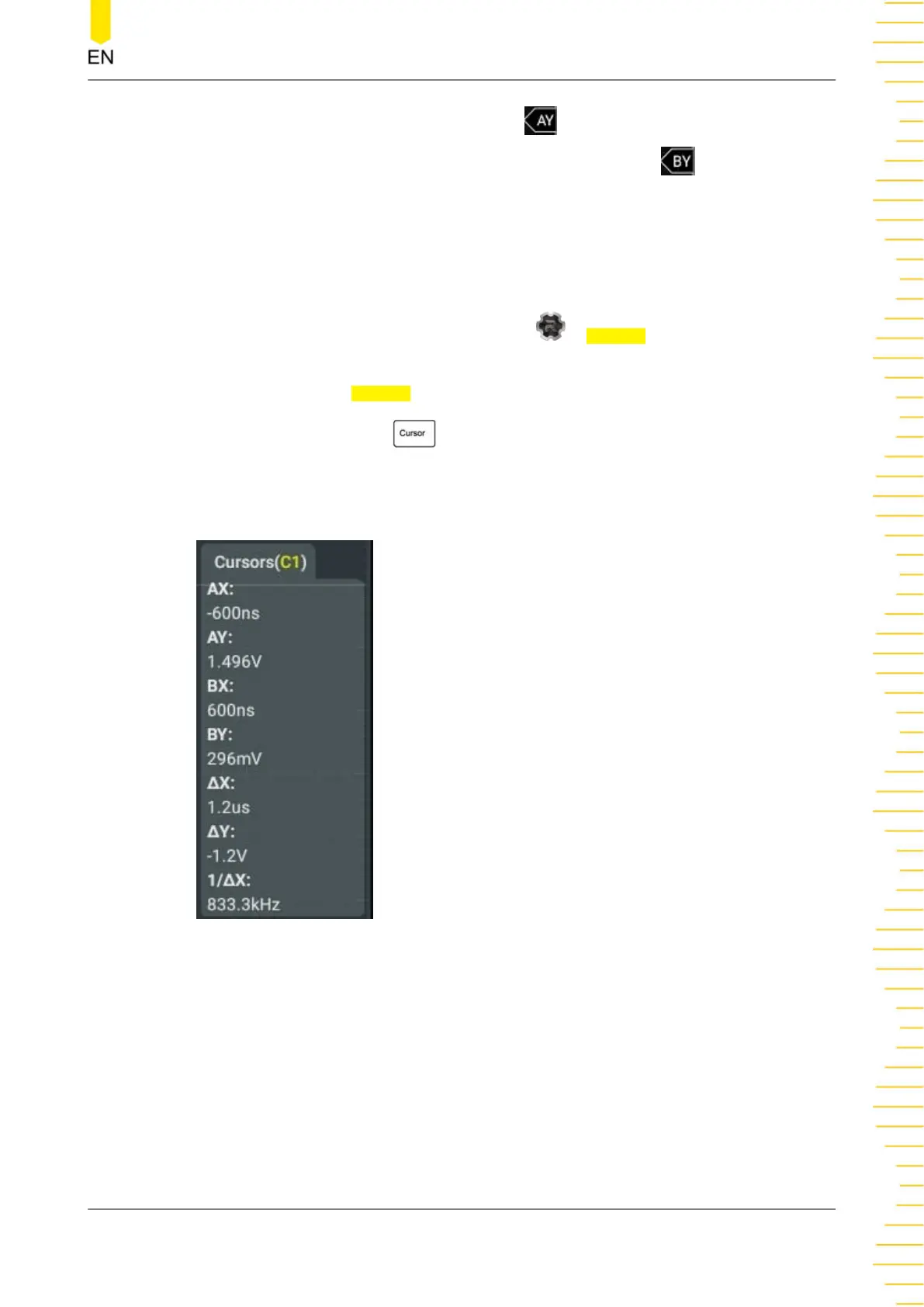

The measurement results are displayed in the "Result" bar at the right side of the
screen.
• AX: indicates the X value at Cursor A.
• AY: indicates the Y value at Cursor A.
• BX: indicates the X value at Cursor B.
• BY: indicates the Y value at Cursor B.
• ∆X: indicates the horizontal spacing between Cursor A and Cursor B.
• ∆Y: indicates the vertical spacing between Cursor A and Cursor B.
Measurements
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DHO800 User Guide
141

Rigol DHO800 Series Specifications

General

Channels	2 or 4 analog channels
Vertical Resolution	12-bit
Vertical Sensitivity	1 mV/div to 10 V/div
Timebase Range	1 ns/div to 1000 s/div
Power Supply	100-240 VAC, 50/60 Hz
Waveform Capture Rate	1, 000, 000 wfm/s
Interfaces	USB Host, USB Device, LAN
Digital Channels	Optional 16-channel MSO
Protocols Decoding	I2C, SPI, UART, CAN, LIN
Input Impedance	1 MΩ
Trigger Types	Edge, Pulse, Video, Slope, Pattern, Duration, Timeout, Runt, Window
