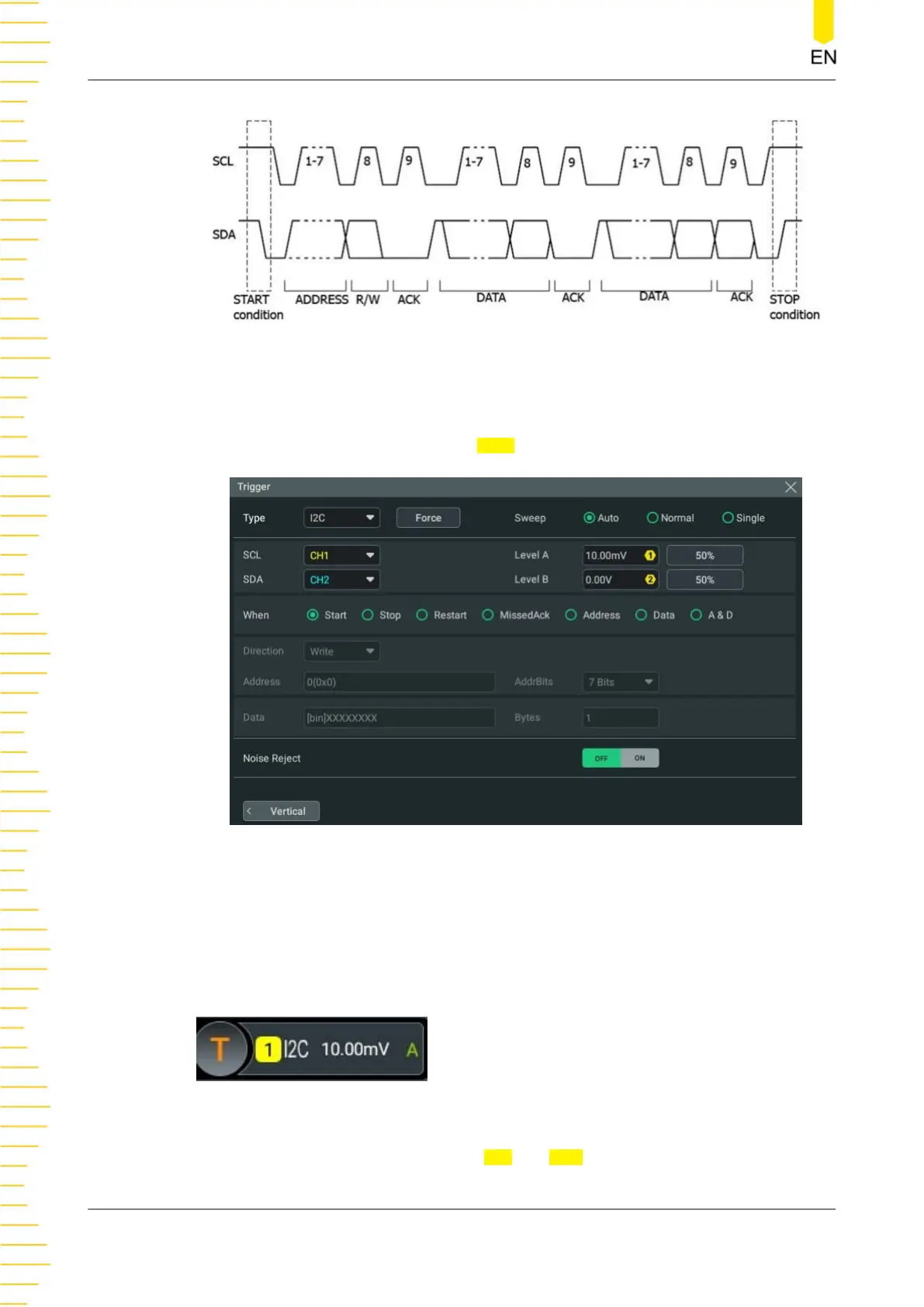

Figure 8.26 Sequence Diagram of I2C Protocol
Trigger Type
Click or tap the drop-down button of
Type to select "I2C".
Figure 8.27 I2C Trigger Setting Menu
After a trigger type is selected, the current trigger setting information (including the
trigger type, source, and level) is displayed in the trigger information label at the top
of the screen, as shown in the figure below. The information will change based on the
trigger settings.
Source Selection
Click or tap the drop-down buttons of
SCL and SDA to select CH1-CH4 to specify the
sources of SCL and SDA respectively. For details, refer to descriptions in
Trigger
Triggering the Oscilloscope
DHO800 User Guide
98
