Rigol DHO800 Series User Manual

"Invert" On
"Invert" On
"Invert" Off
"Invert" Off

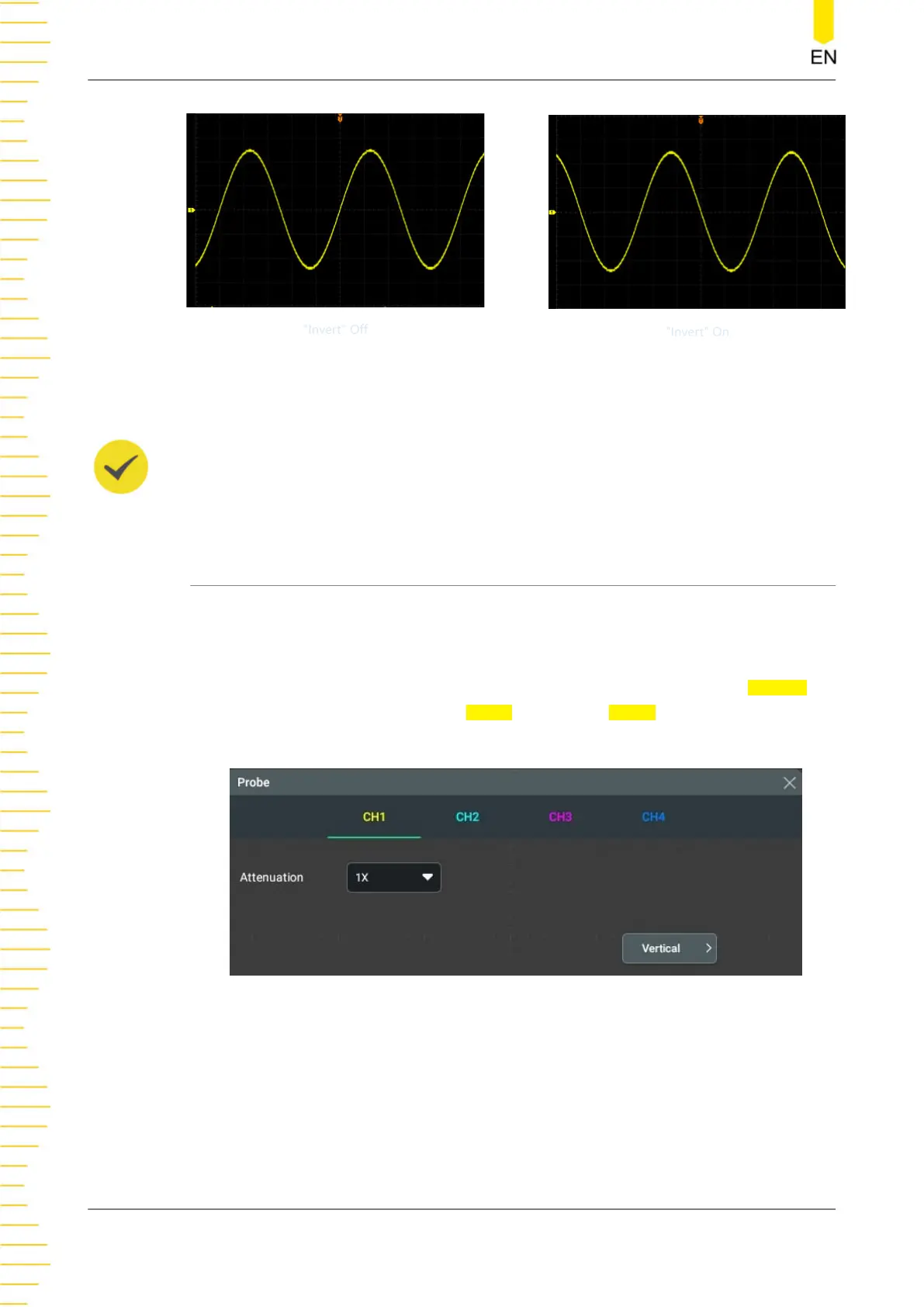

Figure 5.2 Waveform Invert On/Off
TIP
When the Invert function is turned on, the trigger (e.g. Edge trigger, Pulse trigger, or Slope
trigger) edge or polarity will be changed.
5.8 To Set Probe
The analog channel of this oscilloscope supports passive probes. For detailed
technical information of the probes, please refer to the corresponding Probe User
Guide.
Click or tap the channel status label at the bottom of the screen. Then the
Vertical
menu is displayed. Then click or tap
Probe to enter the Probe setting menu, as shown
in the figure below.
Figure 5.3 Probe Setting Menu
Probe Ratio
The oscilloscope allows you to set the probe attenuation manually. To obtain the
accurate measurement results, you must set the probe ratio properly. By default, the
probe ratio is 1X.
The probe ratio values available are as shown in the following table.
Vertical System
DHO800 User Guide
42
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.

Rigol DHO800 Series Specifications

General

Channels	2 or 4 analog channels
Vertical Resolution	12-bit
Vertical Sensitivity	1 mV/div to 10 V/div
Timebase Range	1 ns/div to 1000 s/div
Power Supply	100-240 VAC, 50/60 Hz
Waveform Capture Rate	1, 000, 000 wfm/s
Interfaces	USB Host, USB Device, LAN
Digital Channels	Optional 16-channel MSO
Protocols Decoding	I2C, SPI, UART, CAN, LIN
Input Impedance	1 MΩ
Trigger Types	Edge, Pulse, Video, Slope, Pattern, Duration, Timeout, Runt, Window
