Rigol DHO800 Series User Manual

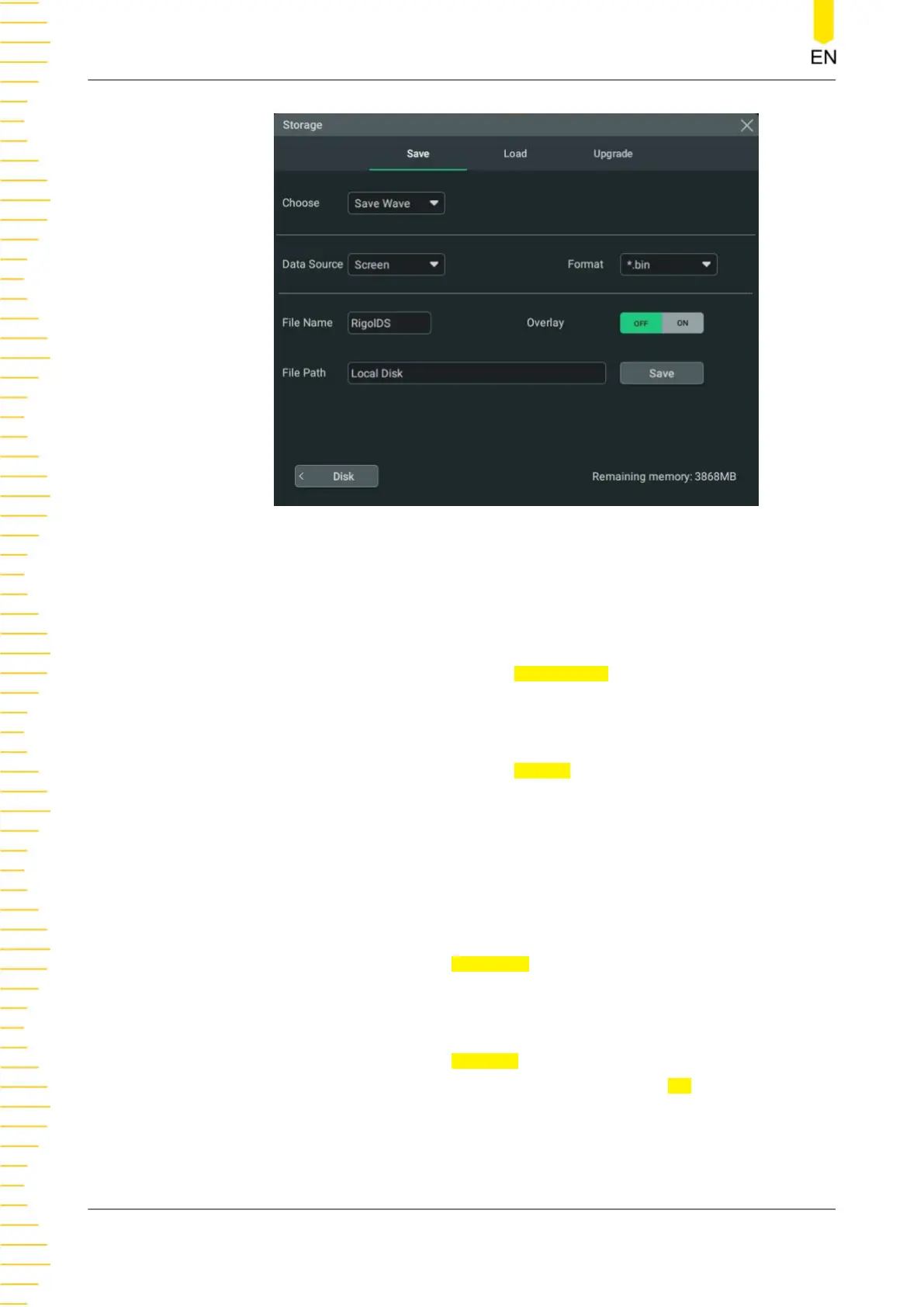

Figure 20.2 Waveform Saving Setting Menu
Set the source of the waveform data and the format of the saved waveform
• Data source
Click or tap the drop-down button of
Data Source to select "Screen" or
"Memory".
• Waveform format
Click or tap the drop-down button of
Format to select the format of the saved
waveform. When the data source is set to "Screen", the format can be set to
"*.bin" or "*.csv"; when the data source is set to "Memory", the format can be
set to "*.bin", "*.csv", or "*.wfm".
Set the file saving parameters
• Set the filename
Click or tap the input field of
File Name to input the file name to be saved with
the pop-up virtual keypad.
• Set the file path
Click or tap the input field of
File Path, then the disk management interface is
displayed. Select the target directory and then click or tap
OK to set the file path.
For detailed operations, refer to descriptions in
Disk Management .
When a USB device is not connected, the default file path is the "Local Disk";
when a USB device is detected, the path is automatically set to "D:".
Store and Load
DHO800 User Guide
204
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.

Rigol DHO800 Series Specifications

General

Channels	2 or 4 analog channels
Vertical Resolution	12-bit
Vertical Sensitivity	1 mV/div to 10 V/div
Timebase Range	1 ns/div to 1000 s/div
Power Supply	100-240 VAC, 50/60 Hz
Waveform Capture Rate	1, 000, 000 wfm/s
Interfaces	USB Host, USB Device, LAN
Digital Channels	Optional 16-channel MSO
Protocols Decoding	I2C, SPI, UART, CAN, LIN
Input Impedance	1 MΩ
Trigger Types	Edge, Pulse, Video, Slope, Pattern, Duration, Timeout, Runt, Window
