Rigol DHO800 Series User Manual

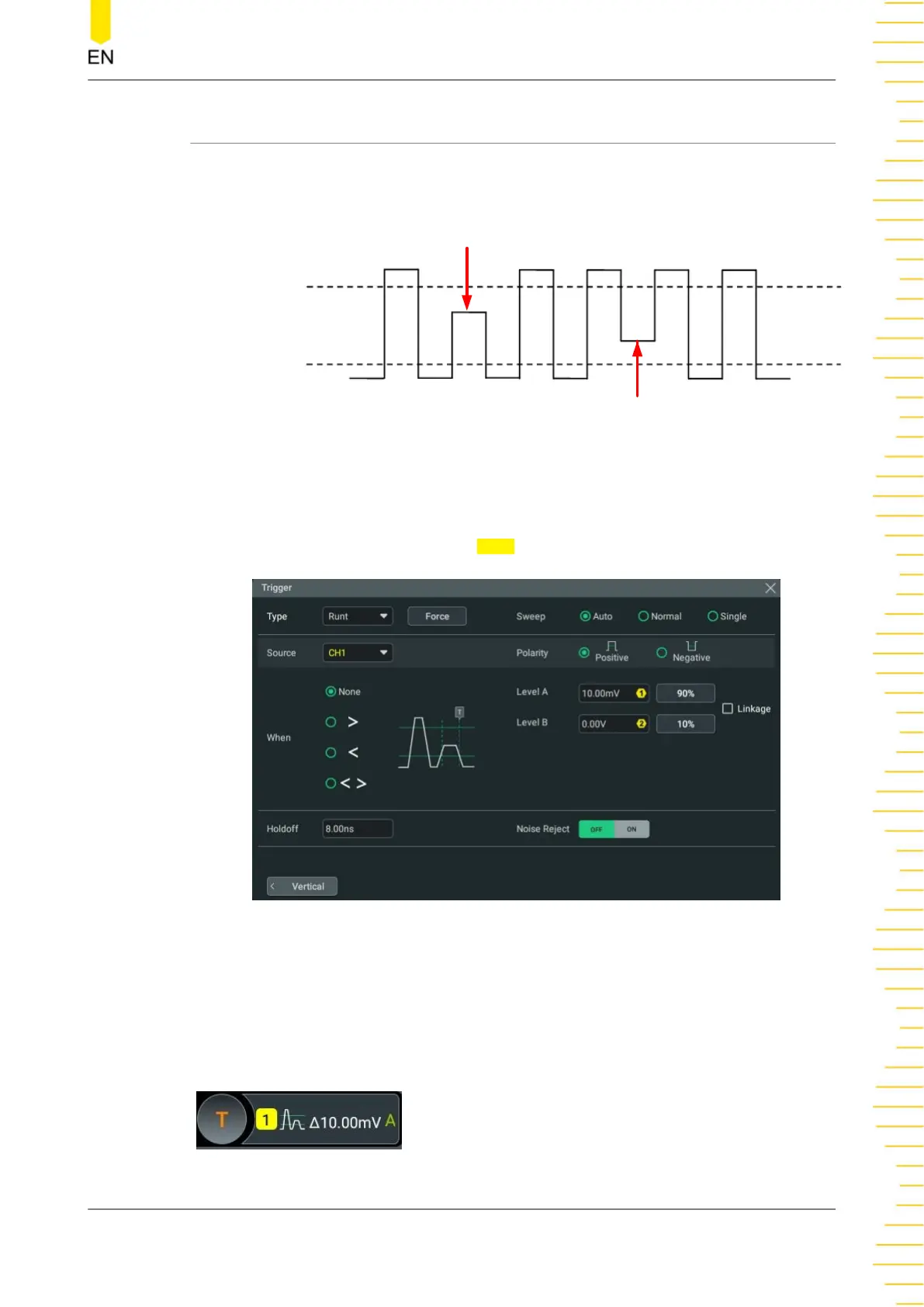

8.7.8 Runt Trigger
The runt trigger sets the oscilloscope to trigger pulses that cross one trigger level but
not another, as shown in the figure below.
Lower Limit of the
Trigger Level
Upper Limit of the
Trigger Level
Negative Runt Pulse
Positive Runt Pulse
Figure 8.15 Runt Trigger
Trigger Type
Click or tap the drop-down button of
Type to select "Runt".
Figure 8.16 Runt Trigger Setting Menu
After a trigger type is selected, the current trigger setting information (including the
trigger type, source, and level) is displayed in the trigger information label at the top
of the screen, as shown in the figure below. The information will change based on the
trigger settings.
Triggering the Oscilloscope
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DHO800 User Guide
83

Rigol DHO800 Series Specifications

General

Channels	2 or 4 analog channels
Vertical Resolution	12-bit
Vertical Sensitivity	1 mV/div to 10 V/div
Timebase Range	1 ns/div to 1000 s/div
Power Supply	100-240 VAC, 50/60 Hz
Waveform Capture Rate	1, 000, 000 wfm/s
Interfaces	USB Host, USB Device, LAN
Digital Channels	Optional 16-channel MSO
Protocols Decoding	I2C, SPI, UART, CAN, LIN
Input Impedance	1 MΩ
Trigger Types	Edge, Pulse, Video, Slope, Pattern, Duration, Timeout, Runt, Window
