4. HDMI
You can connect the instrument to an external display that has the HDMI interface
(e.g. monitor or projector) via this interface to better observe the waveform display
clearly. At this time, you can also view the waveforms on the LCD of the
instrument.
5. USB Type-C Power Connector
The power requirements of the oscilloscope are DC, 12 V, 4 A. Please use the
power adaptor provided in the accessories to connect the oscilloscope to the AC
power source (100 V to 240 V, 50 Hz to 60 Hz).
6. Security Lock Hole
Use a standard PC/laptop lock cable to secure the oscilloscope to a work bench or
other location.
7. Ground Terminal
Connect the instrument chassis to the ground using the lead.
8. Mounting Screws
Interval of screw holes: 100 mm x 100 mm. Use screws to secure the oscilloscope
to the bracket with the same screw hole interval.
4.4.3 User Interface Overview
1
2
3
4
5
6
7
8
10
11
12
13
9

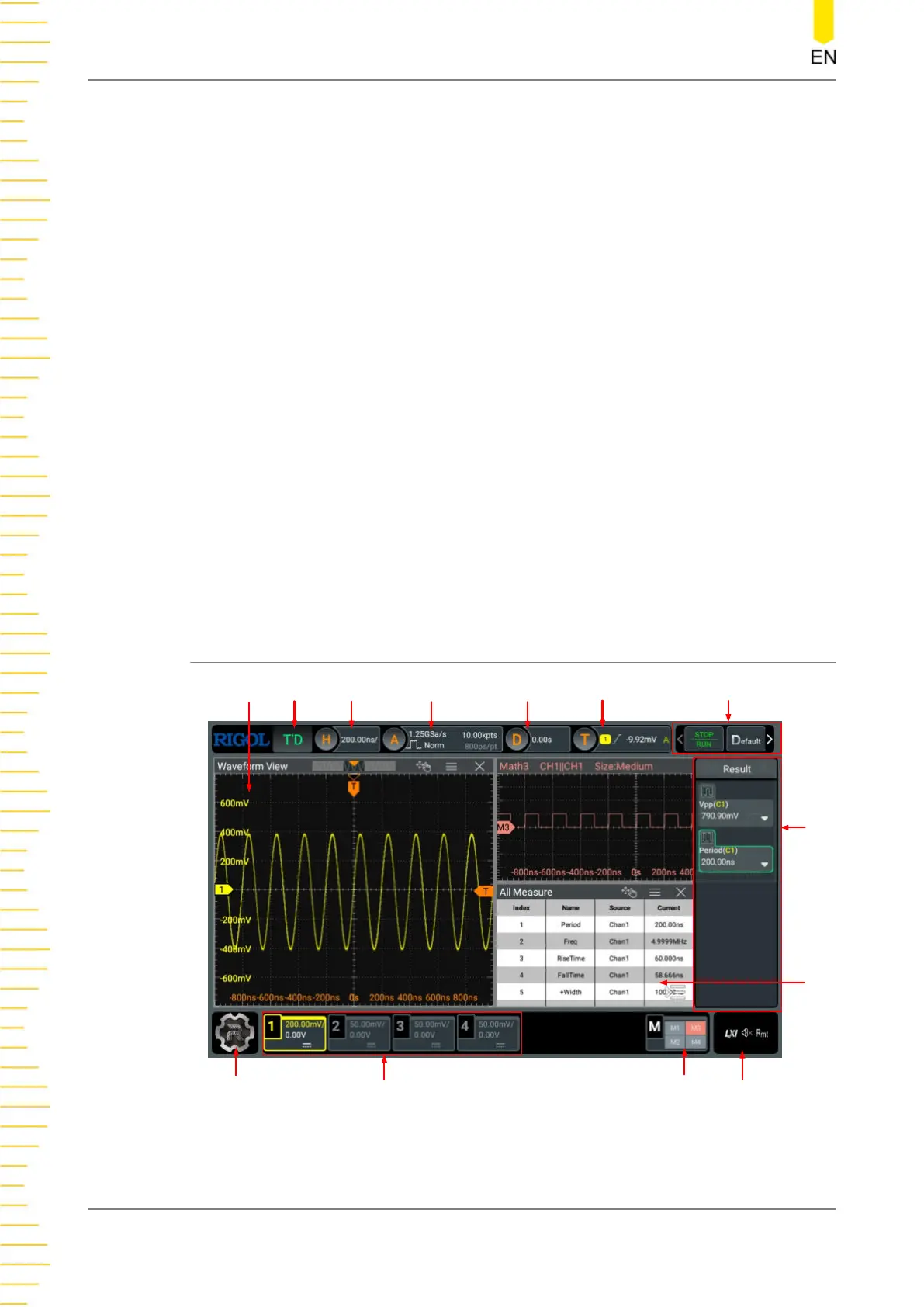

Figure 4.12 User Interface
Quick Start
DHO800 User Guide
24
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.

Rigol DHO800 Series Specifications

General

Channels	2 or 4 analog channels
Vertical Resolution	12-bit
Vertical Sensitivity	1 mV/div to 10 V/div
Timebase Range	1 ns/div to 1000 s/div
Power Supply	100-240 VAC, 50/60 Hz
Waveform Capture Rate	1, 000, 000 wfm/s
Interfaces	USB Host, USB Device, LAN
Digital Channels	Optional 16-channel MSO
Protocols Decoding	I2C, SPI, UART, CAN, LIN
Input Impedance	1 MΩ
Trigger Types	Edge, Pulse, Video, Slope, Pattern, Duration, Timeout, Runt, Window
