Open or Close the Event Table
Click or tap the
Event Table on/off switch to enable or disable the display of the
event table. When enabled, the event table is displayed as shown in the figure below.
You can also click or tap the icon
at the upper-right corner of the table to close
the event table.
Decode Time
Decoded Data
Parallel Bus
Line No.

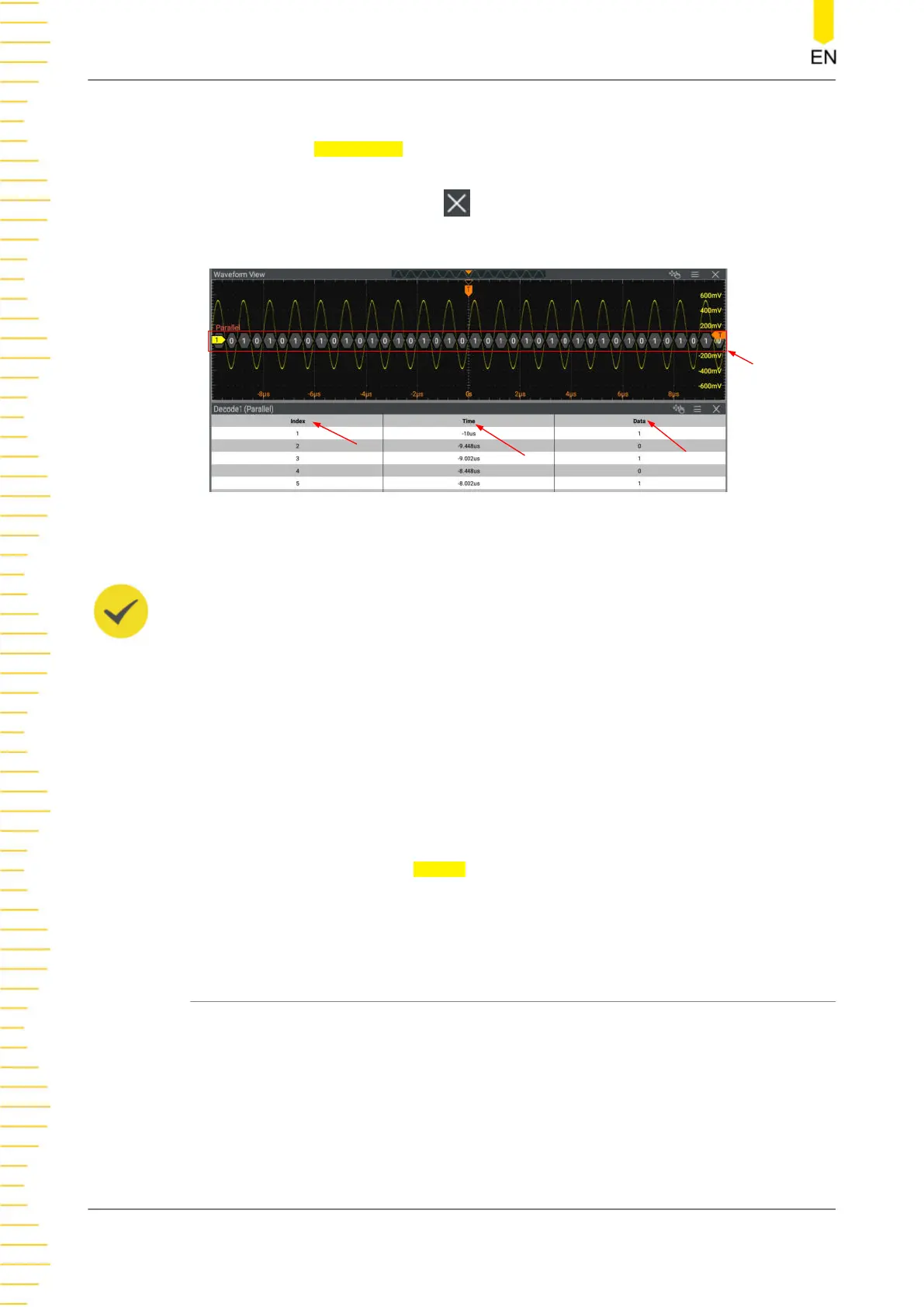

Figure 15.3 Parallel Decoding Event Table
TIP
When you adjust the horizontal time base, the waveform displayed on the screen will also
change, and the total number of lines containing the decoding information in the event
table will also be changed.
The displayed decoded data information in the bus is related to the value of the
horizontal time base. Reducing the horizontal time base can help you view the detailed
information.
Export
When the oscilloscope is in "STOP" state, you can export the time and its
corresponding decoded data in the event table.
In Decode menu, click or tap
Export, then the save setting interface is displayed. You
can export the data to the internal memory or the external USB storage device (only
when detected) in *.csv format. For details, refer to
Store and Load
.
15.2 RS232 Decoding
RS232 serial bus consists of the transmitting data line (TX) and the receiving data line
(RX).
Protocol Decoding
DHO800 User Guide
172
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
