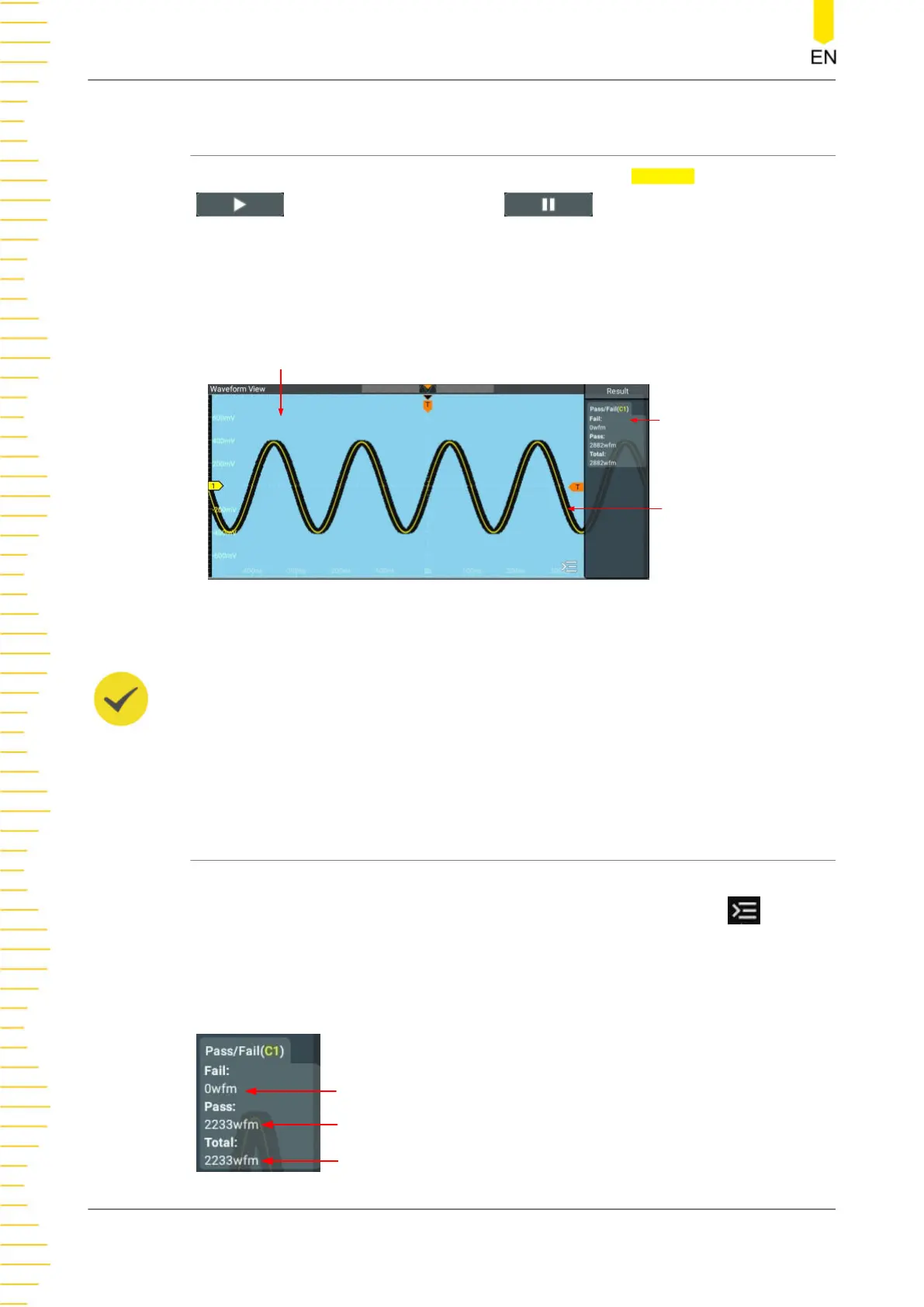

14.5 To Start or Stop the Pass/Fail Test Operation
After the Pass/Fail test function is enabled, click or tap the Operate button
to start the test operation or to stop the operation.
During the test process, the oscilloscope will test the waveforms, display the test
information, and output the test information based on the current settings. The
"Pass/Fail" result will be displayed in the "Result" bar at the right side of the screen,
as shown in the figure below.
Blue Area: Mask
Pass/Fail Result Display
Signal under Test
The test fails once the
waveform reaches the
mask area.
Figure 14.3 Pass/Fail Test Interface
TIP
Only when the pass/fail test function is enabled, can you start or stop the pass/fail test
operation, save and load the mask range.
After starting the test operation, you can neither modify the source channel nor adjust
the test mask.
14.6 To Display the Statistics of the Test Results
After the "Pass/Fail" function is enabled, the test results will be displayed in the
"Result" bar at the right side of the screen. You can click or tap the icon
at the
lower-right corner of the screen to hide the "Result" sidebar.
The test results statistics include the number of failed frames, the number of
successful frames, and total number of frames, as shown in the figure below.
Failed Frames
Passed Frames
Total Frames
Pass/Fail Test
DHO800 User Guide
166
