Rigol DHO800 Series User Manual

non-compensated or poorly compensated probe may cause measurement errors. The
compensation procedure is as follows:
1. Perform Step 1, 2, 3 and 4 in Function Inspection.
2. Check the displayed waveforms and compare them with the waveforms shown in
Figure 4.8 .

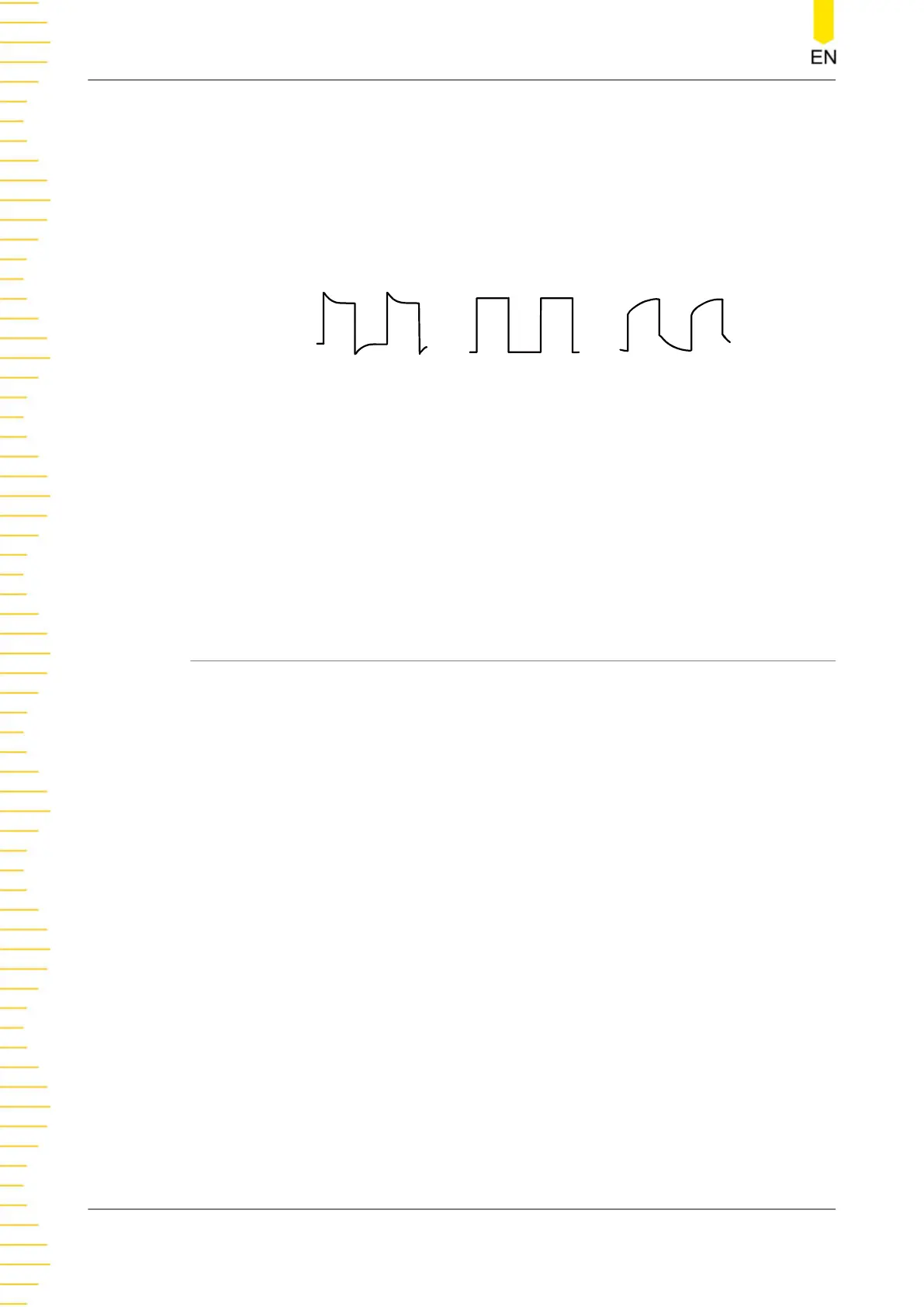

Over compensated Under compensatedPerfectly compensated
Figure 4.8 Probe Compensation
3. Use the probe compensation adjustment tool provided in the accessories to adjust
the low-frequency compensation adjustment hole on the probe until the displayed
waveform is consistent with the "Perfectly compensated" waveform shown in the
above figure.
4.4 Product Overview
Unless otherwise specified, this chapter takes the four-channel model DHO814 as an
example to introduce the appearance and dimensions, front and rear panels, and user
interface of the DHO800 series oscilloscope.
Quick Start
DHO800 User Guide
16
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.

Rigol DHO800 Series Specifications

General

Channels	2 or 4 analog channels
Vertical Resolution	12-bit
Vertical Sensitivity	1 mV/div to 10 V/div
Timebase Range	1 ns/div to 1000 s/div
Power Supply	100-240 VAC, 50/60 Hz
Waveform Capture Rate	1, 000, 000 wfm/s
Interfaces	USB Host, USB Device, LAN
Digital Channels	Optional 16-channel MSO
Protocols Decoding	I2C, SPI, UART, CAN, LIN
Input Impedance	1 MΩ
Trigger Types	Edge, Pulse, Video, Slope, Pattern, Duration, Timeout, Runt, Window
