Rigol DHO800 Series User Manual

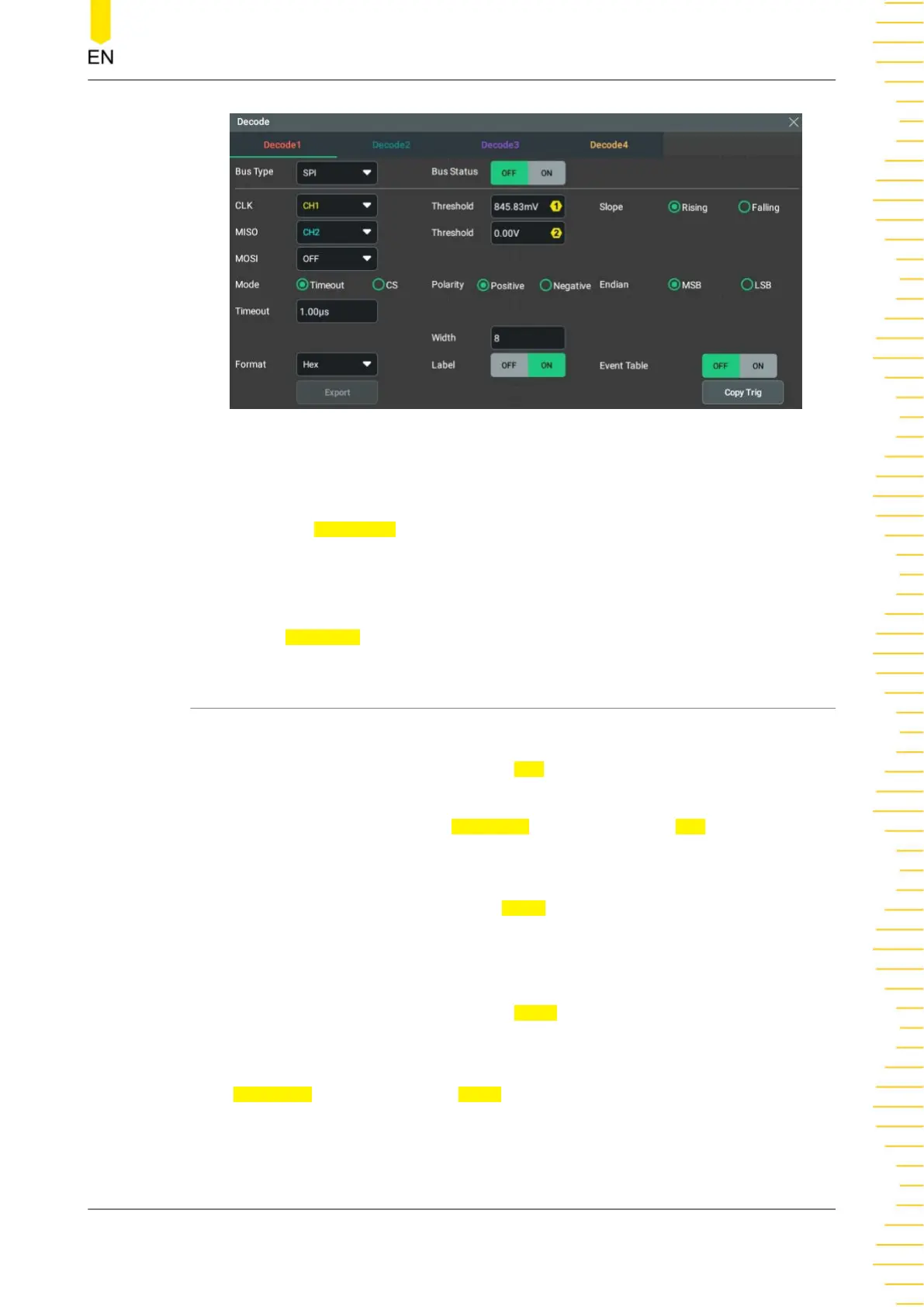

Figure 15.11 SPI Decoding Menu
Bus Status
Click or tap the
Bus Status on/off switch to enable or disable the bus decoding.
Quickly Apply Trigger Settings to Decoding
Copy trig indicates applying the trigger settings to the specified decoding setting.
Click or tap
Copy Trig to apply the trigger settings to the specified decoding setting.
15.4.1 To Set the Source
Set the Clock Signal
• Click or tap the drop-down button of CLK to select the desired source of the
clock channel. Available sources include analog channels CH1-CH4.
• Click or tap the input field of
Threshold at the right side of CLK and use the
pop-up numeric keypad to set the threshold of the clock channel. You can also
use the corresponding multipurpose knob to set the value.
• Click or tap "Rising" or "Falling" in Slope to set the instrument to sample MISO
and MOSI on the CLK edge.
MISO and MOSI Setting
• Click or tap the drop-down button of
MISO to select the desired source.
Available sources include analog channels CH1-CH4 and OFF.
• When the MISO source is set to CH1-CH4, you can click or tap the input field of
Threshold at the right side of MISO, and then use the pop-up numeric keypad
to set the threshold of the MISO channel. You can also use the corresponding
multipurpose knob to set the value.
Protocol Decoding
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DHO800 User Guide
181

Rigol DHO800 Series Specifications

General

Channels	2 or 4 analog channels
Vertical Resolution	12-bit
Vertical Sensitivity	1 mV/div to 10 V/div
Timebase Range	1 ns/div to 1000 s/div
Power Supply	100-240 VAC, 50/60 Hz
Waveform Capture Rate	1, 000, 000 wfm/s
Interfaces	USB Host, USB Device, LAN
Digital Channels	Optional 16-channel MSO
Protocols Decoding	I2C, SPI, UART, CAN, LIN
Input Impedance	1 MΩ
Trigger Types	Edge, Pulse, Video, Slope, Pattern, Duration, Timeout, Runt, Window
