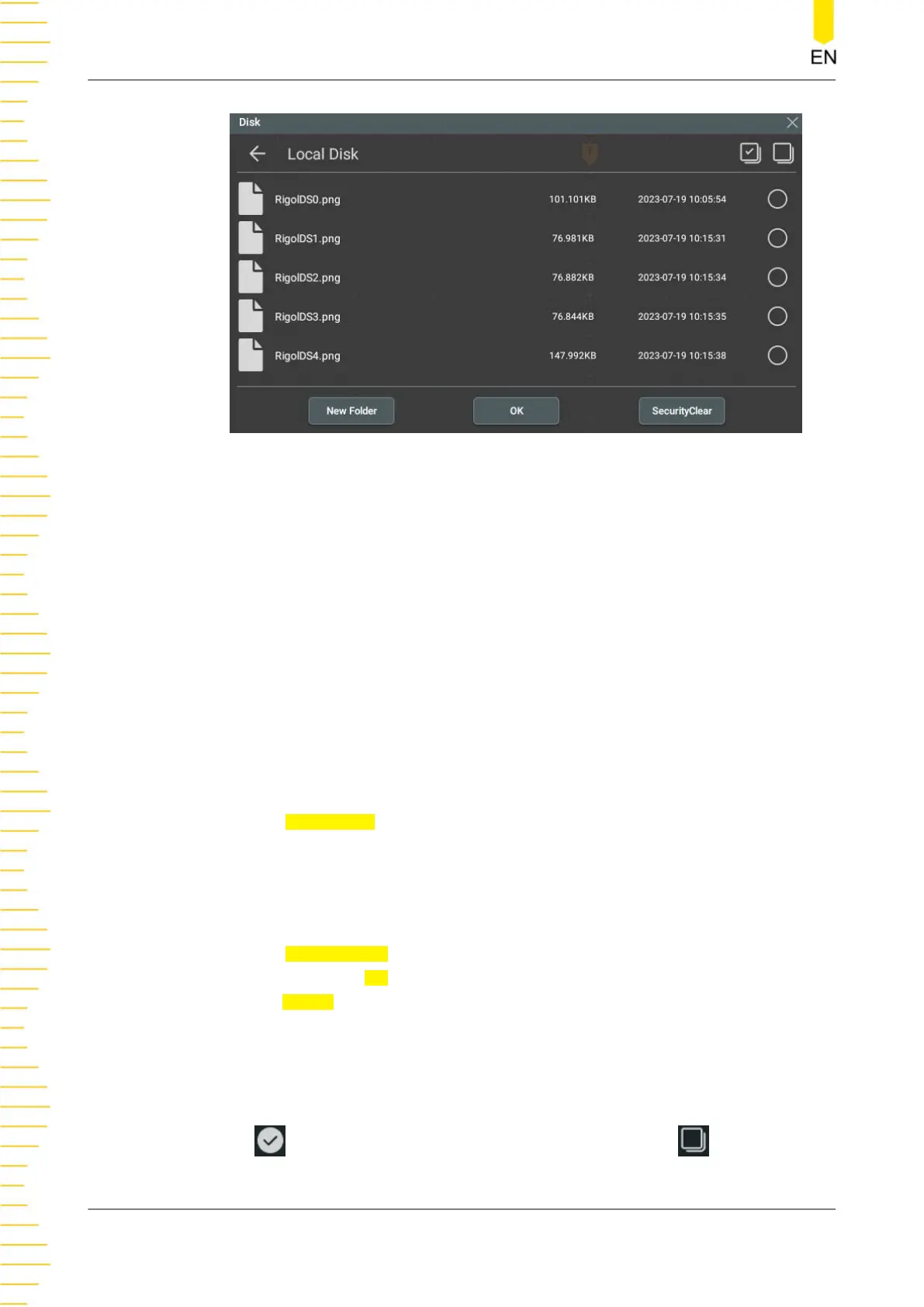

Figure 20.6 Disk Management Interface
Execute the following operations through the disk management menu:
Select a Disk
Before using the external storage device, make sure that a USB storage device (FAT32/
NTFS format) is connected correctly.
By default, the "Local Disk(C)" is selected. If an external storage device is inserted,
under the "Disk" menu, two available storage disks can be selected at the upper-left
corner of the "Disk" interface: Local Disk (C) and Removable USB Disk (D). If you select
an external storage device, for example, if you select "Removable USB Disk (D)", the
contents in USB Disk(D) will be displayed.
Create a Folder
Click or tap
New Folder, then a folder name input keyboard is displayed.
For how to use the keypad, refer to descriptions in
Parameter Setting Method
. Click or
tap any place on the screen to exit the keyboard.
Clear the Internal Memory Safely
Click or tap
SecurityClear, then a prompt message "Execute secure memory wipe?" is
displayed. Click or tap
OK to clear all the files stored in the internal disk. Otherwise,
click or tap
Cancel to cancel security clear operation.
Select a File
Before operating on the file or folder, first select the desired file or folder.
Click or tap the check box at the right side of the folder, if checked, it is selected, with
an icon
being displayed. Click or tap the check box again or to deselect it.
The check box restores its original state.
Store and Load
