Rigol DHO800 Series User Manual

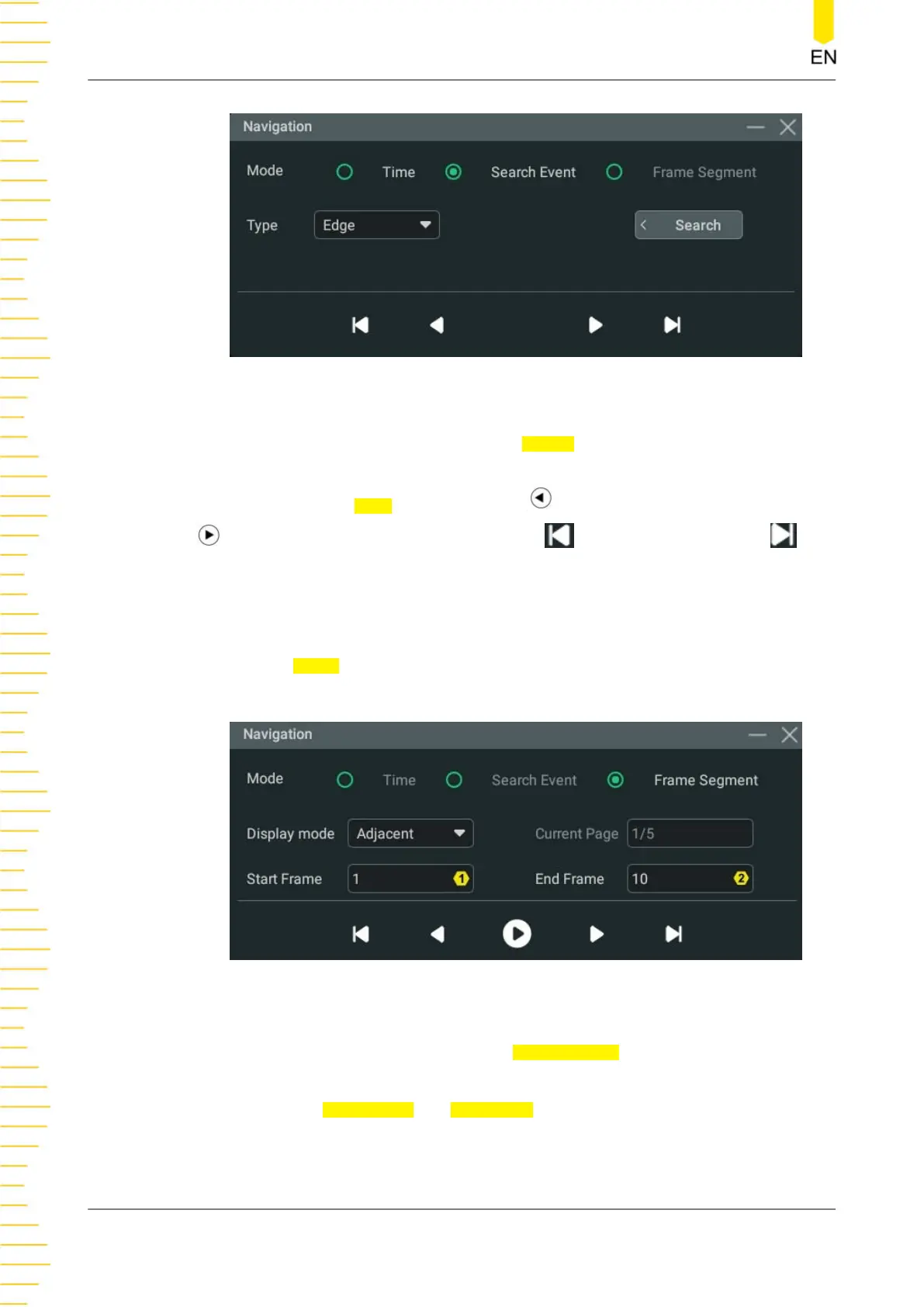

Figure 18.5 "Search Event" Navigation Setting Menu
After "Search Event" is selected, click or tap
Search to open the "Search" menu and
set the search condition. For search setup, please refer to
Search . You can select the
search type from the
Type item. Click or tap to go to the previous search event or
to go to the next search event. Click or tap to go to the first event or to
go to the last event.
Navigate segments
This mode is available only in UltraAcquire acquisition mode. When UltraAcquire is
enabled, the
Mode is automatically set to "Frame Segment" which cannot be
modified. Its setting menu is as shown in
Figure 18.6 .
Figure 18.6 "Frame Segment" Navigation Setting Menu
• In this mode, you can click or tap the Display mode drop-down button to set
the display mode of segments. For details, please refer to
UltraAcquire .
• Click or tap
Start Frame and End Frame input fields to set the start frame and
end frame which define the segment range to navigate through. You can also
use the corresponding multipurpose knob to set the start/end frame. After you
Search and Navigation
DHO800 User Guide
196
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.

Rigol DHO800 Series Specifications

General

Channels	2 or 4 analog channels
Vertical Resolution	12-bit
Vertical Sensitivity	1 mV/div to 10 V/div
Timebase Range	1 ns/div to 1000 s/div
Power Supply	100-240 VAC, 50/60 Hz
Waveform Capture Rate	1, 000, 000 wfm/s
Interfaces	USB Host, USB Device, LAN
Digital Channels	Optional 16-channel MSO
Protocols Decoding	I2C, SPI, UART, CAN, LIN
Input Impedance	1 MΩ
Trigger Types	Edge, Pulse, Video, Slope, Pattern, Duration, Timeout, Runt, Window
