Rigol DHO800 Series User Manual

Play Mode
Back to Start
Frame
Previous Frame
Play Button
Next Frame
Play Sequence
Start Frame
End Frame
Time Interval
Back to End
Frame

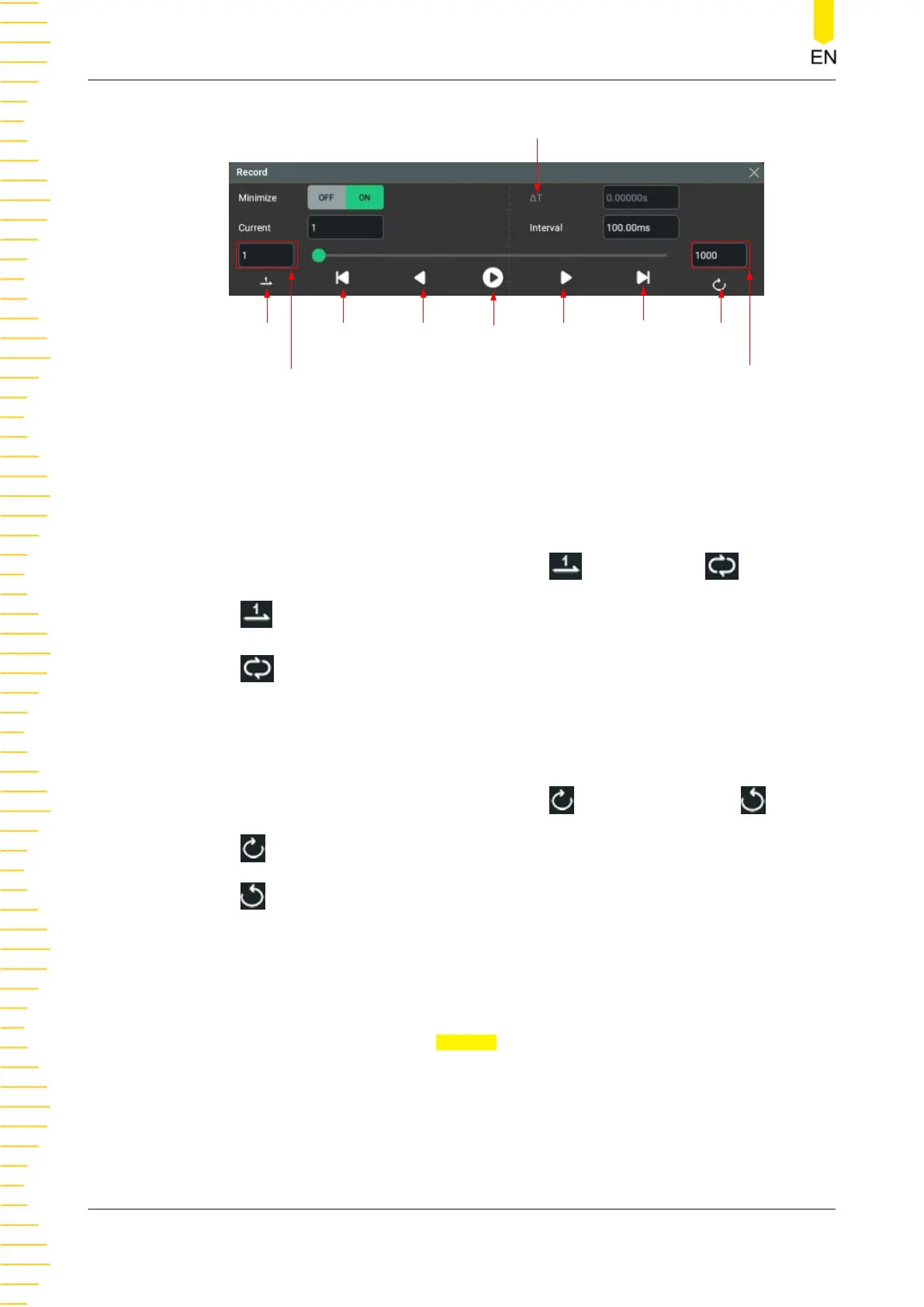

Figure 17.2 Minimized "Play" Menu
Before playing the waveforms, set the following parameters.
1. Play Mode
You can play the waveforms in single mode (
) or cycle mode ( ).
-
: plays from the start frame to the end frame, and then stops automatically.
- : plays from the start frame to the end frame, then such playback operation
is repeated until you stop it manually.
2. Play Sequence
You can play back the waveforms clockwise (
) or counterclockwise ( ).
-
: plays from the start frame to the end frame.
-
: plays from the end frame to the start frame.
3. Interval
The playback interval indicates the time interval between the frames during the
playing process.
Click or tap the input field of Interval, and then use the pop-up numeric keypad to
set the time interval between frames. You can also use the corresponding
multipurpose knob to set the value. The available range is from 1 ms to 1 s.
4. Start Frame
Waveform Recording and Playing
DHO800 User Guide
190
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.

Rigol DHO800 Series Specifications

General

Channels	2 or 4 analog channels
Vertical Resolution	12-bit
Vertical Sensitivity	1 mV/div to 10 V/div
Timebase Range	1 ns/div to 1000 s/div
Power Supply	100-240 VAC, 50/60 Hz
Waveform Capture Rate	1, 000, 000 wfm/s
Interfaces	USB Host, USB Device, LAN
Digital Channels	Optional 16-channel MSO
Protocols Decoding	I2C, SPI, UART, CAN, LIN
Input Impedance	1 MΩ
Trigger Types	Edge, Pulse, Video, Slope, Pattern, Duration, Timeout, Runt, Window
