19
Display Control
In the Display setting menu, you can set the type, persistence time, waveform
intensity, grid type, grid brightness, and etc. Click or tap the function navigation icon
at the lower-left corner of the screen, and then select Display to enter the
"Display" menu. You can also click or tap the
icon at the upper-right of the
Waveform View to enter the "Display" menu.

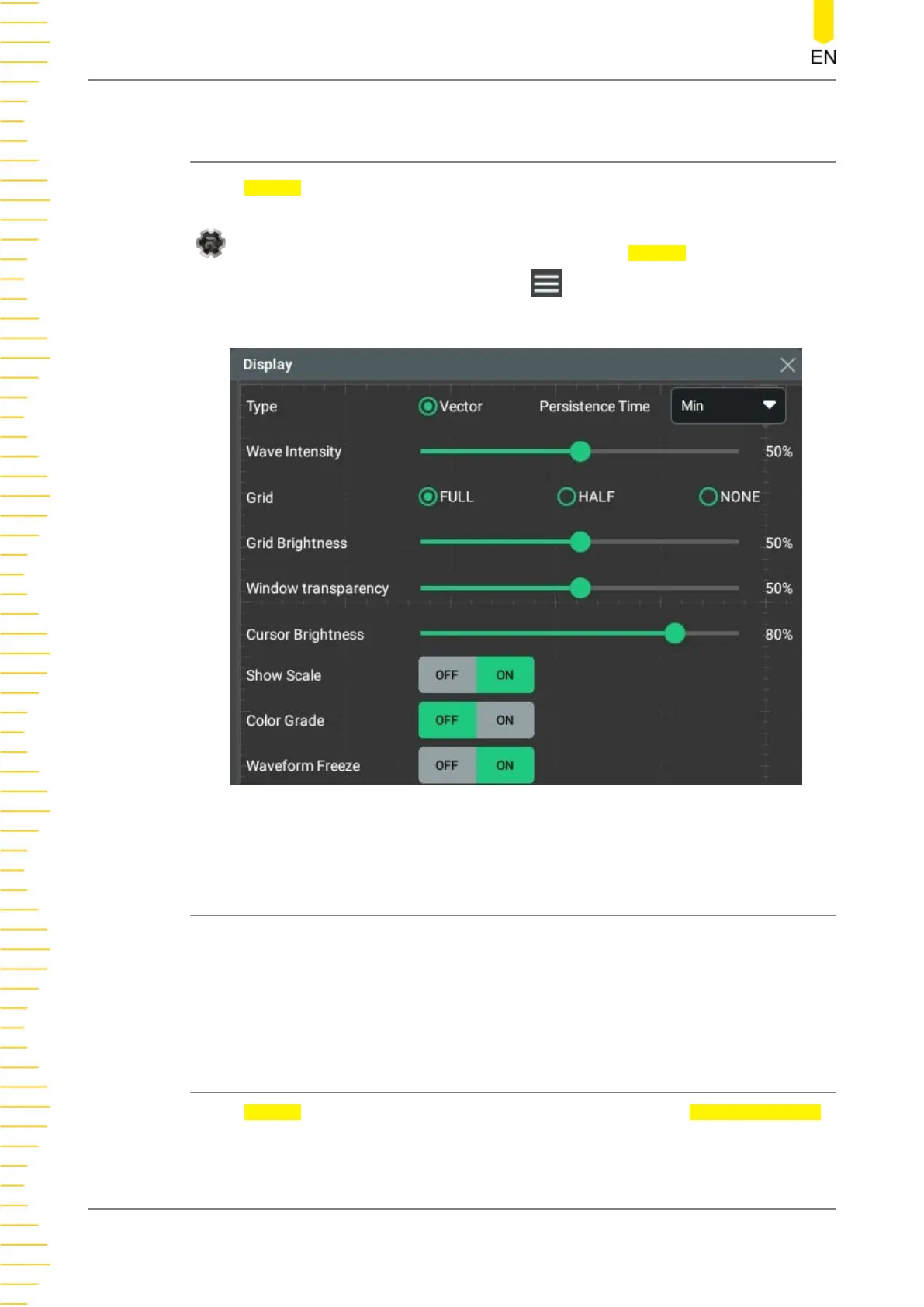

Figure 19.1 Display Setting Menu
19.1 Display Type
This series oscilloscope provides the "Vector" display mode in which the sample
points are connected by lines and displayed. In most cases, this mode can provide the
most vivid waveform for you to view the steep edge of the waveform (such as square
waveform).
19.2 Persistence Time
In the Display setting menu, click or tap the drop-down button of Persistence Time
to select the persistence time. The available values are Min, specific values (100 ms,
200 ms, 500 ms, 1 s, 2 s, 5 s, 10 s), and Infinite.
Display Control
DHO800 User Guide
198
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
