Rigol DHO800 Series User Manual

• Overlay
Click or tap the
Overlay on/off switch to enable or disable the overwriting
function. When this function is enabled, the existing file in the specified file path
will be overwritten by the newly saved file that has the same filename as the
existing one.
Click or tap
Save, the current waveform file is saved based on the settings and the
storage menu is disabled.
TIP
When the quick action function is set to "Save Wave" or "Save Group" with "Save Wave"
selected, you can press the front-panel
key to save the waveform.
20.2.3 Save Setup
In the Storage menu, click or tap the Save tab to enter the save operation menu. In
this menu, click or tap the drop-down button of
Choose to select "Save Setup" to
enter the "Save Setup" setting menu. Save the settings of the oscilloscope to the
internal or external memory in "*.stp" format. When loading, the stored settings can
be recalled.

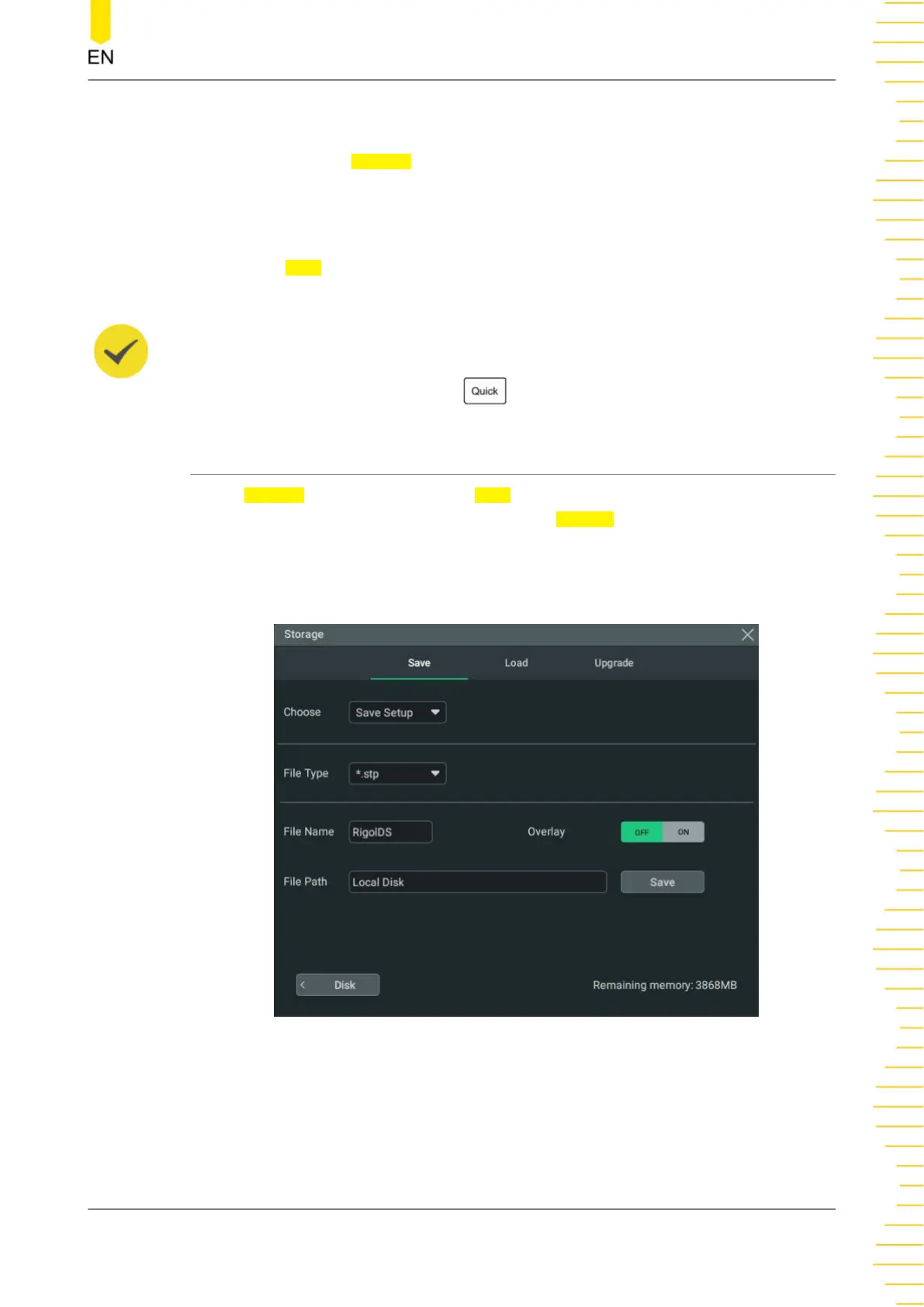

Figure 20.3 Setup Saving Setting Menu
Set the file saving parameters
• Set the filename
Store and Load
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DHO800 User Guide
205

Rigol DHO800 Series Specifications

General

Channels	2 or 4 analog channels
Vertical Resolution	12-bit
Vertical Sensitivity	1 mV/div to 10 V/div
Timebase Range	1 ns/div to 1000 s/div
Power Supply	100-240 VAC, 50/60 Hz
Waveform Capture Rate	1, 000, 000 wfm/s
Interfaces	USB Host, USB Device, LAN
Digital Channels	Optional 16-channel MSO
Protocols Decoding	I2C, SPI, UART, CAN, LIN
Input Impedance	1 MΩ
Trigger Types	Edge, Pulse, Video, Slope, Pattern, Duration, Timeout, Runt, Window
