SteelFusion Edge Hardware and Maintenance Guide
47
Replacing disk drives Replacing SteelFusion Edge Components
To remove the chassis cover on 2U appliances
1. Loosen the two locking screws on the back of the chassis. (See Figure 4-5.)

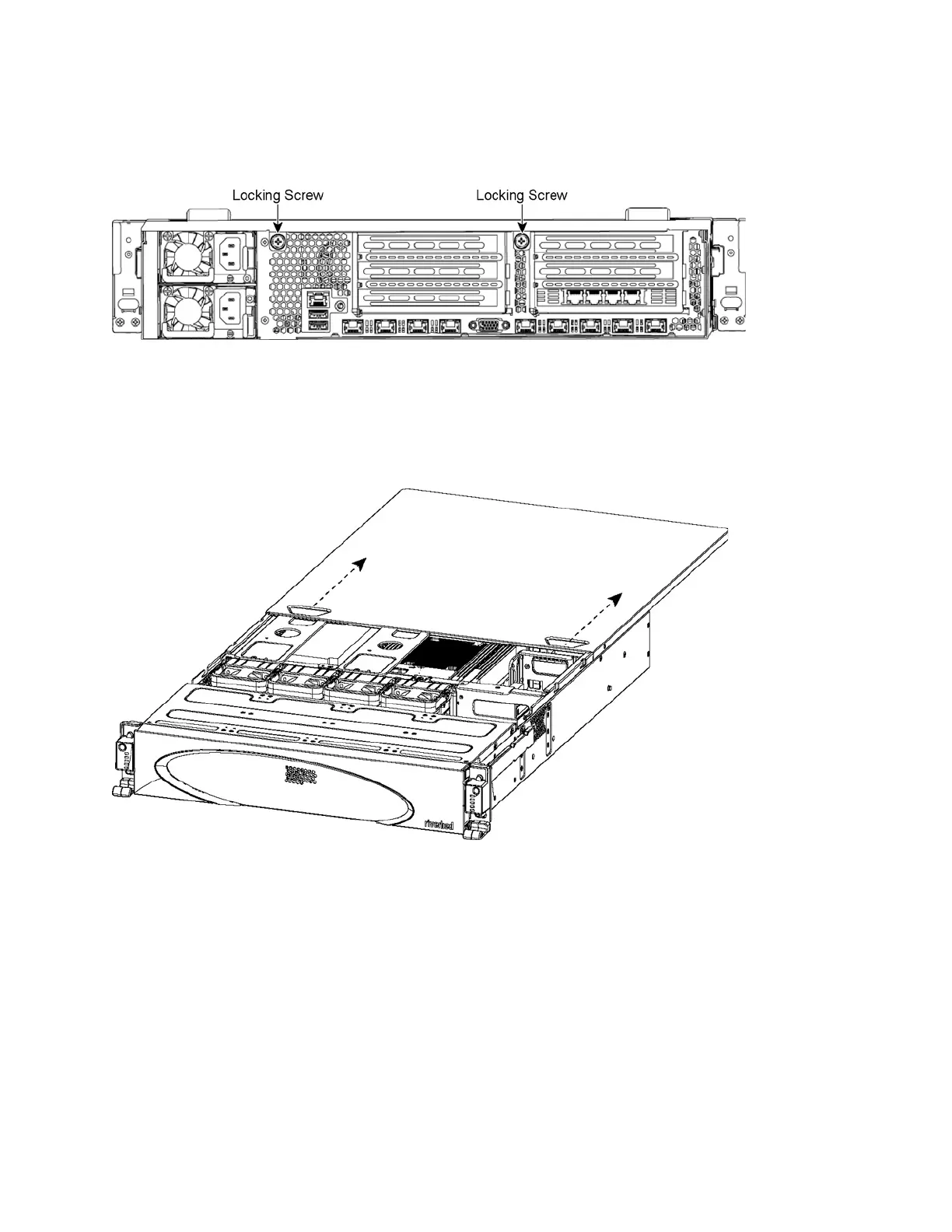

Figure 4-5. Loosening the locking screws
2. Remove the third locking screw on the right side of the top cover.
3. Position your thumbs in the indentations at the front of the appliance and slide the cover back from
the chassis. (See Figure 4-6.)
Figure 4-6. Removing the chassis cover
Replacing disk drives
This section describes how to remove and replace disk drives and includes the following procedures:
“Replacing disk drives in 1U SteelFusion Edge appliances” on page 48
“Replacing disk drives in 2U SteelFusion Edge appliances” on page 49
Note: If you need to replace an appliance, you cannot move the disks to preserve your data. Each disk is encoded
with machine-level information, and moving disks is not supported.
