Two-Port 1-GbE Fiber LX card Network Interface Cards
Two-Port 1-GbE Fiber LX card

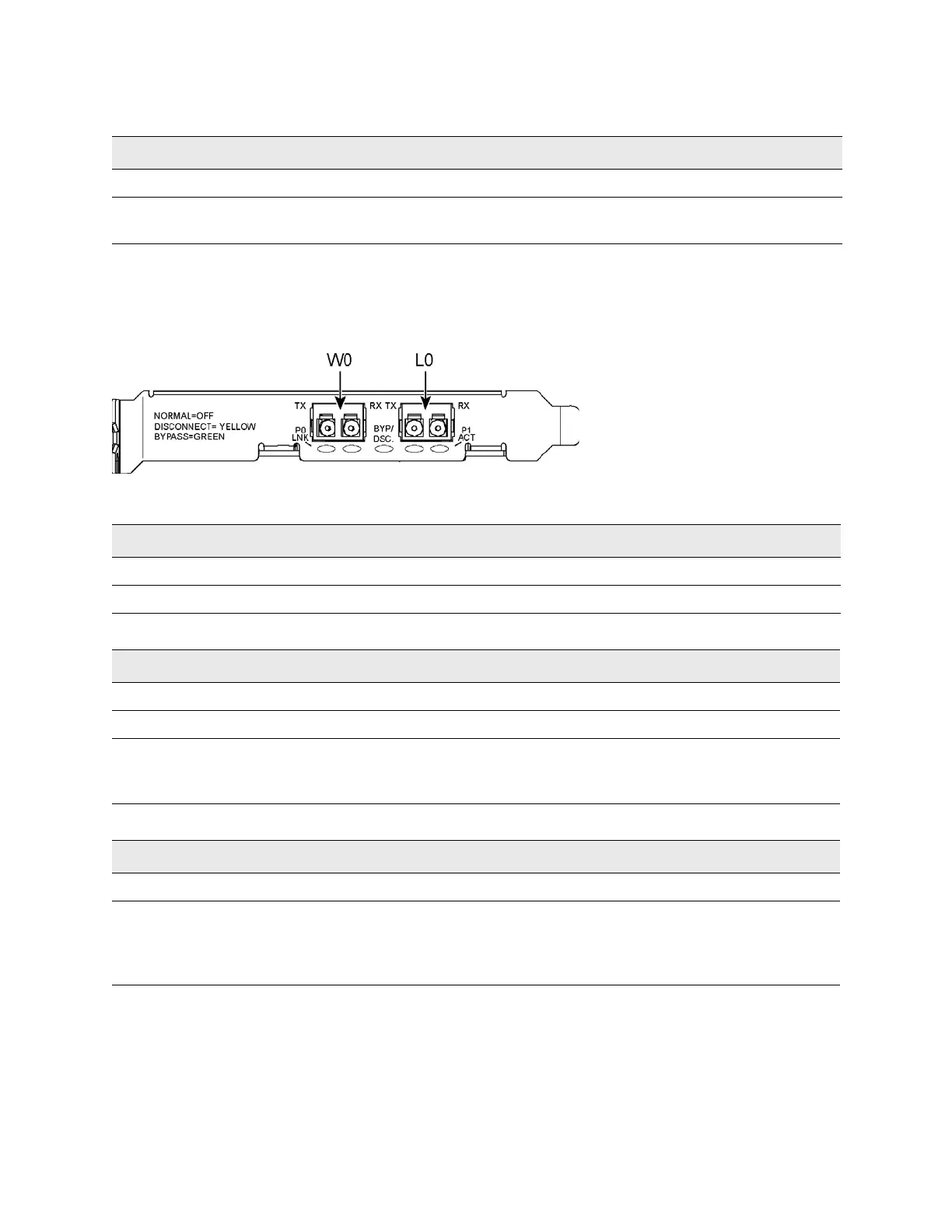

Figure C-3. Two-Port 1-GbE Fiber LX card (NIC-1-001G-2LX-BP)
Specification Description
Connectors Two small form factor (SFF) LC fiber connectors
Cables and
operating distance
Multimode fiber: 137 m maximum at 62.5 um (half of theoretical distance of IEEE 802.3
standard)
Port Description
TX, RX Output and input data
P0 ACT, P1 ACT Activity status of the port
LED Definition
LNK Link = yellow
ACT Activity = blinks green
BYP/DSC Normal = off
Disconnect = yellow
Bypass = green
Specification Description
Connectors Two small form factor (SFF) LC fiber connectors
Cables and operating
distance
Multimode fiber: 137 m maximum at 62.5 um *
* Theoretical Distance - Defined as half a distance as stated by the IEEE 802.3
standard
