This appendix describes the network installation cards (NIC) supported in the SteelFusion Edge
appliances and includes the following sections:
 “Four-Port 1-GbE Copper Bypass card” on page 81
 “Two-Port 1-GbE Fiber SX card” on page 82
 “Two-Port 1-GbE Fiber LX card” on page 83
 “Four-Port 1-GbE Fiber LX card” on page 84
 “Two-Port 10-GbE Fiber SR card” on page 84
 “Two-Port 10-GbE Fiber LR card” on page 85
 “Two-Port 10-GbE TX Copper card” on page 86
 “Four-Port 1-GbE Copper Base-T card” on page 87
 “Two-Port 10-GbE Fiber SFP+ card” on page 88
 “Four-Port 10-GbE Fiber SFP+ card” on page 88
Four-Port 1-GbE Copper Bypass card

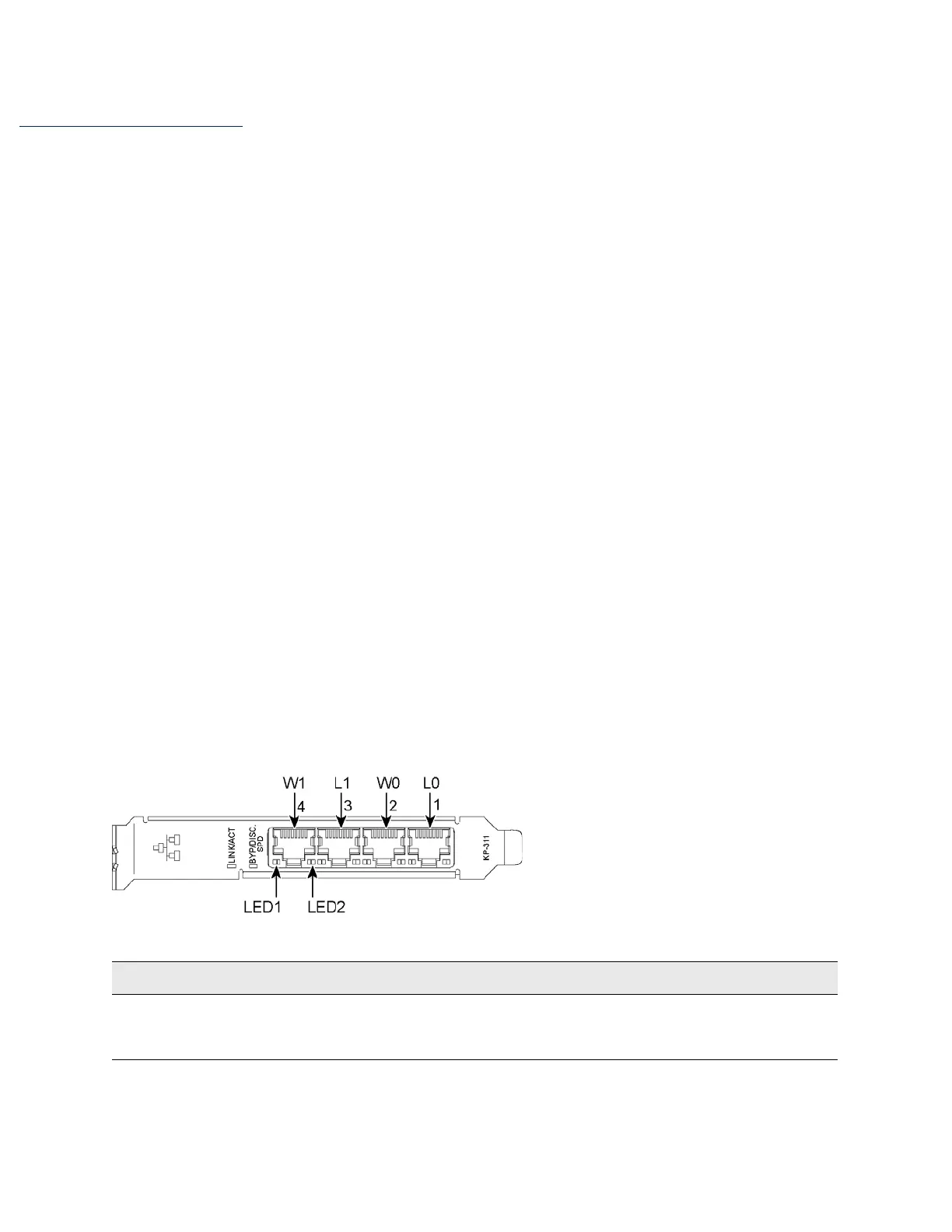

Figure C-1. Four-Port Copper Bypass card (NIC-1-001G-4TX-BP)
Port Description
L0, W0, L1, W1
or
1 to 4
Provides access to 10/100/1000 Base-TX
