88 SteelFusion Edge Hardware and Maintenance Guide

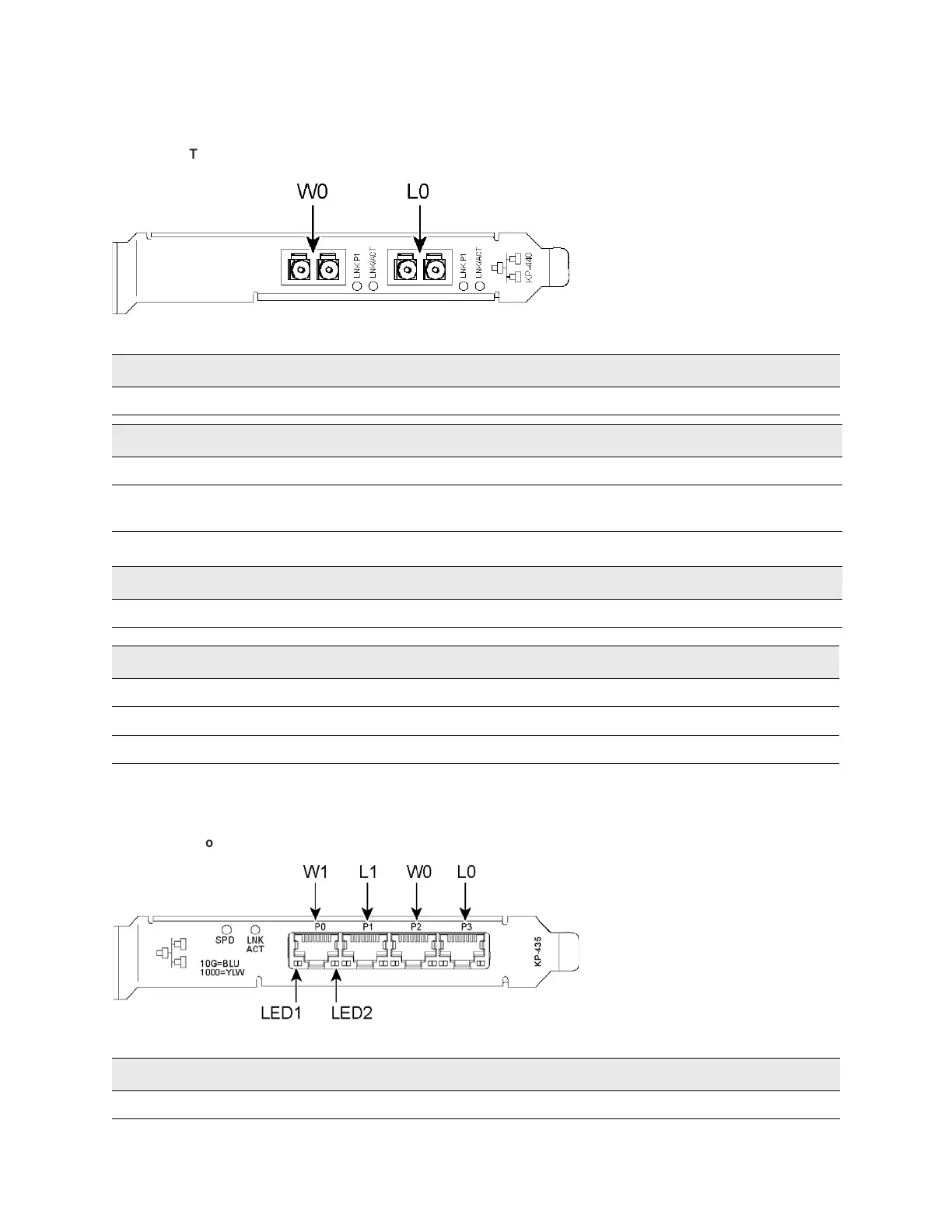

Network Interface Cards Two-Port 10-GbE Fiber SFP+ card
Two-Port 10-GbE Fiber SFP+ card
Figure C-9.
Two-Port 10-GbE Fiber SFP+ card (NIC-1-010G-2SFPP)
Four-Port 10-GbE Fiber SFP+ card
Figure C-10.
Four-Port 10-GbE Fiber SFP+ card (NIC-1-010G-4SFPP)
Port Description
P0, P1 Provides access to 10/100/1000 Base-TX
LED Description
Speed green
Link/Activity Link = green
Activity = blinks
Specification Definition
Connectors Two small form factor pluggable (SFP+) cage
SFP Manufacturing Part # Orderable Part #
SFP 1-GbE LX 410-00140-01 TRC-1-SFP-LX
SFP+ 10-GbE SR 410-00143-01 TRC-1-SFPP-SR
SFP+ 10-GbE LR 410-00144-01 TRC-1-SFPP-LR
Port Description
P0, P1, P2, P3 Provides access to 10/100/1000 Base-TX
