82 SteelFusion Edge Hardware and Maintenance Guide
Network Interface Cards Two-Port 1-GbE Fiber SX card
Two-Port 1-GbE Fiber SX card

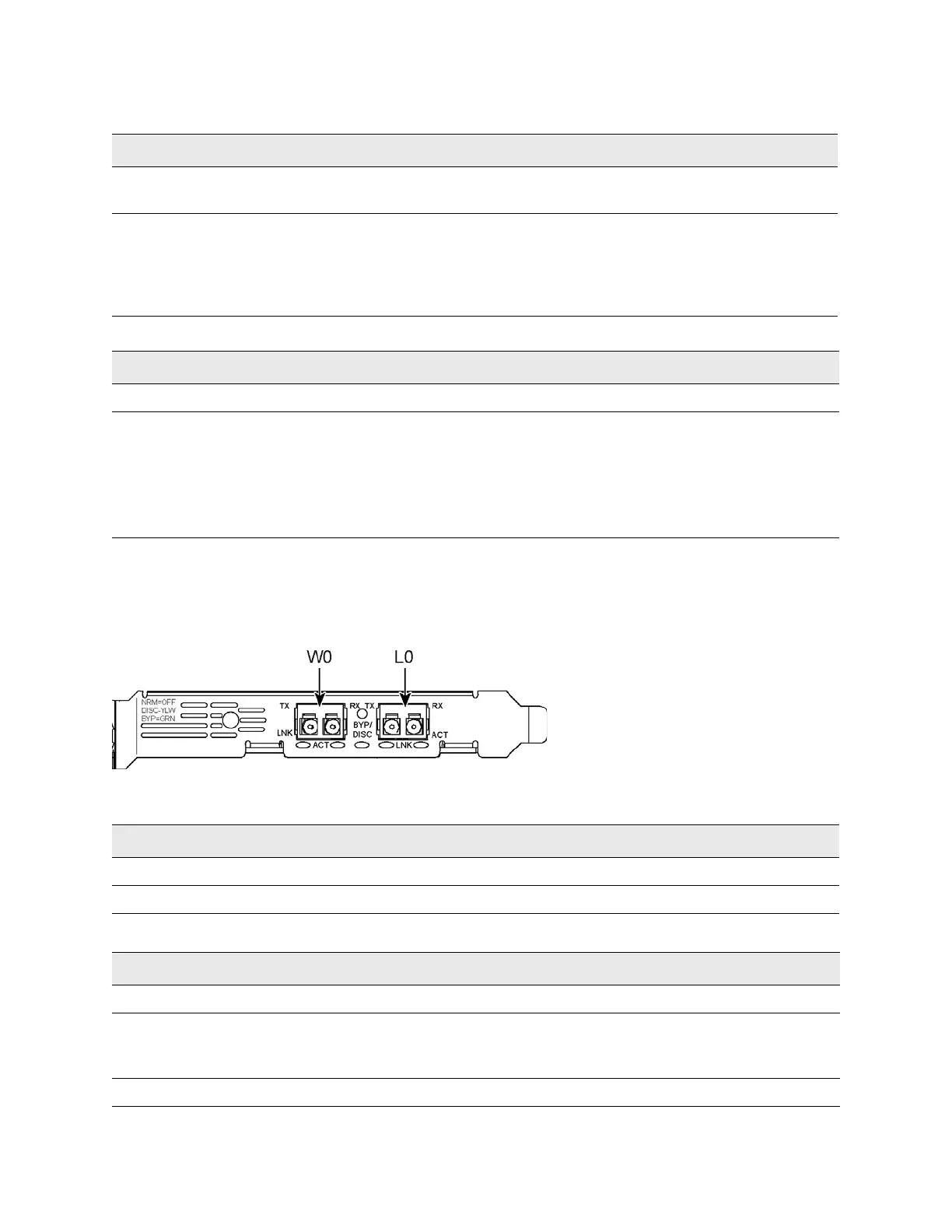

Figure C-2. Two-Port 1-GbE Fiber SX card (NIC-1-001G-2SX-BP)
LED Definitions
LINK/ACT
(LED1)
Link = green
Activity = blinks green
BYP/DISC SPD
(LED2)
1000 Mbit/s = yellow
100 Mbit/s = green
10 Mbit/s = off
Bypass = blinks green
Disconnect = blinks yellow
Specification Descriptions
Connectors Four shielded RJ-45
Cables and operating distance 10 Base-T Category 3, 4, or 5 maximum 50m *
100 Base-TX Category 5 maximum 50m *
1000 Base-T Category 5E maximum 50m *
*Theoretical Distance – Defined as half a distance as stated by the IEEE
802.3 standard
Port Description
TX, RX Input and output data
L0, W1 Provides access to 10/100/1000 Base-TX
LED Definition
ACT Activity = blinks green
BYP/DSC Normal = off
Disconnect = yellow
Bypass = green
LNK Link = yellow
