Mounting the SteelFusion Edge appliances using the extendable rail Rack Mounting the SteelFusion Edge Appliances
4. Pull the release tabs on both of the inner rails and push the appliance all the way into the rack. (See
Figure 2-4.)

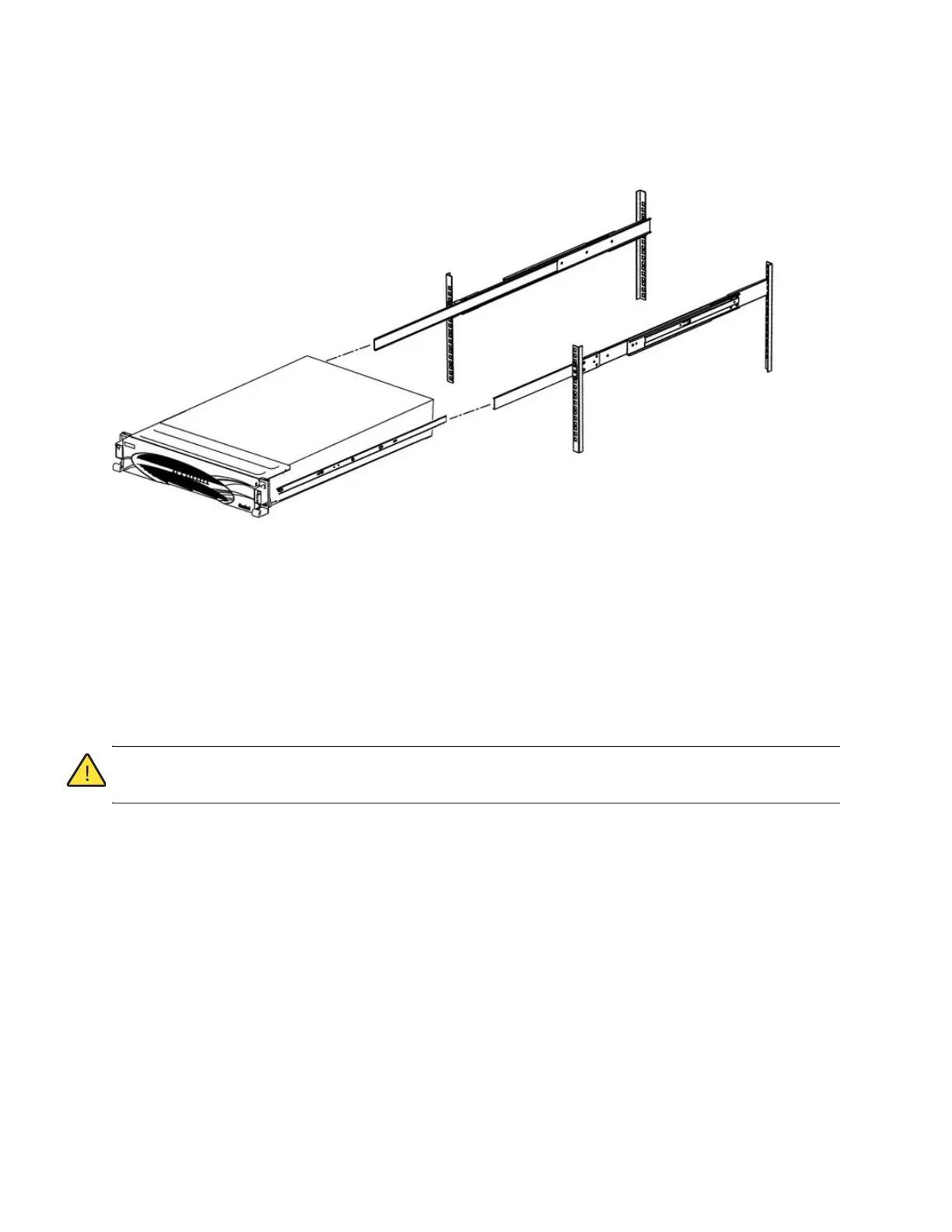

Figure 2-4. Sliding the appliance into the rack and pulling the inner rail release tab
Operating the rails
To operate the rails, follow these guidelines:
To pull the appliance from the rack without removing it, pull it until it stops.
To remove the appliance from the rack, push the release tab and remove the appliance.
To push the appliance back into the rack, use the inner rail release tab shown in Figure 2-4.
Caution: Use caution when the appliance is mounted in a rack and the outer rails are extended; do not place objects
or additional weight on the appliance.
Center mounting 1U appliances in a two-post rack
You can mount 1U appliances in a two-post rack in the center-mount position.
Note: 2U appliances cannot be mounted to a two-post rack.
