18 SteelFusion Edge Hardware and Maintenance Guide
SteelFusion Edge Overview Field Replaceable Units
2U SteelFusion Edge LEDs
This section describes the ports and LEDs for the SteelFusion Edge 3100, SteelFusion Edge 3200, and
SteelFusion Edge 5100 appliances. Figure 1-8 shows the LEDs for the 2U SteelFusion Edge appliances.

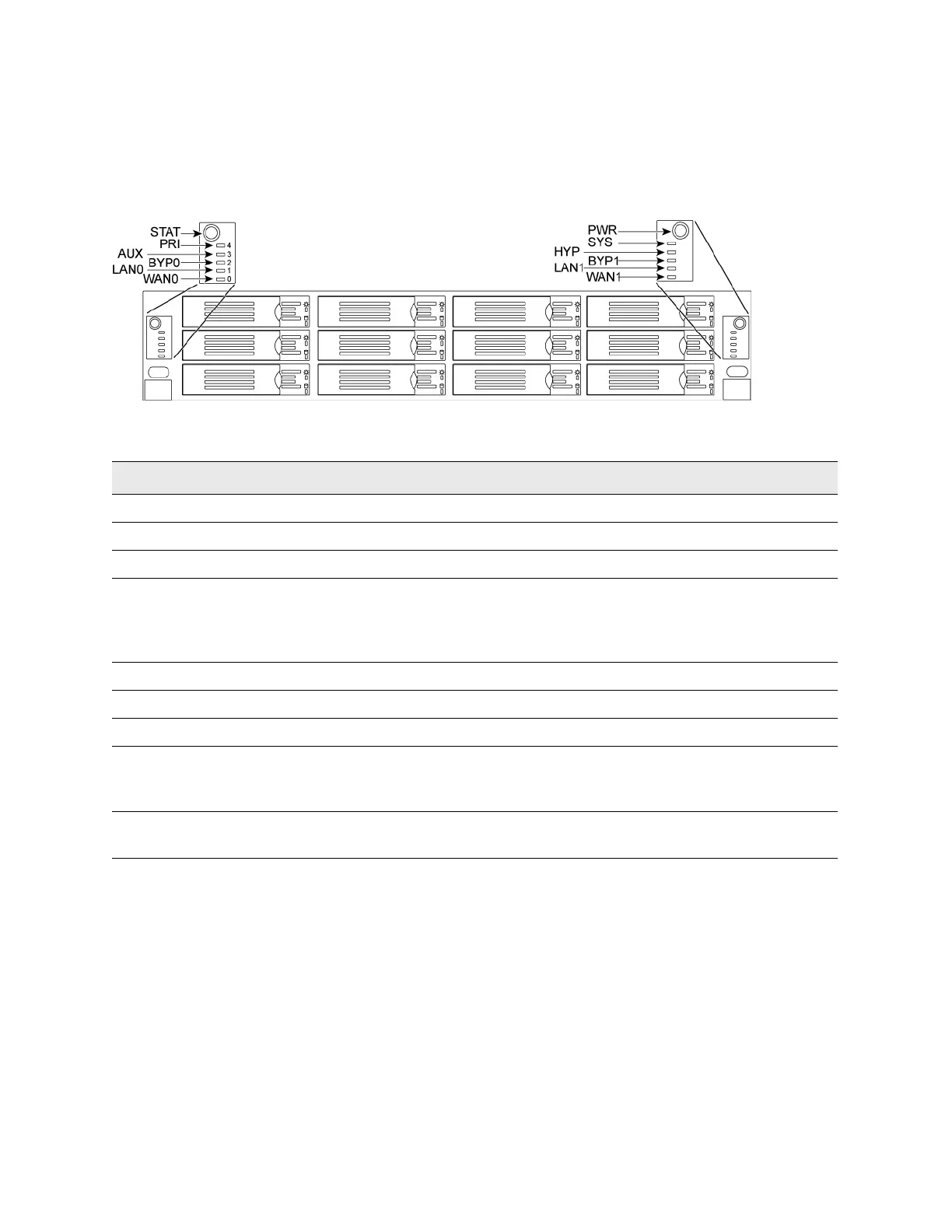

Figure 1-8. 2U
SteelFusion Edge LEDs (front view)
The following table summarizes the LEDs and buttons.
Field Replaceable Units
The SteelFusion Edge appliances contain several units that you or a certified service technician can
troubleshoot, remove from the system, and replace without having to send the system to a repair
facility.
LEDs and buttons Status
STAT (Status) Button (not an LED)
PRI (Primary) Link and traffic = blinks blue
AUX (Auxiliary) Link and traffic = blinks blue
BYP/BLK
BYP (Bypass)
BLK = (Block)
(Disconnect)
Normal = no light
Bypass or block (disconnect) = solid orange
LAN Link and traffic = blinks blue
WAN Link and traffic = blinks blue
PWR (Power) Button (not an LED)
SYS (System) Powering up = solid red
BIOS POST = solid orange
Normal = blue
HYP (Hypervisor) Hypervisor on = solid blue
Hypervisor off = no light
