84 SteelFusion Edge Hardware and Maintenance Guide
Network Interface Cards Four-Port 1-GbE Fiber LX card
Four-Port 1-GbE Fiber LX card

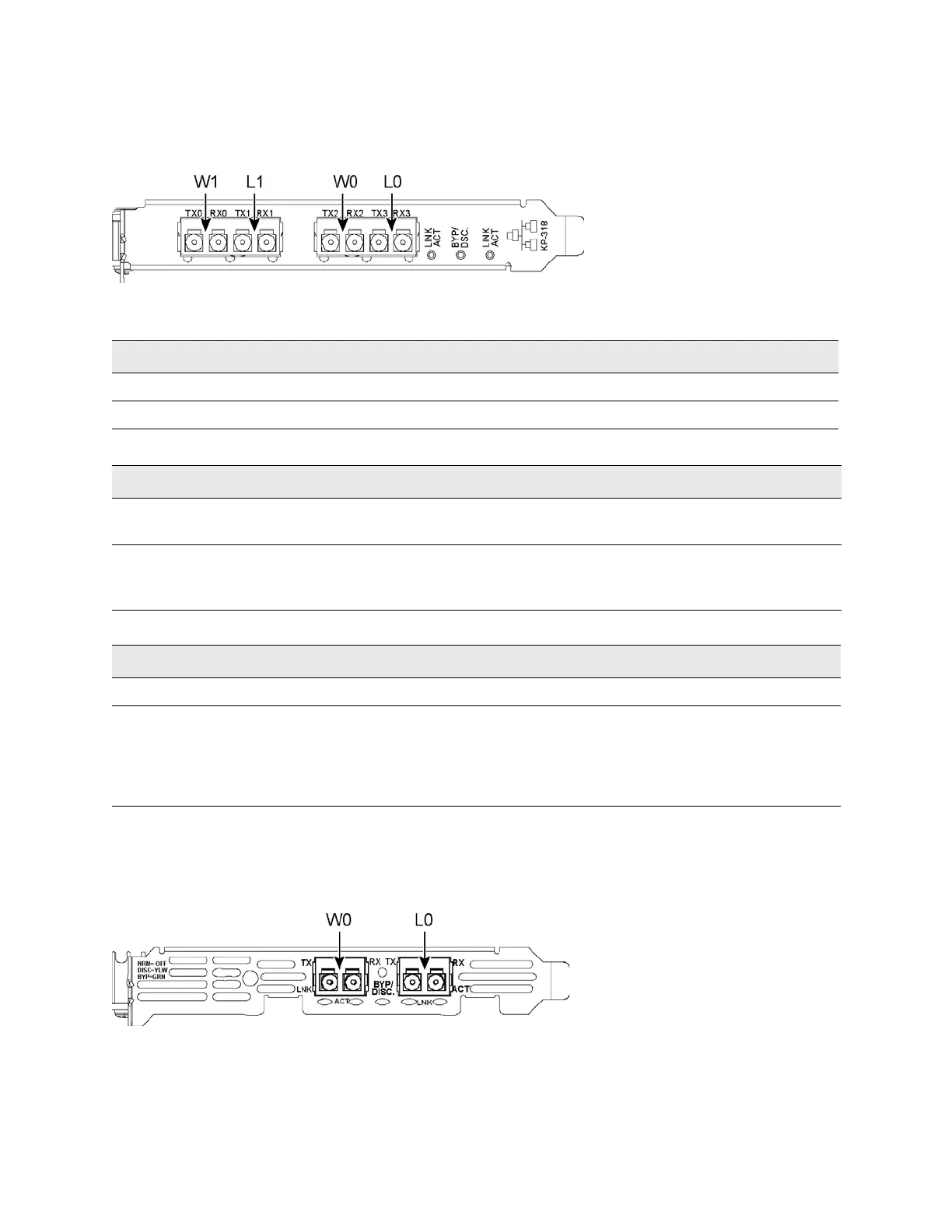

Figure C-4. Four-Port 1-GbE Fiber LX card (NIC-1-001G-4LX-BP)
Two-Port 10-GbE Fiber SR card
Figure C-5. Two-Port 10-GbE Fiber SR card (NIC-1-010G-2SR-BP)
Port Description
TX0, TX1, TX2, TX3 Output data
RX0, RX1, RX2, RX3 Input data
LED Definition
LINK/ACT Link = Green
Activity = Blinks green
BYP/DSC Normal = Off
Disconnect = Yellow
Bypass = Green
Specifications Description
Connectors Four small form factor (SFF) LC fiber connectors
Cables and operating
distance
Single mode fiber: 9 um
2500 m maximum at 9 um *
* Theoretical Distance - Defined as half a distance as stated by the IEEE 802.3
standard
