26 SteelFusion Edge Hardware and Maintenance Guide
Rack Mounting the SteelFusion Edge Appliances Mounting the SteelFusion Edge appliances using the extendable rail
To center mount appliances in a two-post rack
1. Attach the first bracket to the chassis with the three included screws. Select a position that centers
and balances the appliance on the bracket. (See Figure 2-5.)

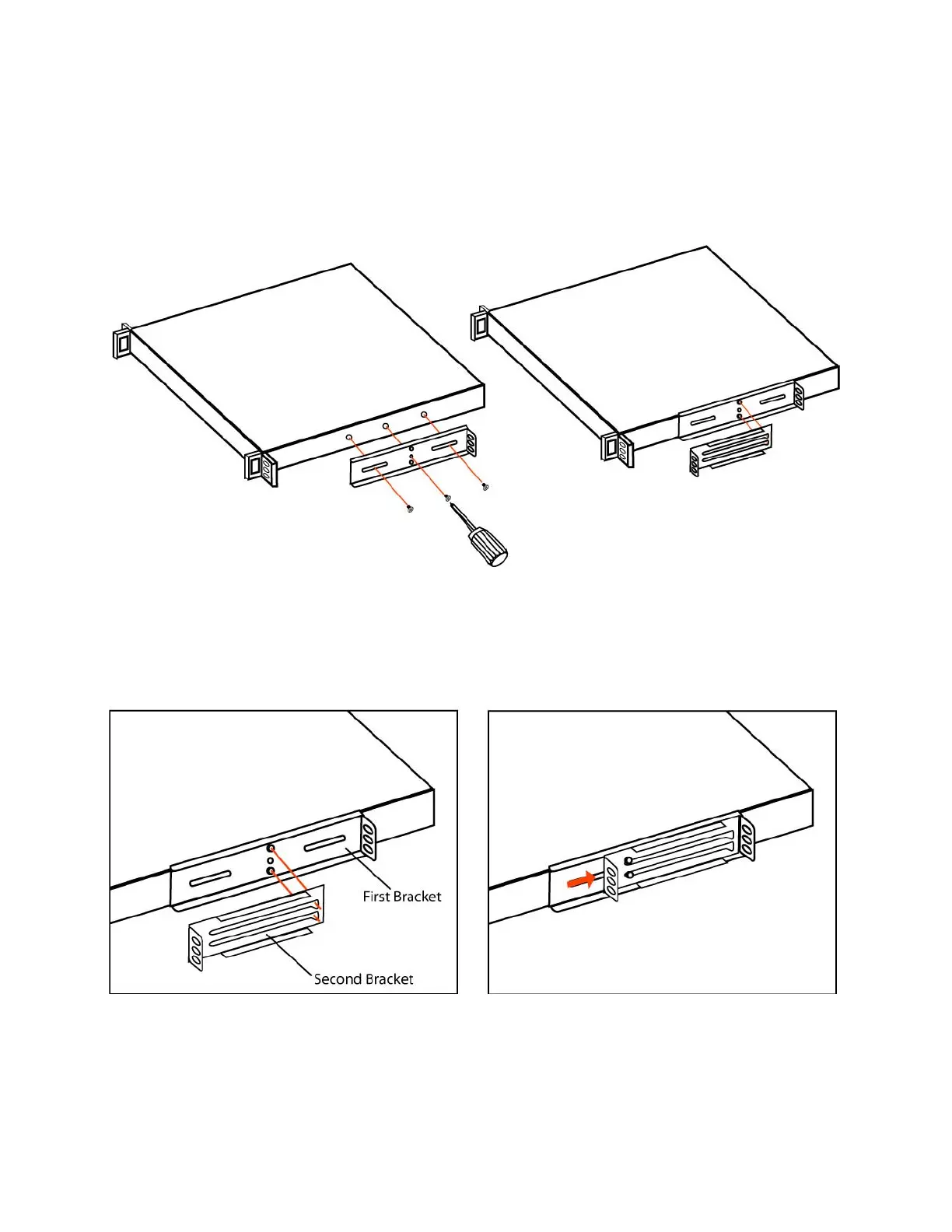

Figure 2-5. Attaching two-post center-mount brackets
2. Slide the second bracket onto the pegs of the first bracket by placing the second bracket over the
first bracket at the widest opening and then slide toward the narrower part to secure. (See
Figure 2-6.)
Figure 2-6. Attaching second bracket to first bracket
3. Repeat Steps 1 and 2 on the other side of the chassis.
4. Center mount the appliance in a two-post rack.
