SAFETY INFORMATION

ENG

2.9. PERIMETER AREAS

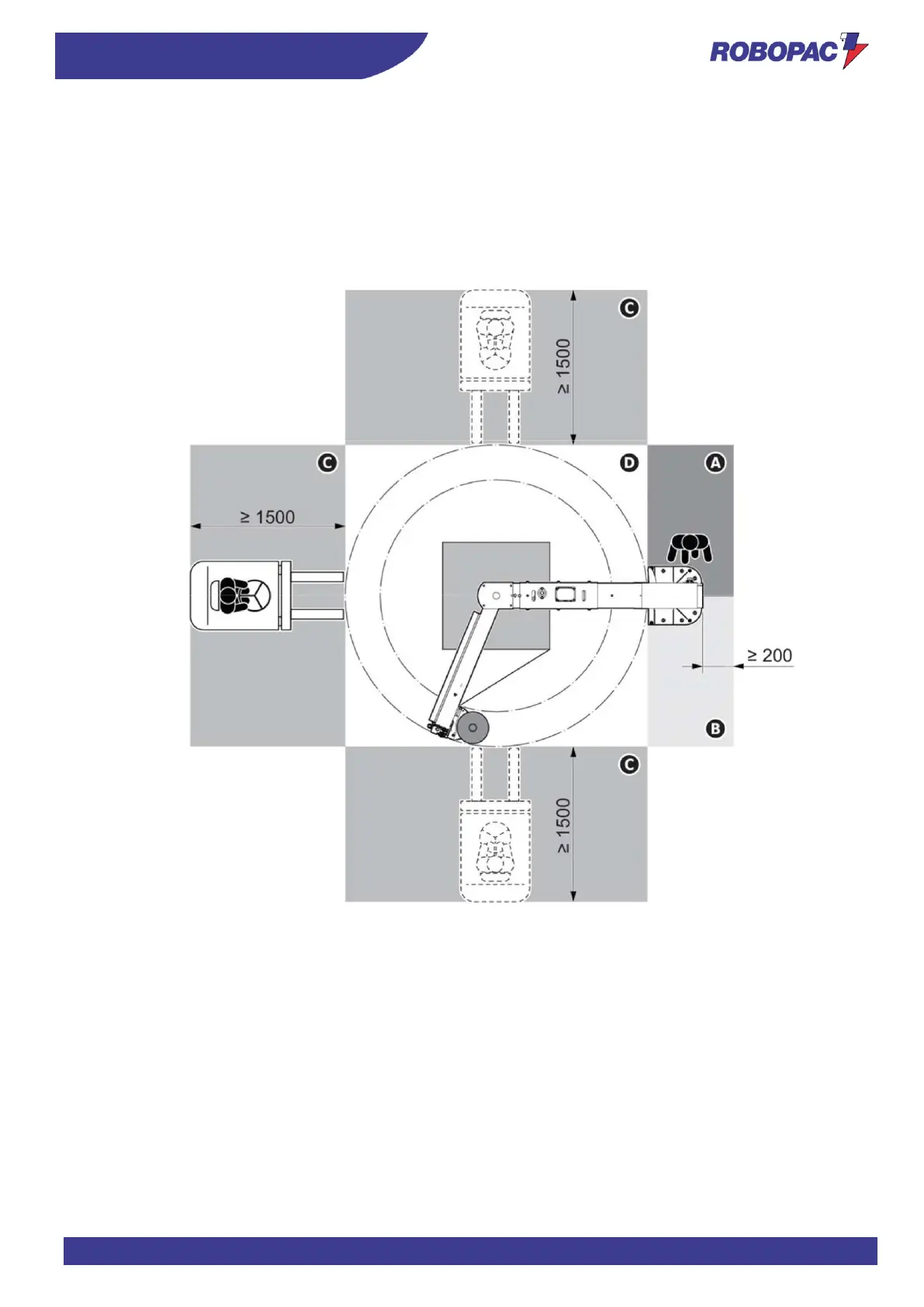

The illustration shows the perimeter working areas of the machine.

A) Operator standing area.

Reel refilling area.

B) Access area for maintenance.

C) Pallet loading/unloading area.

D) Machine operating area.
