INFORMATION ON HANDLING AND INSTALLATION
ENG
4.4.4. INSTALLATION OF STOP DEVICE FOR ROLL CONTAINER (OPTIONAL)

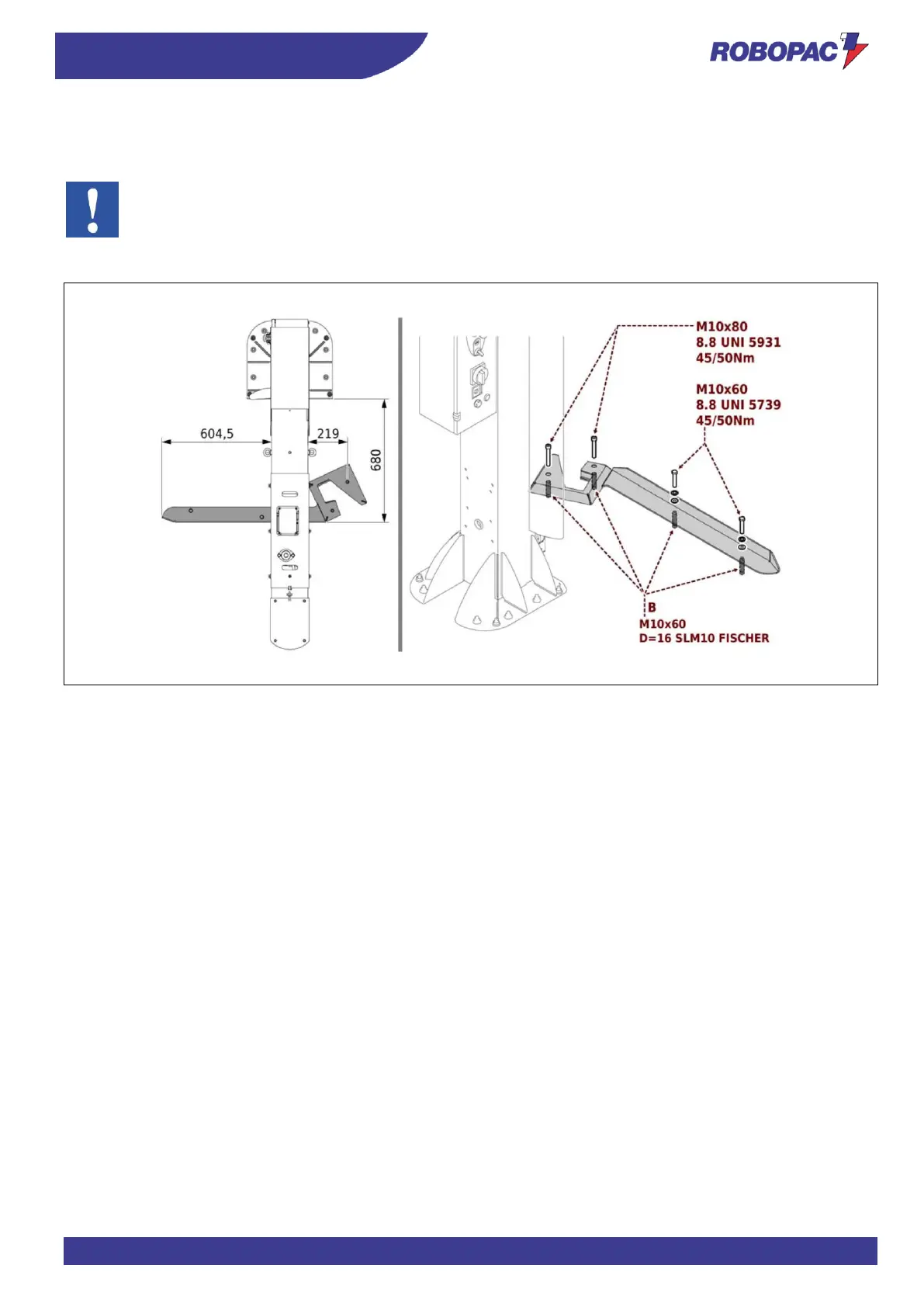

1. Position the stop device according to the shown diagram.
2. Drill the holes (ø16 x 70mm) on the floor in correspondence of the stop device fastening holes.
Important
Thoroughly clean the holes to eliminate any residual material.
3. Fix the stop device to the ground by means of plugs (B).
