TECHNICAL INFORMATION
23
3.1.1. MACHINE MODELS DESCRIPTION
Table: Film carriage features
Film carriage type
General features
FR
h = 500mm
Film carriage of “FR” type with roller with clutch, electromagnetic brake and film
stretch adjustment from control panel.
FRD
Film carriage of “FRD” type with roller with clutch, mechanical brake and manual
adjustment of film stretch.

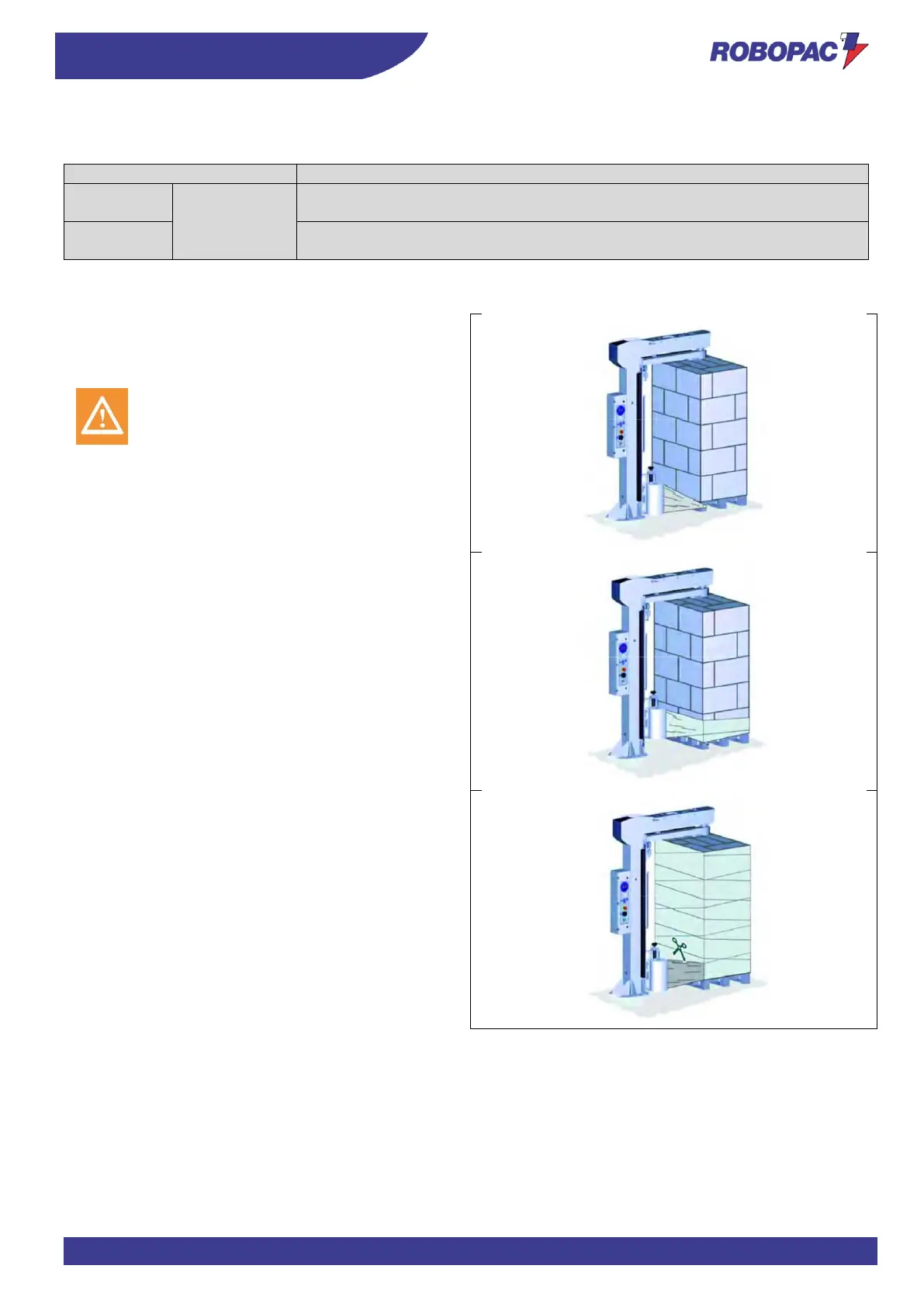

3.2. DESCRIPTION OF THE OPERATION CYCLE
Phase 1
The operator places the pallet in the centre of the
machine and hooks the film to it.
Caution - warning
Risk of crushing upper limbs: do not insert the
film in the clamp (if installed) by hand.
Phase 2
Once the cycle has started, the rotary arm starts to turn,
while the film carriage unwinds the film, according to pre-
set parameters.
Phase 3
Once the wrapping phase has ended, the machine stops
and manual film cutting is necessary.
Phase 4
The operator unloads the pallet.
The cycle is complete and the machine is ready to start
a new cycle.
