4.4.7. PALLET LIFTING FRAME INSTALLATION (OPTIONAL)
Important
Fit the longitudinal members (A) according to the pallet used.

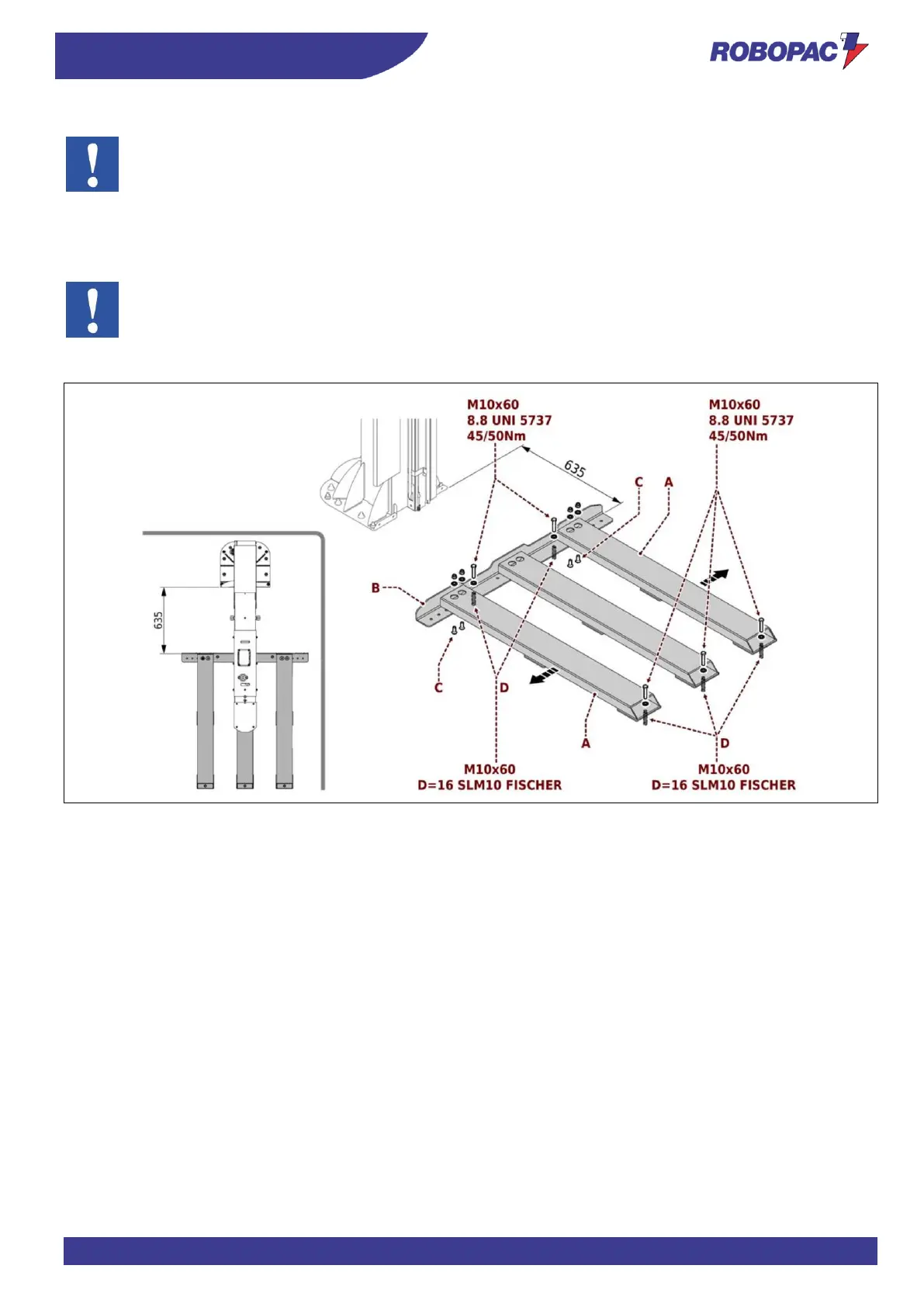

1. Assemble the frame according to the pallet size: fasten the longitudinal members (A) to the front bracket (B)
through the screws (C).
2. Position the frame according to the shown diagram.
3. Drill the holes (ø16 x 70mm) on the floor in correspondence of the frame fastening holes.
Important
Thoroughly clean the holes to eliminate any residual material.
4. Fix the frame to the ground by means of plugs (D).
