INFORMATION ON HANDLING AND INSTALLATION
4.5. RECOMMENDATIONS FOR CONNECTIONS
Important
The connections must be made in accordance with the specifications supplied by the Manufacturer in
the enclosed diagrams. The person authorised to carry out said operation must have the skills and
experience acquired and acknowledged in the specific sector, must perform the connection in
accordance with the best practice and take into account all the regulatory and legislative requirements.
Once the connection has been completed, before commissioning the machinery, it is necessary to
perform an overall check to verify if said requirements have been complied with.
4.6. ELECTRICAL CONNECTION
Proceed as follows for the electrical connection.
1. Check that the line voltage (V) and frequency (Hz) correspond to those of the machine (See identification plate
and wiring diagram).
2. Turn main switch to pos. 0 (OFF).

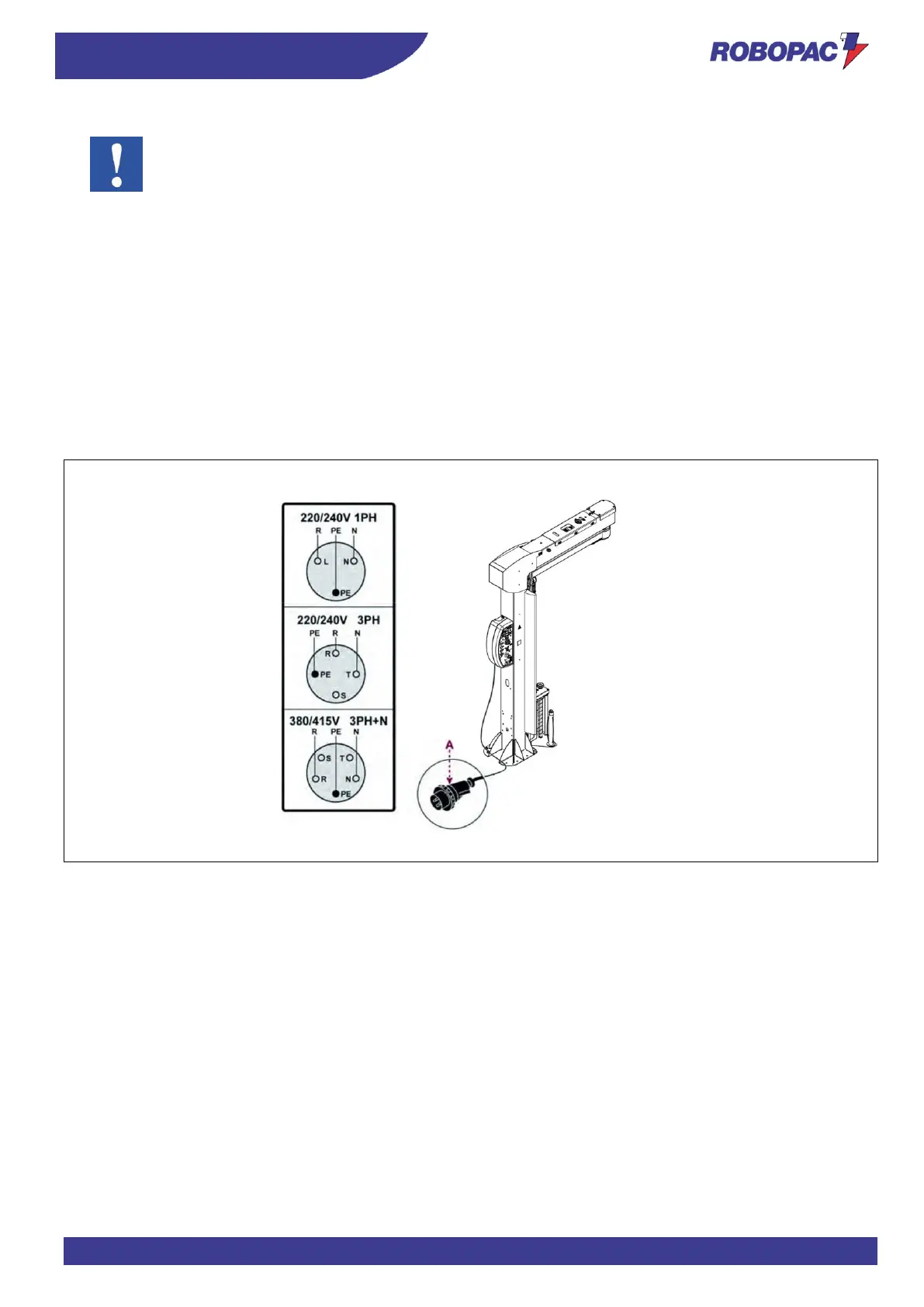

3. Connect the power cable to the socket (A), as shown in the figure, in accordance with the mains supply.
4. The earth wire (yellow–green) must be connected to its earth terminal PE.
