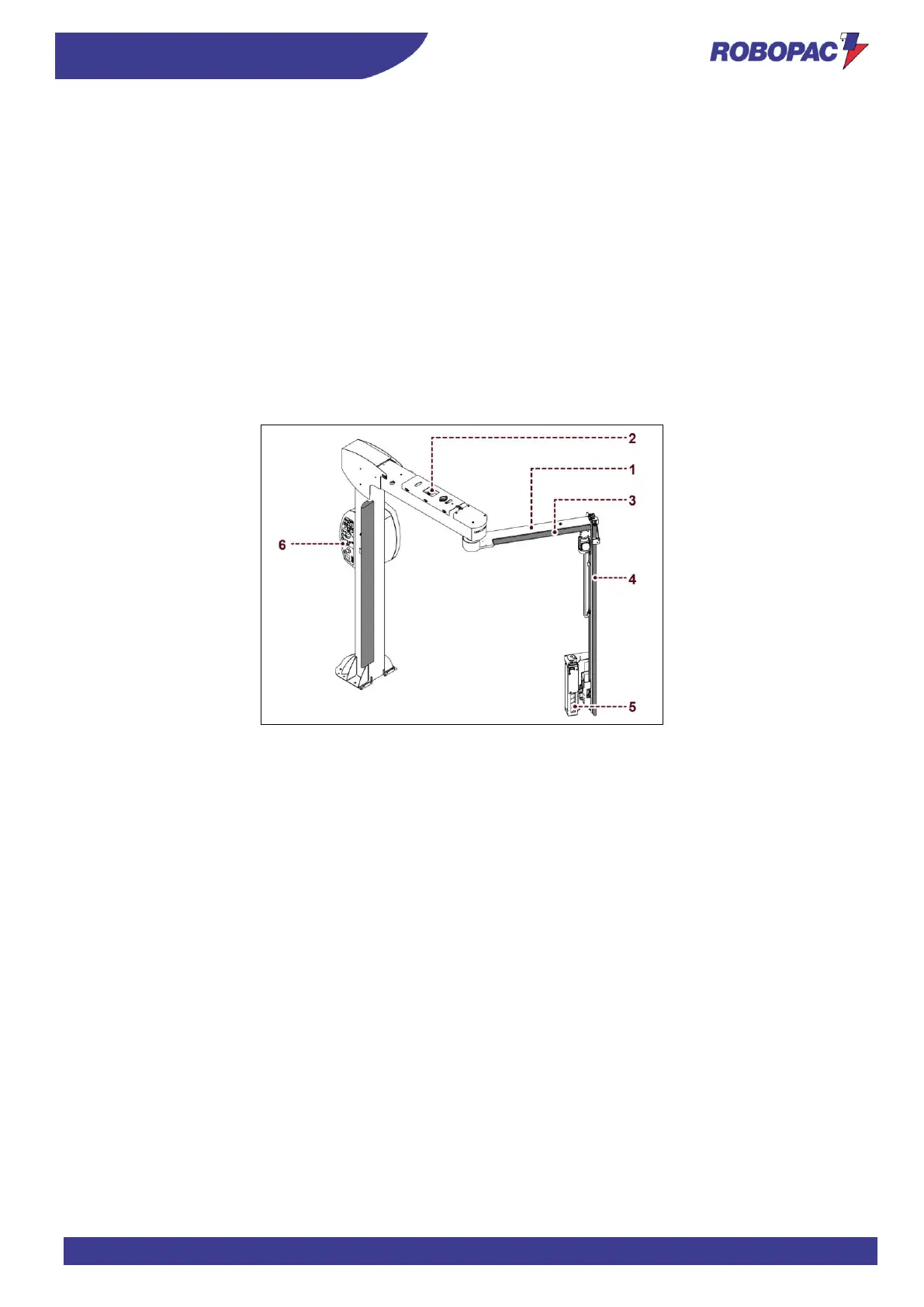

The illustration shows, for information purposes only, the machine models, and the legend lists the parts.
Legend:
1. Rotary arm
It allows the film carriage to rotate around the pallet.
2. Arm motor
The motor drives the rotation of the arm.
The gearmotor is equipped with brake that keeps the arm locked when stopped in synchronised manner.
3. Safety sensible edge
It stops the rotation in case of impact with people and/or objects placed in the range of action of the arm.
4. Safety sensible edge
It stops the rotation in case of impact with people and/or objects placed in the range of action of the arm.
5. Film carriage
It comprises a reel support that moves vertically to wrap the product.
6. Control panel
It allows activating machine functions.
