TECHNICAL INFORMATION

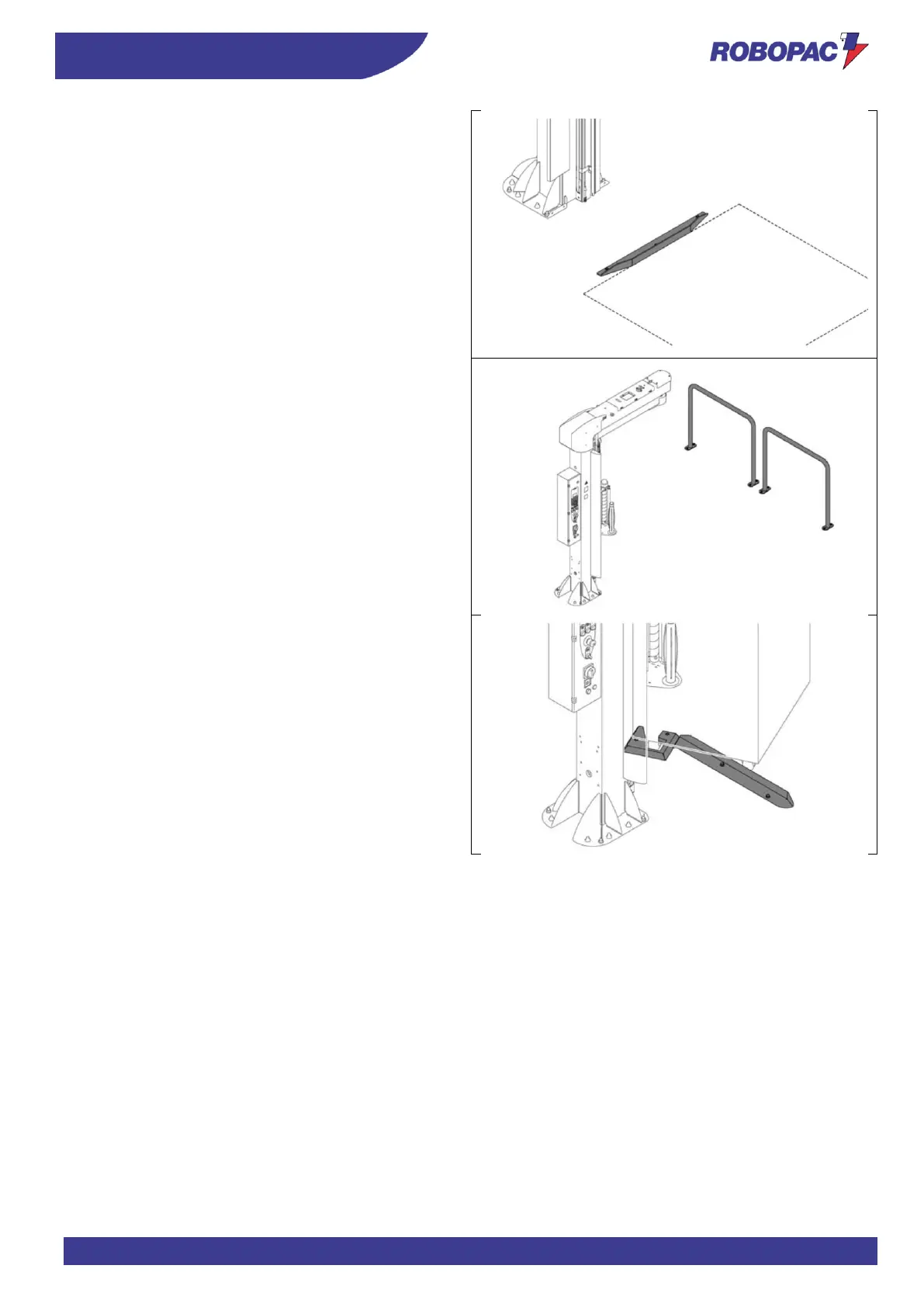

6. Longitudinal stop device:

Reference device for pallet positioning.

7. Work area delimitation barrier

Device to install near the machine to divide the work

area from the transit area.

8. Roll container stop device:

Device that allows the correct positioning of the roll

containers in front of the machine.
