Rockwell Automation Publication 5069-UM003B-EN-P - January 2020 101
Compact 5000 I/O Serial Module Configuration Chapter 4

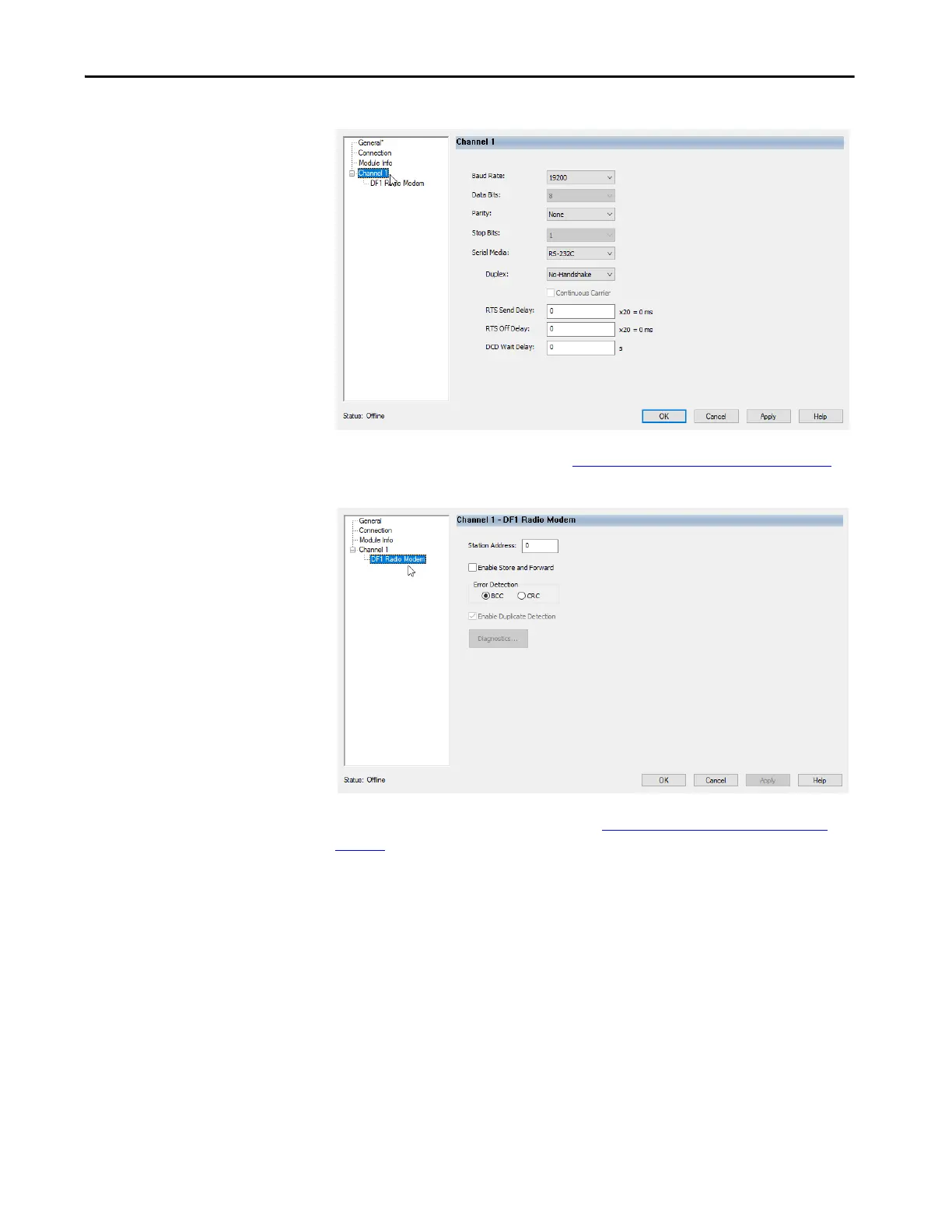

Figure 52 - Channel Parameters
For module function definitions, see Common Module Functions on page 30
Figure 53 - Transmission Settings
For DF1 Master function definitions, see DF1 Radio Modem Parameters on
page 67
