Rockwell Automation Publication 2711R-UM001H-EN-E - April 2021 133
Appendix E Using PanelView 800 Terminals with CompactLogix 5370 Controllers

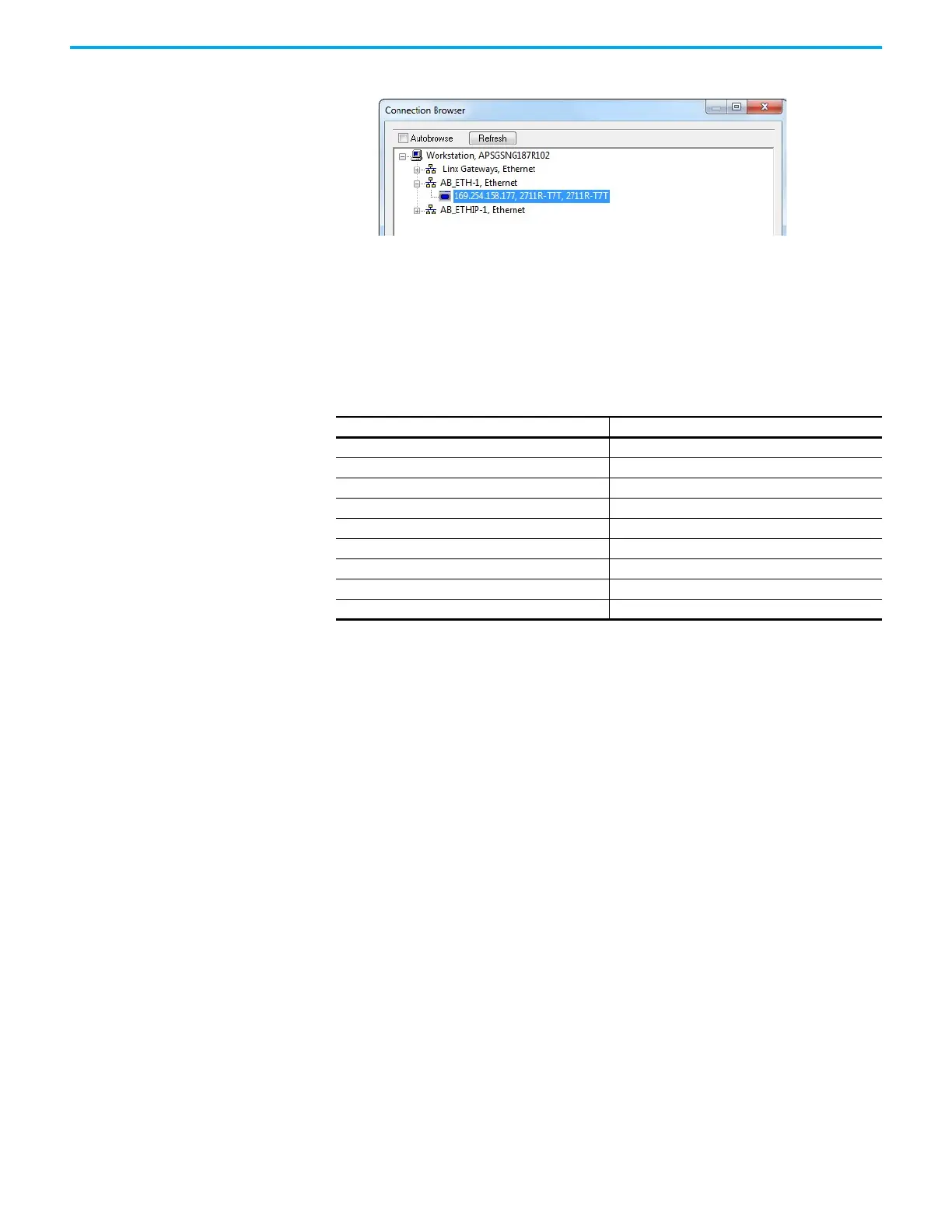

The Connection Browser dialog box appears.
2. Select the terminal that you want to upload the application from, then
click OK.
CompactLogix 5370
Controller Addressing
The atomic data types supported in CompactLogix 5370 controllers by
PanelView 800 terminals are shown in the table below.
Although some of the predefined types are structures, they are ultimately
based on these atomic data types. Thus, all non-structure (atomic) members of
a structure are accessible.
For example, a TIMER cannot be assigned as a PanelView 800 tag but an
atomic member of the TIMER can be assigned to the tag (for example,
TIMER.EN, TIMER.ACC, and so forth).
If a structure member is a structure itself, both structures would have to be
expanded to access an atomic member of the substructure. This is more
common with user-defined and module-defined types and is not found in any
of the predefined types.
In summary, predefined, module-defined, and user-defined data types of the
CompactLogix 5370 controller can be accessed from PanelView 800 terminals
from their respective members, which are based on the above atomic data
types
The LINT data type is not supported in CompactLogix 5370 controllers.
Supported Data Types
CompactLogix 5370 Data Types PanelView 800 Data Types
SINT 8-bit integer
INT 16-bit integer
DINT 32-bit integer
REAL Real (Range: -9999999...9999999)
BOOL Boolean
STRING STRING
8-bit unsigned integer
16-bit unsigned integer
32-bit unsigned integer
