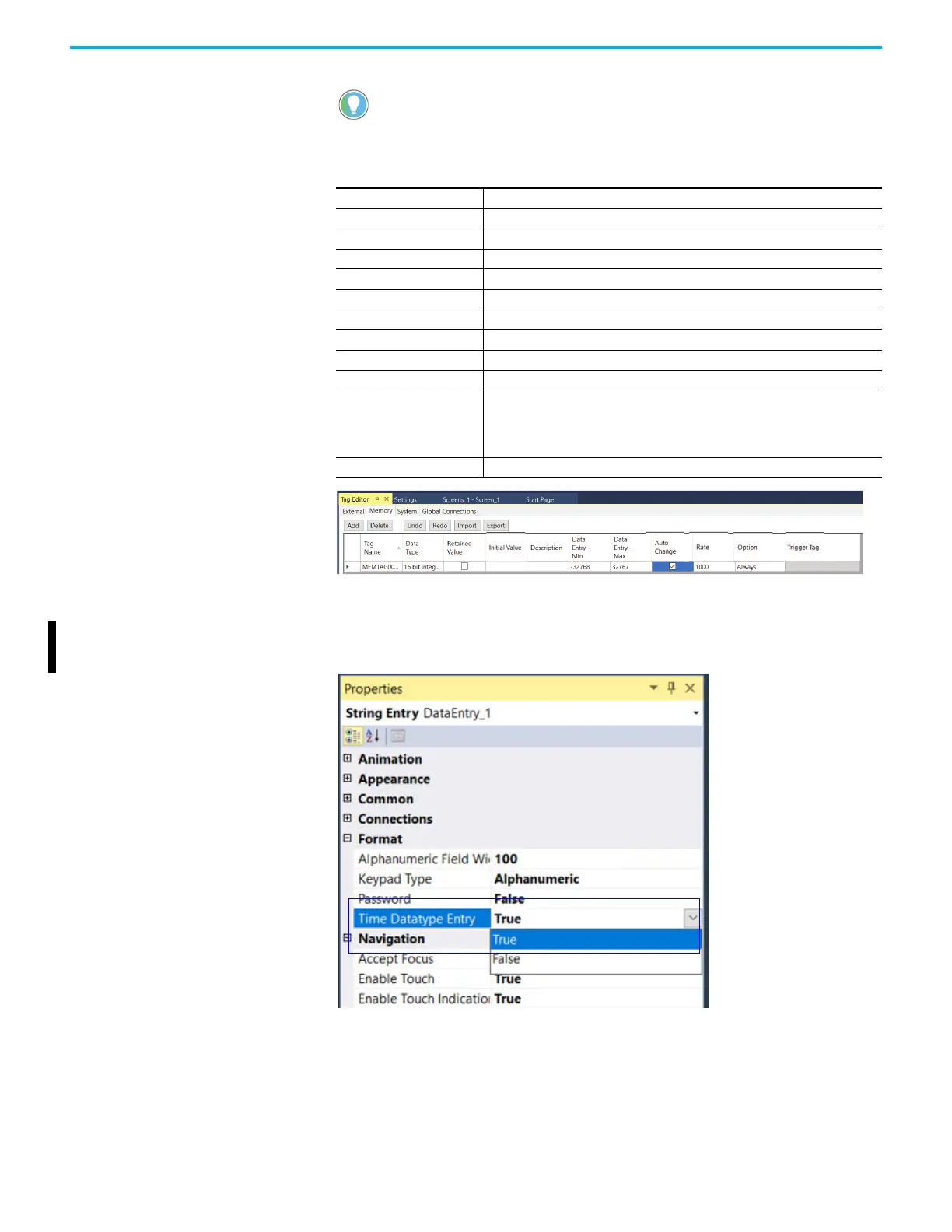

74 Rockwell Automation Publication 2711R-UM001H-EN-E - April 2021
Chapter 3 DesignStation in Connected Components Workbench Software
Time Entry Data Type
Support
Connected Components Workbench software version 13 or later adds support
for the Time data type for Micro800 controllers.
To use Animation With Tag, Connected Components Workbench software version
13 or later adds parameters to memory tags to enhance object animation. See
help file for more information on memory tags.
Memory Tags Parameters
Parameter Value
Tag Name Name of Memory tag.
Data Type 16-bit integer
Retained Value Retains most recent value when application is shutdown
Initial Value Defines the coordinates of the starting position.
Description Enters a description for the Memory tag
Data Entry - Min -32768
Data Entry - Max -32767
Auto Change Select to enable automatic update of value based on the rate of change configured.
Rate Defines the rate if change for automatic updates, in milliseconds. Min value is 1000 ms.
Option
Trigger type for the Memory tag:
•Always
Trigger Start
Trigger Start and Stop
Trigger Tag Assign a tag to trigger this Memory tag
