Rockwell Automation Publication 2711R-UM001H-EN-E - April 2021 55
Chapter 3 DesignStation in Connected Components Workbench Software

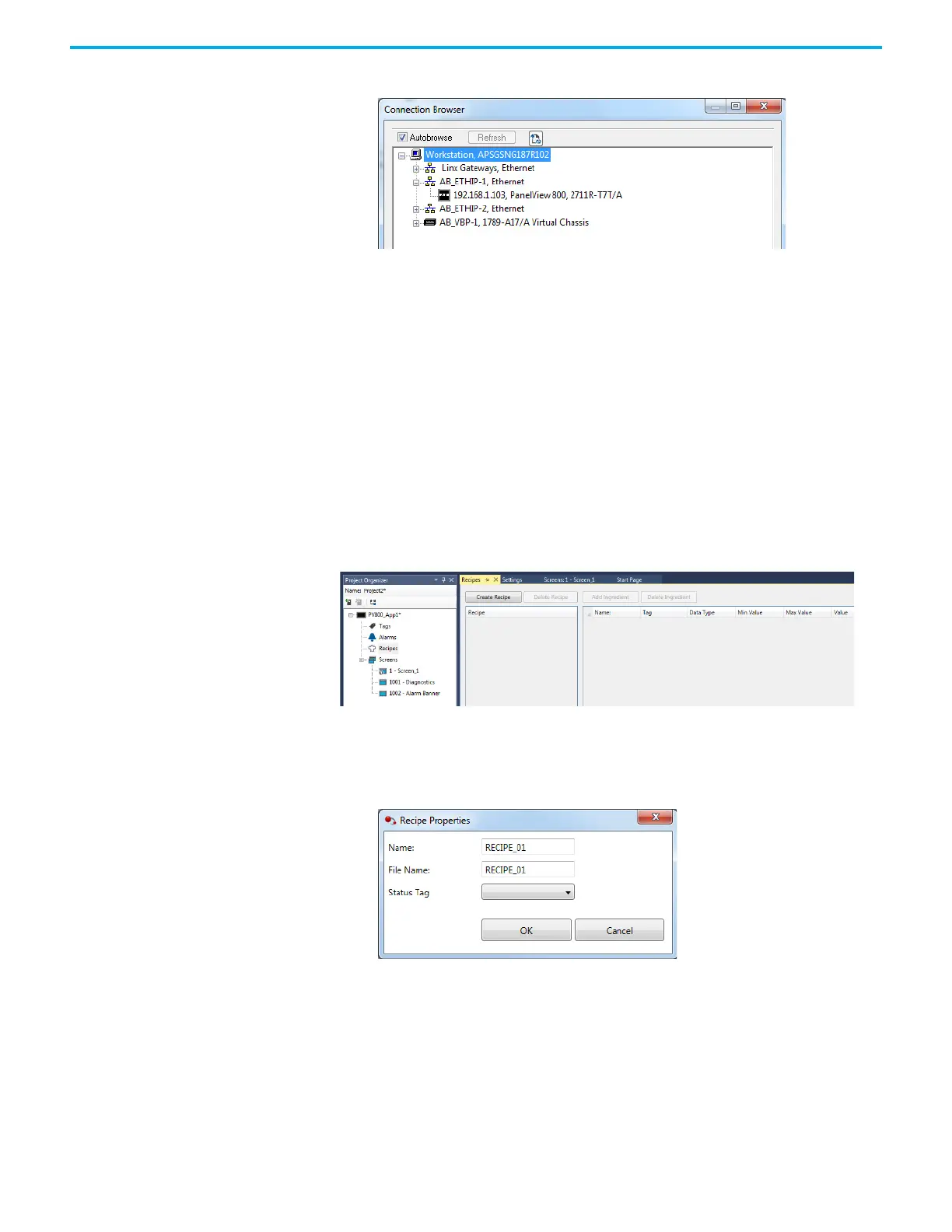

The Connection Browser dialog box appears.
2. Select the terminal that you want to upload the application from, then
click OK.
3. Select an application from the list.
4. Click OK.
Create Recipes Recipes are created using Connected Components Workbench software and
each PanelView 800 terminal application supports up to 50 recipes. Each
recipe contains a list of ingredients (up to 50), each with its own tag, and one
data set. A data set pairs values with each ingredient.
Follow these steps to create a recipe in Connected Components Workbench
software.
1. In the Project Organizer, double-click Recipe to open the Recipe tab.
2. Click Create Recipe to add a recipe to the recipe list.
A recipe is added to the list. The default name is RECIPE_01.
3. You can change the Recipe Name and Recipe Filename by clicking the
Recipe Details button next to the Recipe.
